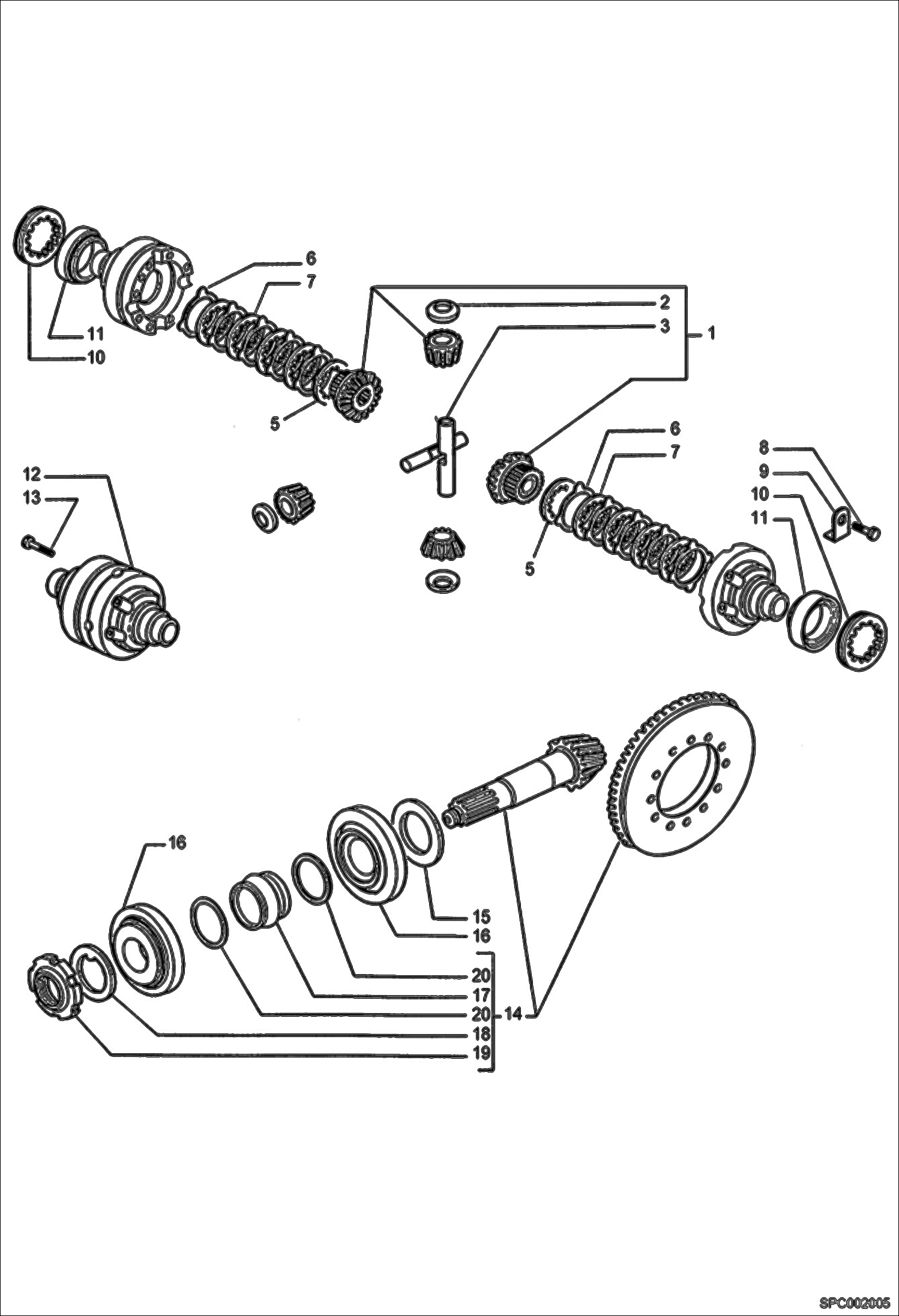

Запчасти Bobcat T40140 DIFFERENTIAL - FRONT AXLE DRIVE SYSTEM

1

89957.5

Differential, Complete

2

100485-56T

WASHER

3

100485-55S

PIN See 89957.4

5

64855.0

Disc

6

64856.8

Counter Disc

7

75774.0

Disc Was 64857.6

8

66048.0

Screw

9

75793.0

Plate

10

100345-40J

COLLAR

11

00909.2

Bearing Was 000398-08U

12

92601.4

Housing

13

100338-39W

SCREW

14

75778.1

Bevel Gear

15

75779.9

Shim 2.50mm 2,50 mm - Thickness 2.50 mm

15

75780.7

Shim 2.60mm 2,60 mm - Thickness 2.60 mm

15

75781.5

Shim 2.70mm 2,70 mm - Thickness 2.70 mm

15

75782.3

Shim 2.80mm 2,80 mm - Thickness 2.80 mm

15

75783.1

Shim 2.90mm 2,90 mm - Thickness 2.90 mm

15

75784.9

Shim 3.00mm 3,00 mm - Thickness 3.00 mm

15

75785.6

Shim 3.10mm 3,10 mm - Thickness 3.10 mm

15

75786.4

Shim 3.20mm 3,20 mm - Thickness 3.20 mm

15

75787.2

Shim 3.30mm 3,30 mm - Thickness 3.30 mm

15

75788.0

Shim 3.40mm 3,40 mm - Thickness 3.40 mm

16

07187.8

Bearing

17

101288-39H

SPACER

18

100348-06X

WASHER

19

100345-37F

NUT

20

64851.9

Washer
