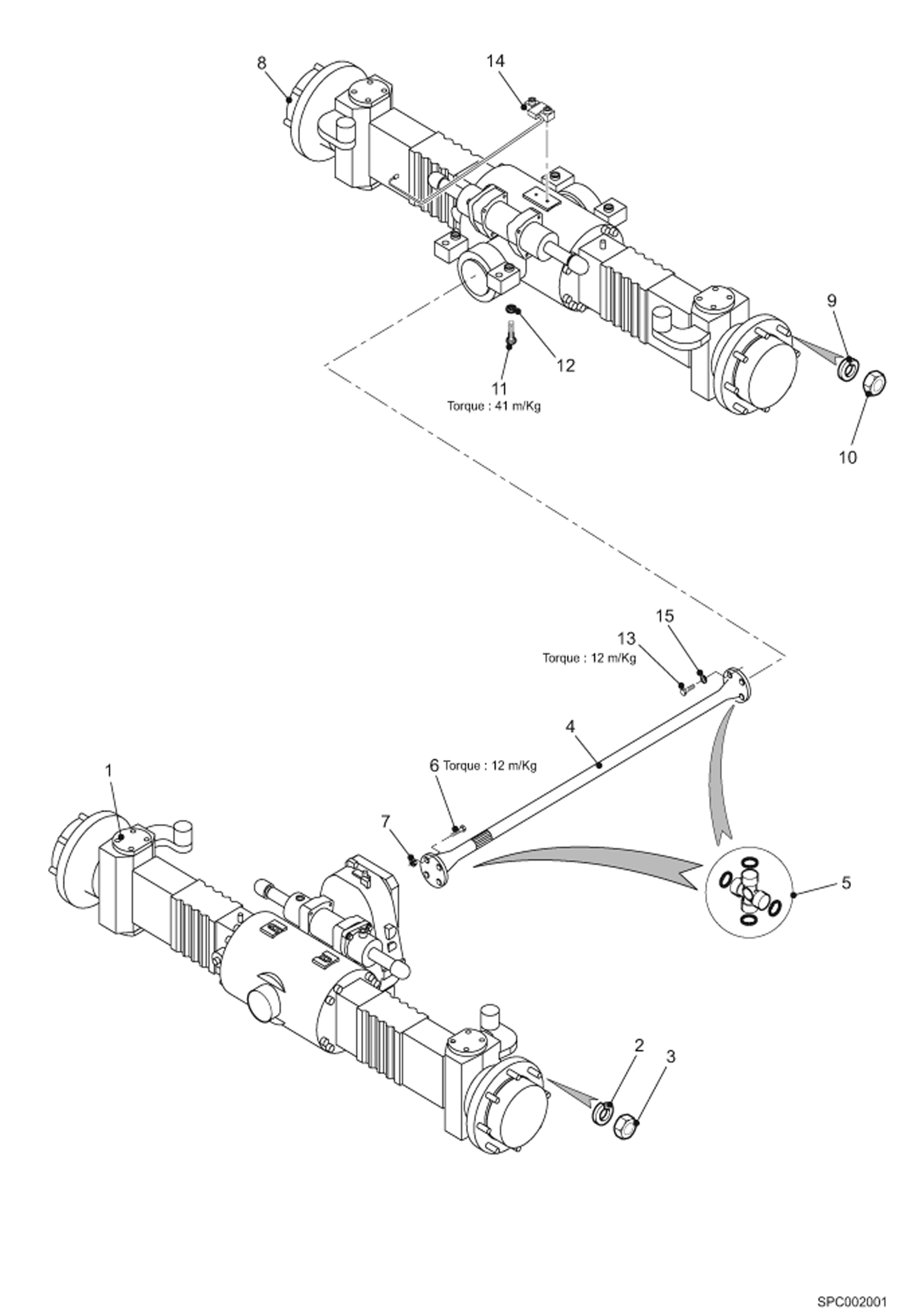

Запчасти Bobcat T40140 AXLE INSTALLATION DRIVE SYSTEM

1

89269.5

Front axle assy See Illustration HOUSING - FRONT AXLE/ SPC002004

2

100349-02C

WASHER

3

100345-41K

NUT

4

84169.2

Cardan shaft See Illustration CARDAN SHAFT/ SPC002002

5

75658.5

U-joint

6

100338-15V

SCREW

7

100345-11C

NUT

8

97762.9

Rear axle assy See Illustration HOUSING - REAR AXLE/ SPC002009

9

100349-02C

WASHER

10

100345-41K

NUT

11

13766.1

Screw

12

89517.7

Washer

13

66425.0

Screw

14

6914109

SENSOR, LOAD

15

89517.7

Washer
