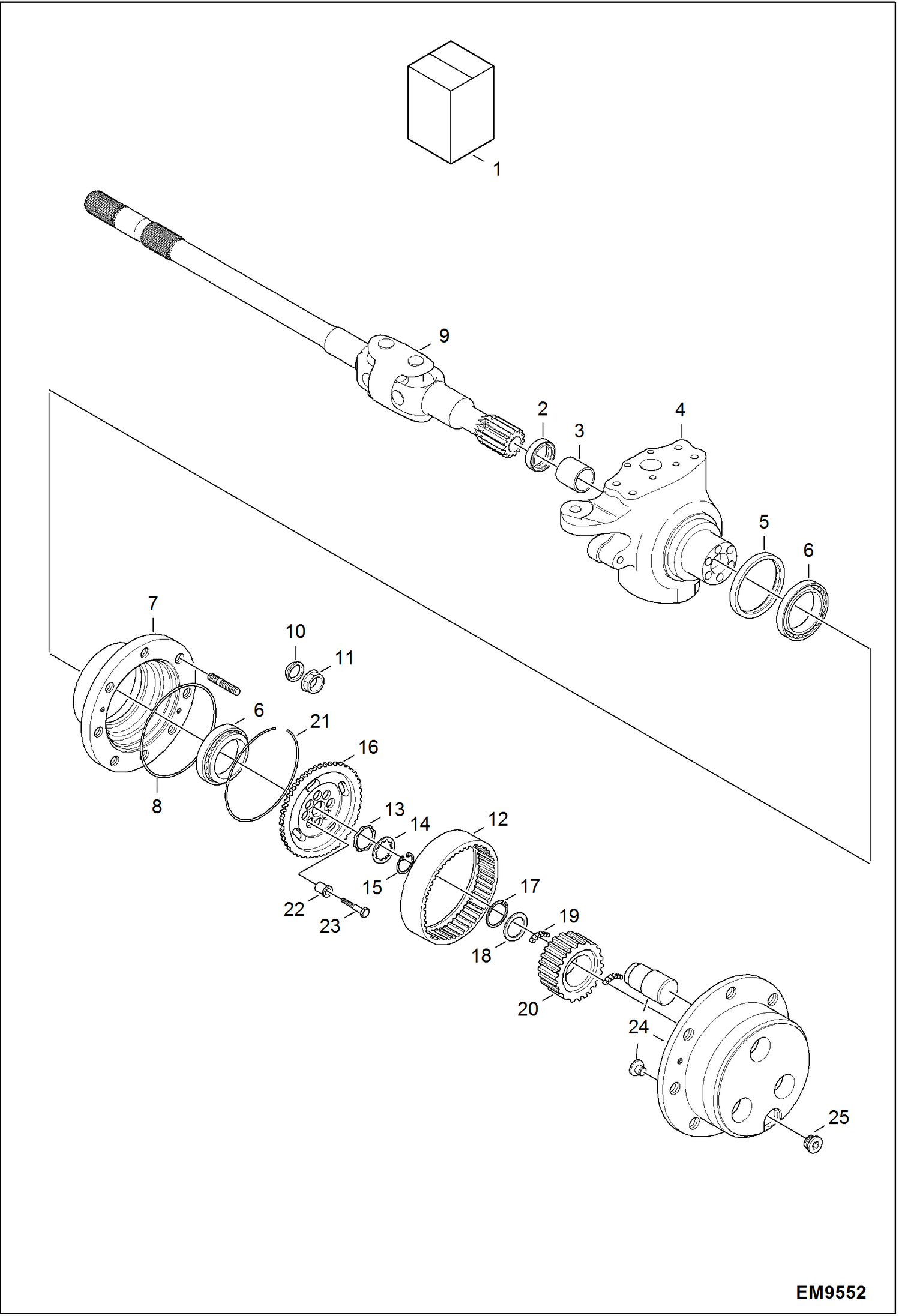

Запчасти Bobcat T40140 PLANETARY REDUCER KIT (Front Left, Rear Right) ACCESSORIES & OPTIONS

1

6912574

PLANETARY REDUCER KIT Ref. 2-25

2

97411.3

Seal

3

75719.5

Bush

4

97409.7

Pivot

5

97414.7

Seal

6

6912931

BEARING

7

6912585

WHEEL HUB

8

75277.4

O-ring

9

75730.2

Shaft

10

100349-02C

WASHER

11

100345-41K

NUT

12

75825.0

Support

13

75734.4

Washer

14

6912903

WASHER

15

75736.9

Clip

16

GEAR NAP - Order Ref. 1 Was 75826.6 - A

17

75831.8

Retaining Ring

18

75832.6

Washer

19

75834.2

Needle Bearing

20

75833.4

Gear

21

75824.3

Lock Ring

22

89963.3

Sleeve

23

89964.1

Screw

24

75830.0

Pinion carrier

25

100374-32C

PLUG
