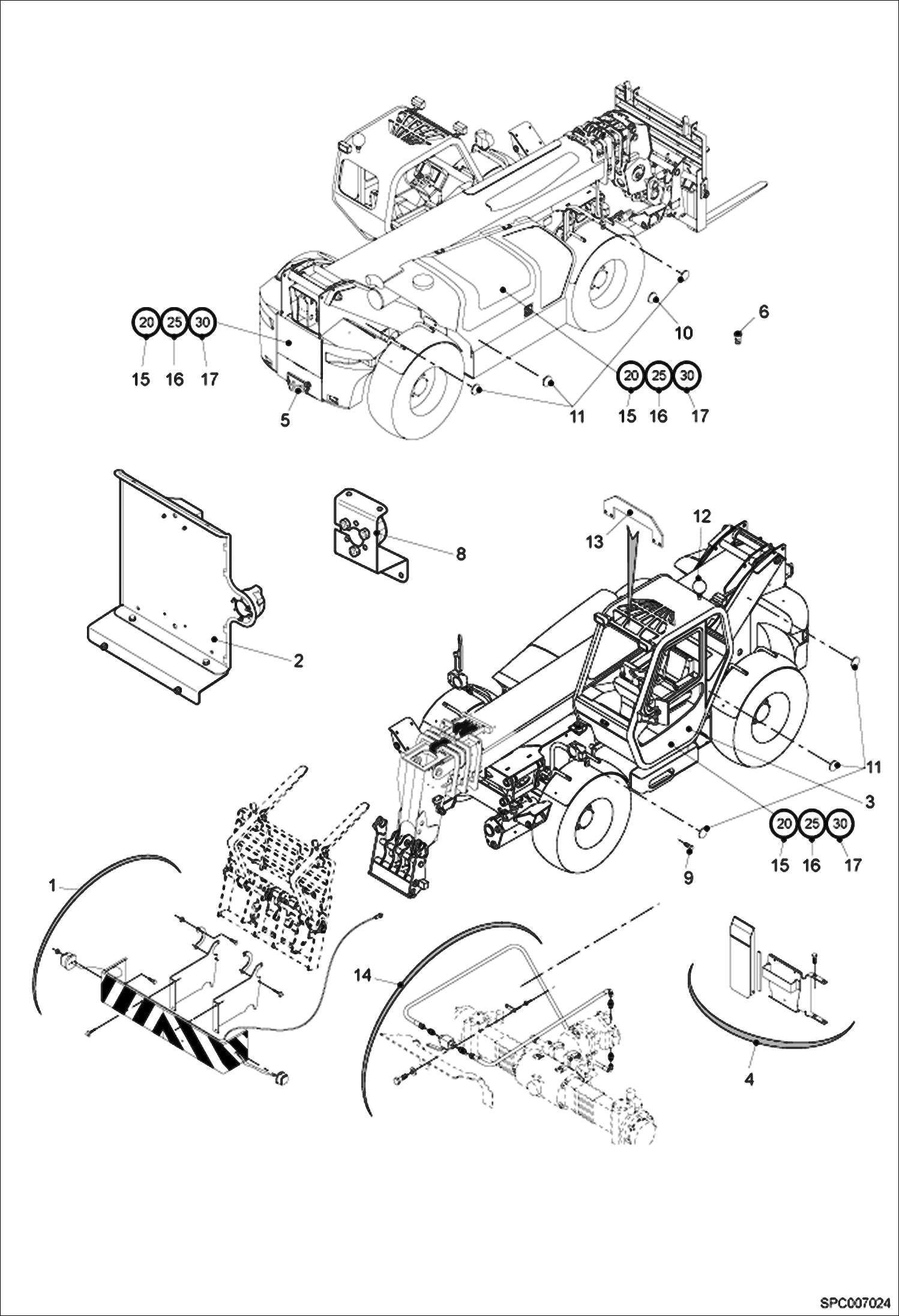

Запчасти Bobcat T40140 GERMANY VERSION ACCESSORIES & OPTIONS

1

FRONTAL SAFETY SIGNALLING See Illustration FRONTAL SAFETY SIGNALLING FOR GERMANY/ SPC007025

2

MATRICULATION PLATE OPTION See Illustration MATRICULATION PLATE/ SPC007011 for 25-30 km/h version

3

PARKING BRAKE HYDRAULIC INSTALLATION (ACCUMULATOR)

4

WHEEL CHOCK See Illustration WHEEL WEDGE OPTION/ SPC007009

5

TOW HITCH See Illustration TOW HITCH/ SPC007012

6

SWITCH OPTION ON VALVE BRAKING

8

TRAILER PLUG OPTION See Illustration TRAILER PLUG/ SPC007013 for 20 km/h version

9

71611.8

Cover

10

100475-97B

Decal - Boom road position indicator

11

100417-16J

Reflector

12

78817.4

Rotating Beacon Light

12

6925402

BULB

13

94645.9

Support

14

TRANSMISSION BY-PASS (GERMANY) See Illustration TOW VALVE INSTALLATION/ SPC007007

15

82019.1

Adhesive 20 km/h Was 90990.3

16

82020.9

Adhesive 25 km/h Was 84915.8

17

82021.7

Adhesive 30 km/h
