Запчасти Bobcat T40140 DUNLOP 405/70-R20 SPT9 WHEELS (S/N 363211001 - 12000) ACCESSORIES & OPTIONS

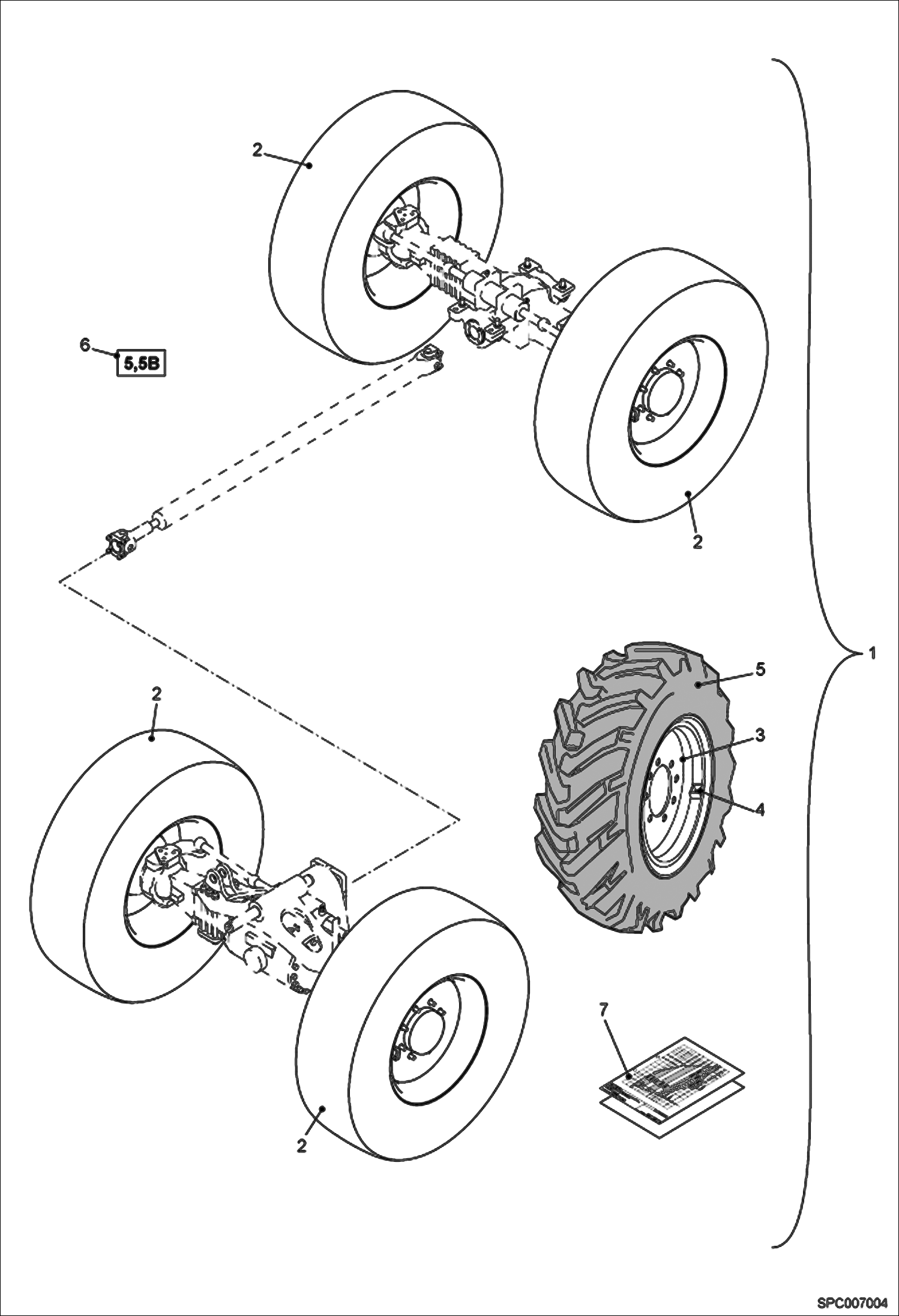

Схема запчастей Bobcat T40140 - DUNLOP 405/70-R20 SPT9 WHEELS (S/N 363211001 - 12000) ACCESSORIES & OPTIONS

Артикул

Название

Примечание

Количество

1

SET OF WHEELS W/Ref. 2

2

92431.6

Wheel assy W/Ref. 3-5

3

82261.9

Rim

4

7192607

VALVE Was 100426-06B - A

5

7192649

TIRE Dunlop 405/70-20 Was 77297.0 - A

6

82227.0

Shields (5,5 B)

7

CHART, LOAD

7

96676.2

Abacus card

Выбрано товаров: 8
