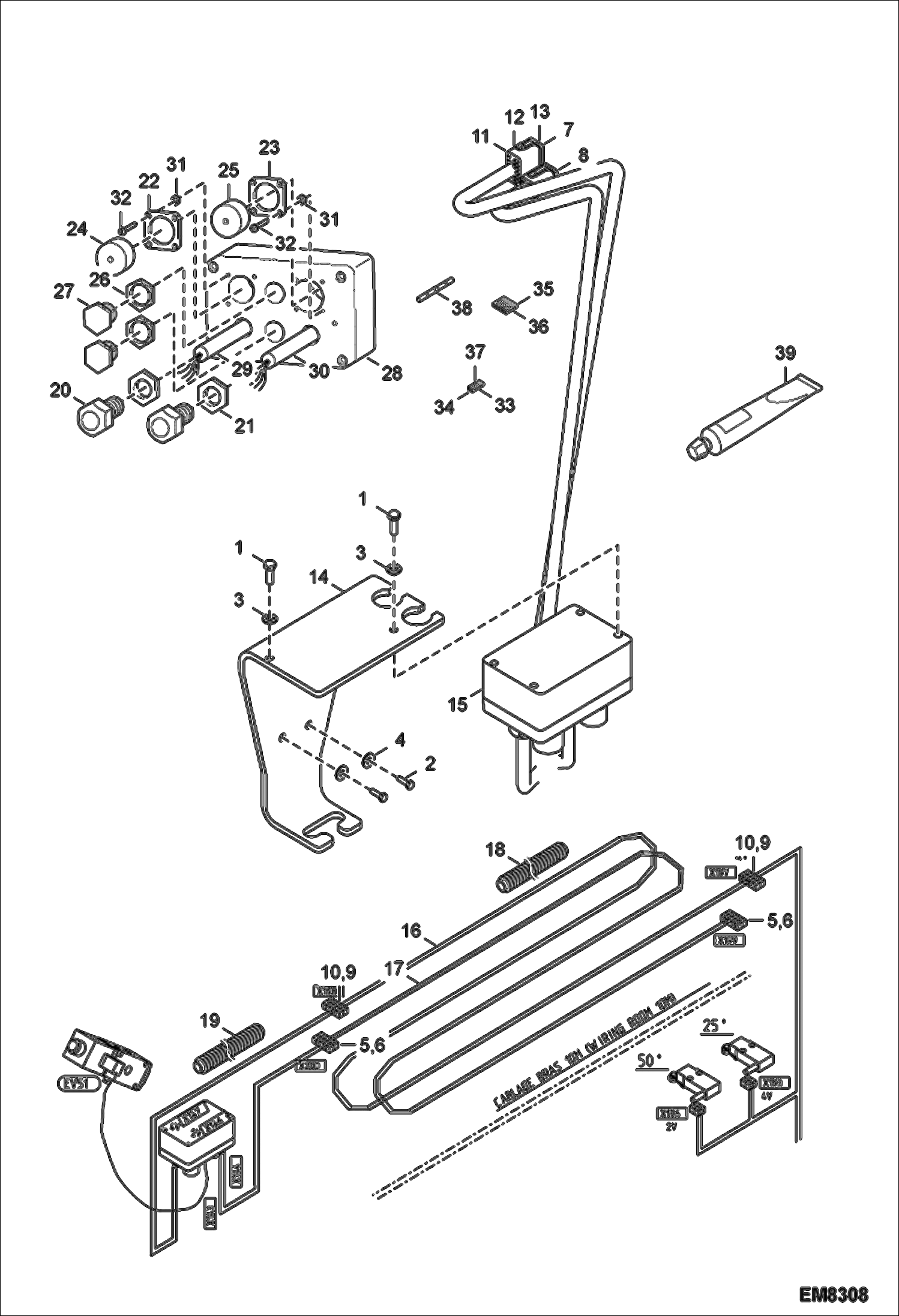

Запчасти Bobcat T40140 ELECTRICAL CIRCUIT ARM ELECTRICAL SYSTEM

1

01590.9

Screw

2

01603.0

Screw

3

01696.4

Washer

4

01698.0

Washer

5

98101.9

MALE CONNECTOR, 8 POLES 8 poles Was 79551.8 - B

6

98102.7

BLOCK Was 79552.6 - B

7

98099.5

FEMALE CONNECTOR, 8 POLES 8 poles Was 79549.2 - B

8

98100.1

BLOCK Was 79550.0 - B

9

79553.4

Female connector 12 poles

10

79554.2

Block

11

79555.9

Male connector 12 poles

12

79556.7

Block

13

97546.6

Plug

14

6908244

Support

15

6918055

BOX W/Ref. 20-38 Was 6908258 - B

16

6908286

Cable

16

6908284

Cable

17

6908287

Cable

17

6917978

CABLE, 7 WIRE

17

6908285

Cable

17

6917979

CABLE, 7 WIRE

18

6908963

Protection 600 mm (23.63'') long

19

6908964

Protection 1000 mm (39.37'') long

20

61677.1

Seal

21

80240.5

Nut

22

84748.3

Base Male

23

84749.1

Base Male

24

89056.6

Cap Was 89055.8 - B

25

89056.6

Cap

26

96628.3

Cap

27

96629.1

Plug

28

6908253

Box

29

6908280

Cable

30

6918054

CABLE, 7 WIRE

31

000341-05V

Nut

32

45515.4

Screw

33

79541.9

Connection

34

79542.7

Connection

35

79551.8

Connector 6 poles

36

79552.6

Block

37

79557.5

Connection

38

84726.9

Shrink Sleeve

39

6901596

GREASE
