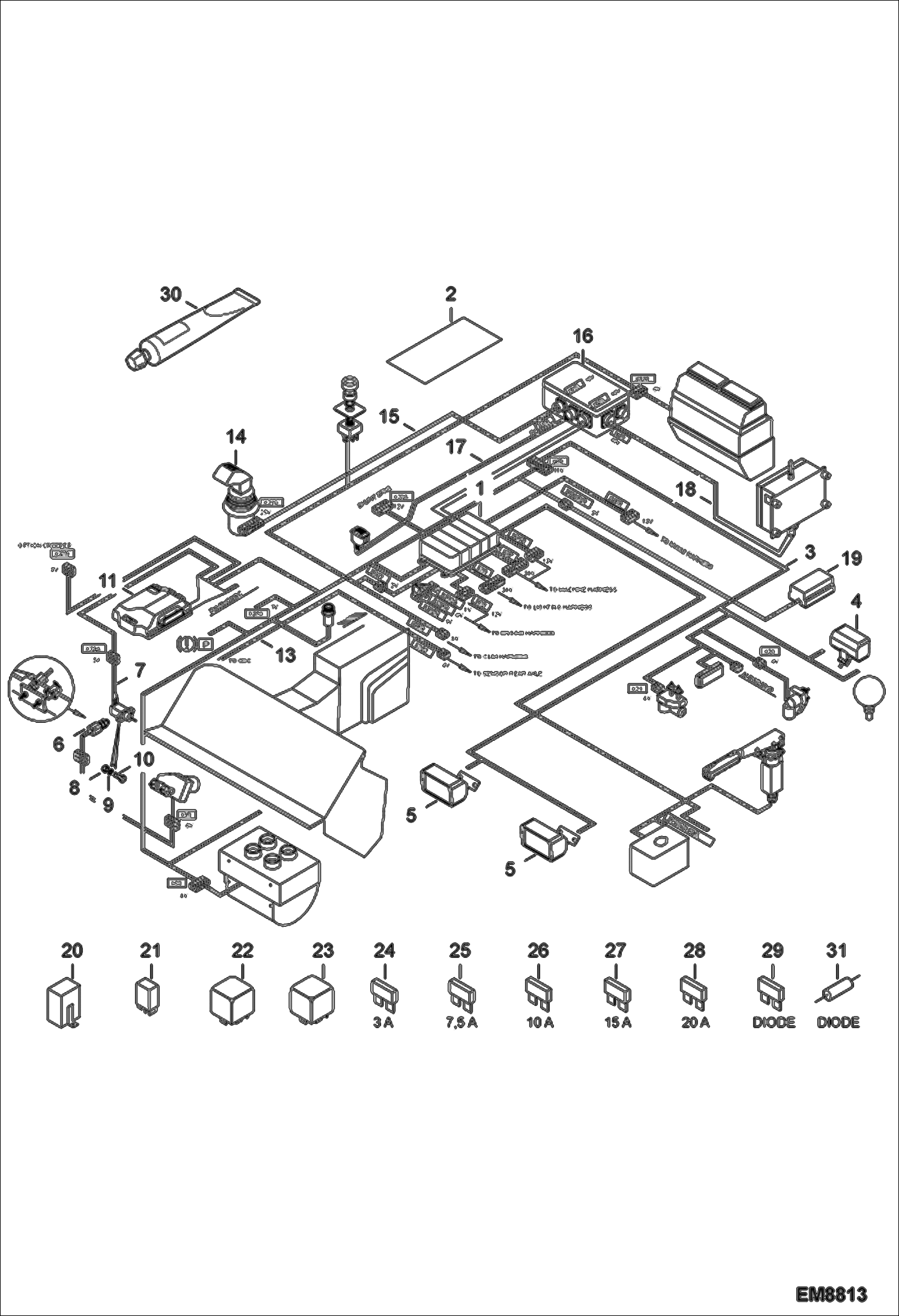

Запчасти Bobcat T40140 ELECTRICAL CIRCUIT CAB ELECTRICAL SYSTEM

1

6911733

Fuse box W/Ref. 20-29

2

6912457

Adhesive

3

97236.4

Wire Harness

4

78816.6

Rear worklight

4

6960571

BULB Was 7200932 - A

5

78815.8

Front worklight

5

6960571

BULB Was 7200932 - A

6

6918227

SWITCH DETECTOR Was 6909324 - A

7

SENSOR , INCHING NLA - Order 6934897 - Was 6909383 - A

8

100345-05V

NUT

9

6910952

WASHER JZC5

10

100345-05V

NUT

11

6911325

ELECTRIC BOX

13

6913764

INDICATOR

14

92954.7

Joystick

15

92955.4

Wire harness

16

6914597

Control box Was 95348.9 - A

17

90930.9

Control Knob Includes knob, cable and connector

18

RADIO RECEIVER NAP - Only with Man platform - Order now 6914769 + 6914805 Was 97922.9 - A

18

RECEIVER, RADIO NLA - Only with man platform Was 6914769 Order Now 6914656 - A

18

6914656

Radio Receiver Only with man platform

19

97923.7

Battery loader Only with man platform

20

96623.4

Turn signal relay

21

6910955

RELAY,MICRO

22

79930.4

Relay black

23

100411-05U

RELAY green

24

64120.9

Fuse 3A - 3 A

25

57792.4

Fuse 7.5A - 7.5 A

26

57752.8

Fuse 10A - 10 A

27

57793.2

Fuse 15A - 15 A

28

57753.6

Fuse 20A - 20 A

29

80226.4

Diode

30

6901596

GREASE

31

101472-20M

DIODE
