Запчасти Bobcat T40140 HYDROSTATIC HOSES AND FITTINGS HYDROSTATIC SYSTEM

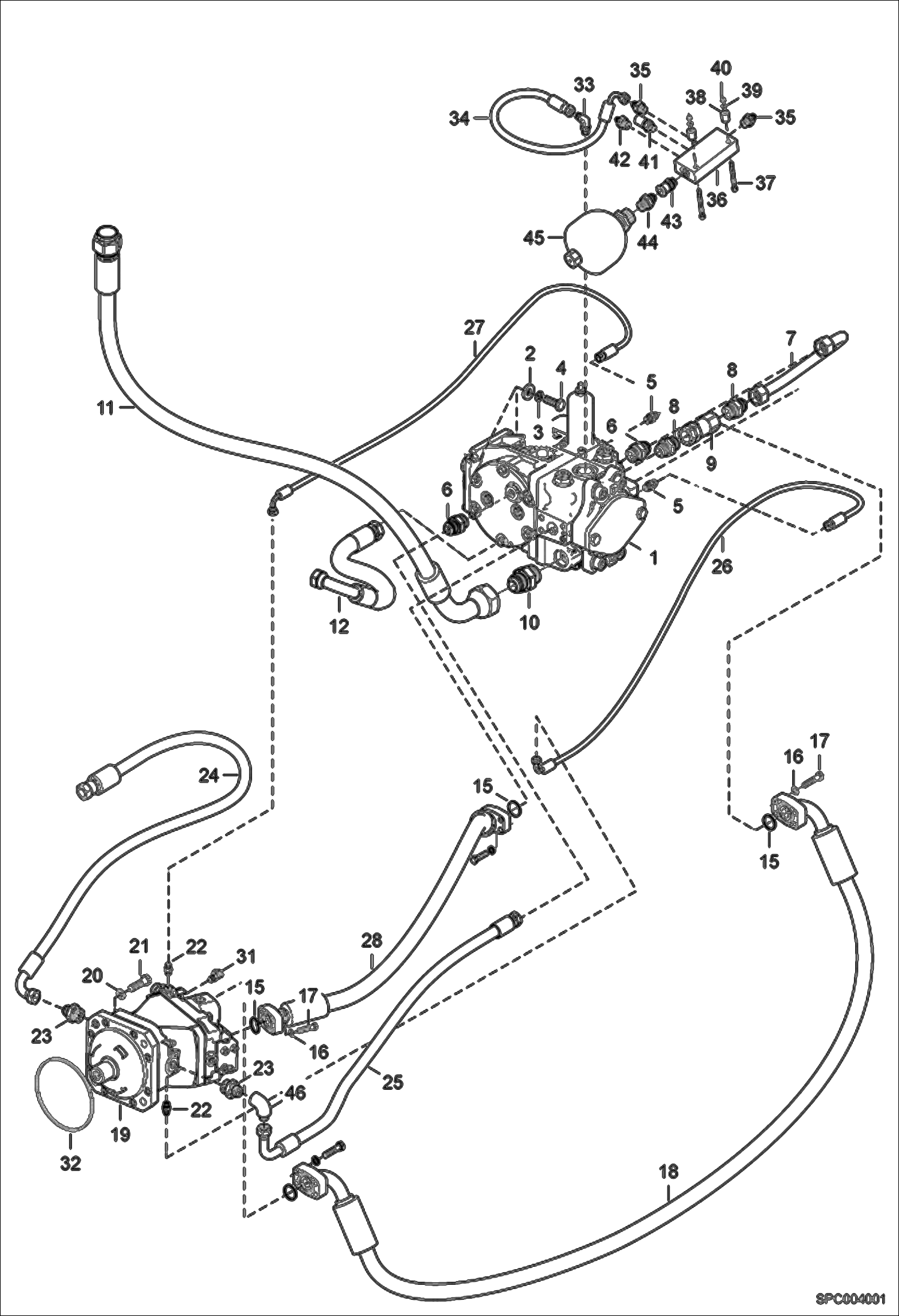

Схема запчастей Bobcat T40140 - HYDROSTATIC HOSES AND FITTINGS HYDROSTATIC SYSTEM

Артикул

Название

Примечание

Количество

1

PUMP, HYDROSTATIC See Illustration HYDROSTATIC PUMP ASSY/ SPC004002 NAP Was 6910533

1

6913565

HYDROSTATIC PUMP See Illustration HYDROSTATIC PUMP ASSY/ SPC004003

2

100454-17G

WASHER

3

89517.7

Washer

4

01613.9

Screw

5

67046.3

Adapter

6

014375-33L

UNION

7

6909780

PIPE

8

100375-40U

UNION

9

97880.9

Check valve

10

78705.1

Adapter

12

6910599

HOSE TJ 1.1/16 19 TJ90 1.1/16 L470

15

7009211

O-RING Was 013304-20J - B

16

92210.4

Washer

17

28689.8

Screw

18

88581.4

Hose

19

78256.5

Hydrostatic Motor Assy

20

89518.5

Washer

21

100338-18Z

SCREW

22

67046.3

Adapter

23

014375-96E

UNION

24

96795.0

Hose Was 6913659

25

6914746

HOSE Was 6913429 + 00837

26

67198.2

Hose

27

67198.2

Hose

28

88580.6

Hose

31

72065.6

Pressure switch W/chain

32

82025.8

O-ring

33

010370-38Q

UNION

34

92126.2

Hose

35

77013.1

Adapter

36

6914730

HYDRAULIC BLOCK Was 6910660

37

38234.1

Screw Was 11631.9

38

6910771

WASHER

39

01696.4

Washer

40

100345-06W

NUT

41

54367.8

PORT, PRESSURE TEST

42

65614.0

Union

43

100375-42W

ADAPTER

44

022375-04U

UNION

45

6911487

ACCUMULATOR 0,7L SB0210-0,75EI

46

008372-14Q

ELBOW

Выбрано товаров: 42
