Запчасти Bobcat T40140 TILT CYLINDER (6914552) HYDRAULIC SYSTEM

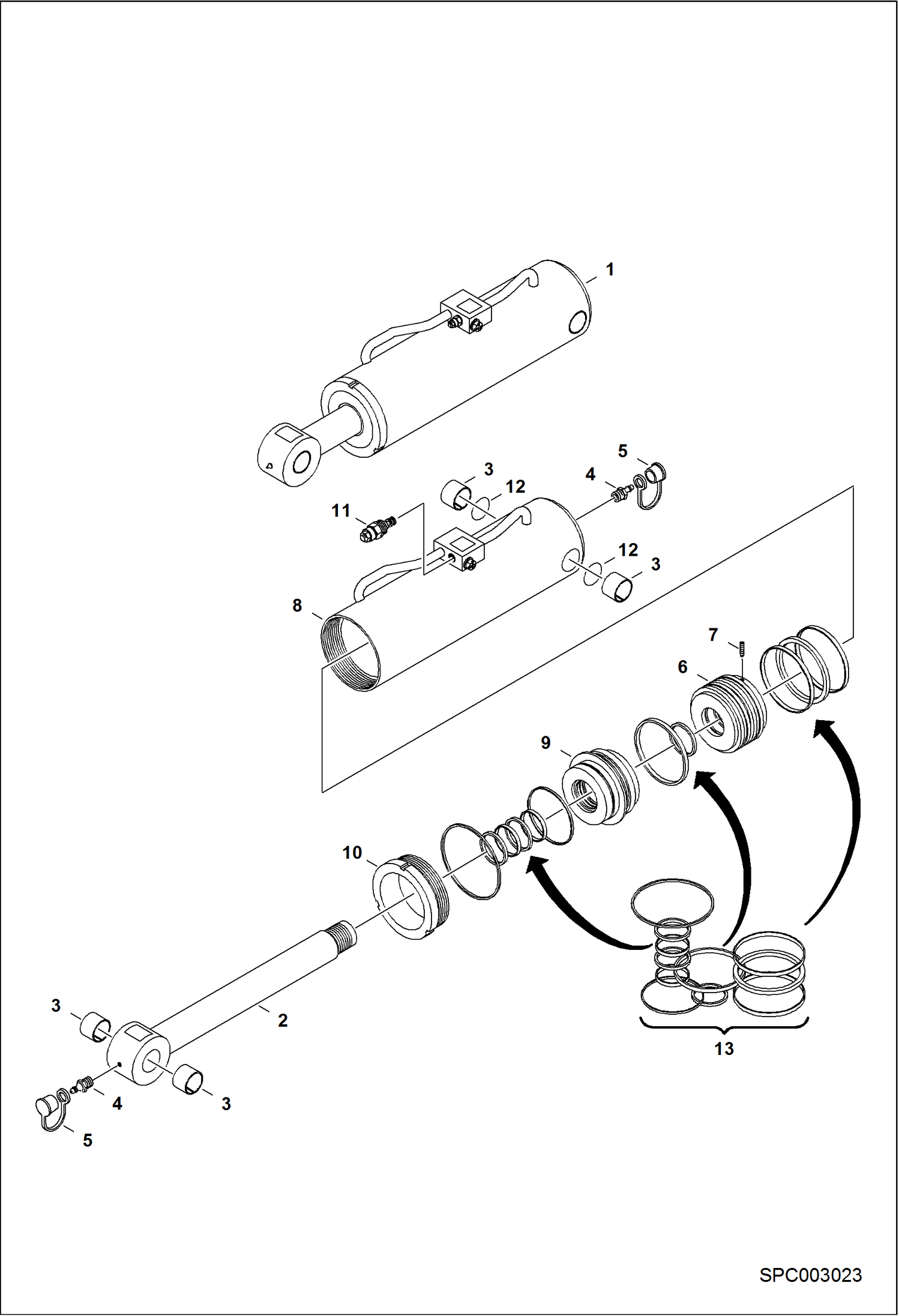

Схема запчастей Bobcat T40140 - TILT CYLINDER (6914552) HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

6932908

CYLINDER W/Ref. 2-13 Was 6914552 - B

2

97441.0

Rod

3

75618.9

Bushing

4

81573.8

Grease nipple

5

6912504

PLUG

6

7030221

PISTON Torque 1000Nm - Was 97443.6 - A

7

75165.1

Screw

8

6912080

Cylinder body

9

6912081

Cylinder head

10

97027.7

Nut

11

64534.1

Lock Valve

12

6912082

INNER RING

13

97444.4

Seals kit

Выбрано товаров: 13
