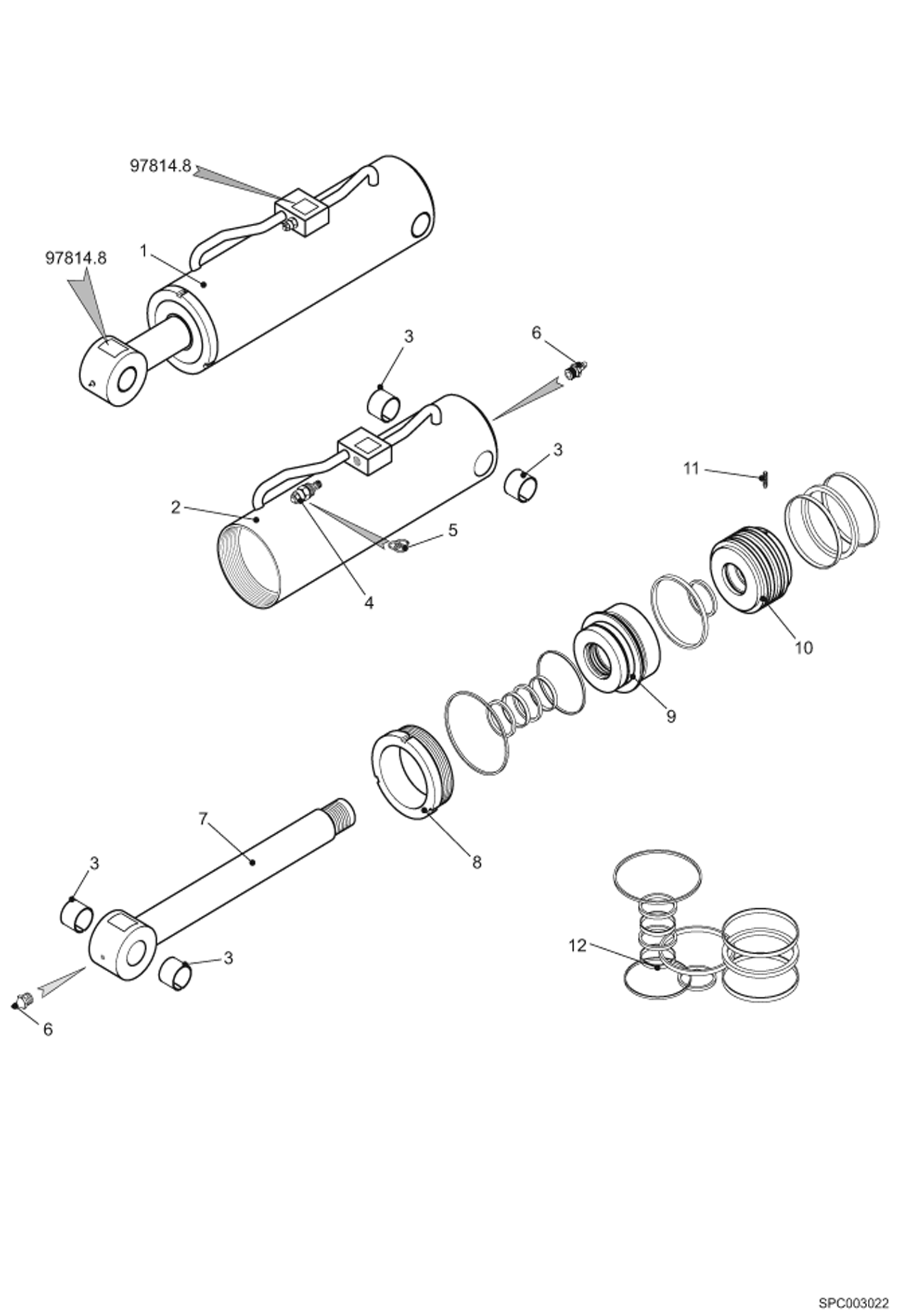

Запчасти Bobcat T40140 TILT CYLINDER (97814.8) HYDRAULIC SYSTEM

1

CYLINDER ASSY NAP - Order Ref. 2-12 Was 97814.8

2

97026.9

Cylinder

3

75618.9

Bushing

4

64534.1

Lock Valve Torque 45-50Nm

5

100496-04H

SEAL KIT

6

81573.8

Grease nipple

7

97441.0

Rod

8

97027.7

Nut Torque 450-500Nm

9

6912081

Cylinder head Was 97442.8

10

7030221

PISTON Torque 1000Nm - Was 97443.6 - A

11

75165.1

Screw Torque 20Nm

12

97444.4

Seals kit
