Запчасти Bobcat T40140 FAN MOTOR INVERTER ACCESSORIES & OPTIONS

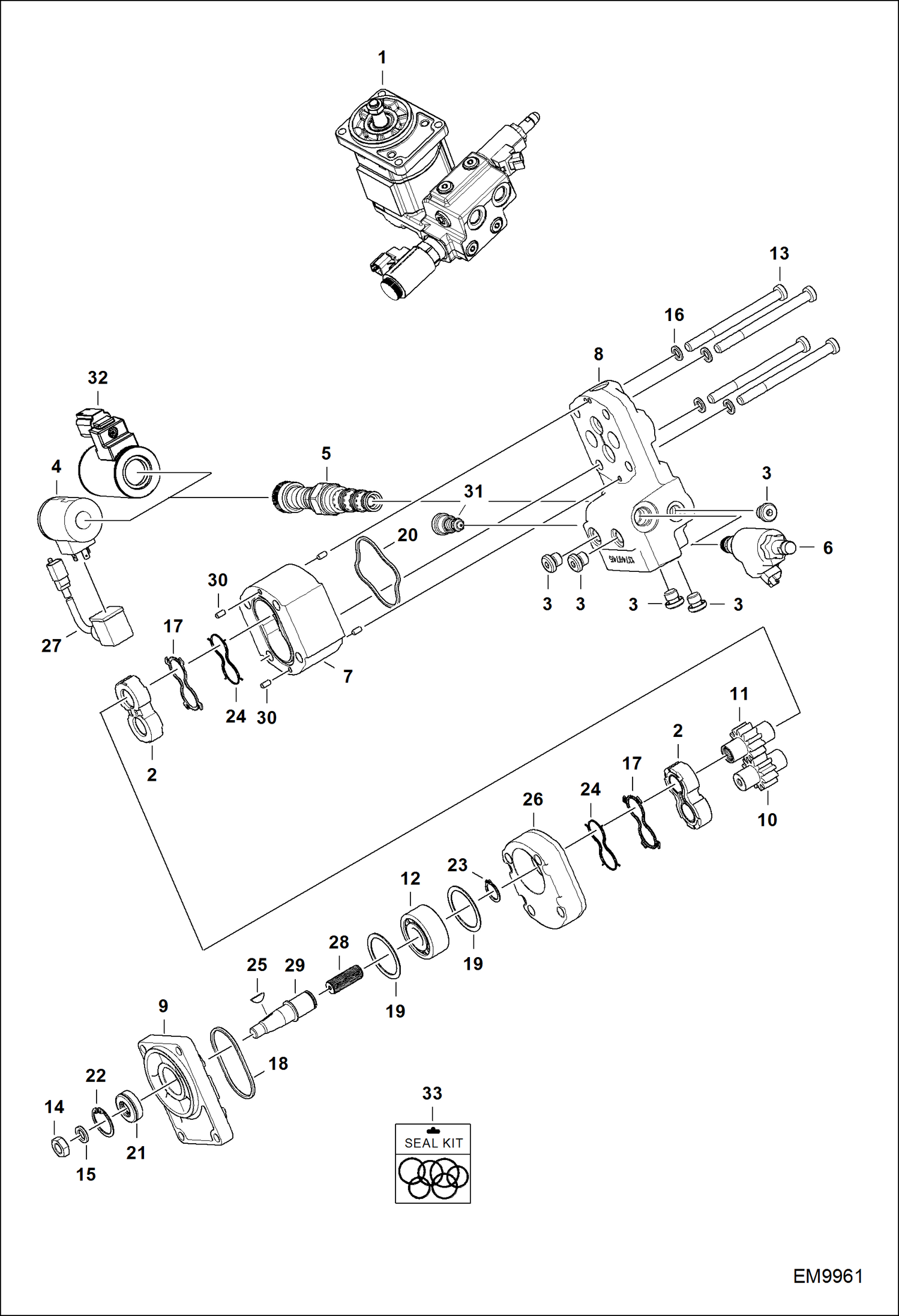

Схема запчастей Bobcat T40140 - FAN MOTOR INVERTER ACCESSORIES & OPTIONS

Артикул

Название

Примечание

Количество

1

7231893

MOTOR, FAN INVERTER Ref. 2-31

2

PLATE NLA - Order Ref. 1

3

PLUG NLA - Order Ref. 1

4

7024222

SOLENOID

5

VALVE NLA - Order Ref. 1

6

7022201

VALVE

7

HOUSING NLA - Order Ref. 1

8

BLOCK NLA - Order Ref. 1

9

COVER, FRONT NLA - Order Ref. 1

10

GEAR, DRIVEN NLA - Order Ref. 1

11

GEAR, DRIVE NLA - Order Ref. 1

12

BEARING, BALL NLA - Order Ref. 1

13

BOLT NLA - Order Ref. 1

14

NUT NLA - Order Ref. 1

15

WASHER NLA - Order Ref. 1

16

WASHER NLA - Order Ref. 1

17

SEAL NLA - Order Ref. 32

18

SEAL NLA - Order Ref. 32

19

SEAL NLA - Order Ref. 32

20

SEAL NLA - Order Ref. 32

21

SEAL, SHAFT NLA - Order Ref. 32

22

RING, SNAP NLA - Order Ref. 1

23

RING, SNAP NLA - Order Ref. 1

24

SEAL NLA - Order Ref. 32

25

KEY NLA - Order Ref. 1

26

FLANGE NLA - Order Ref. 1

27

CONNECTOR NLA - Order Ref. 1

28

HUB NLA - Order Ref. 1

29

SUPPORT NLA - Order Ref. 1

30

PIN NLA - Order Ref. 1

31

VALVE NLA - Order Ref. 1

32

7024654

KIT, SEAL Ref. 17-21 & 24

Выбрано товаров: 32
