Запчасти Bobcat T40140 ENGINE & ATTACHING PARTS (Engine Mounts & Exhaust Pipe) POWER UNIT

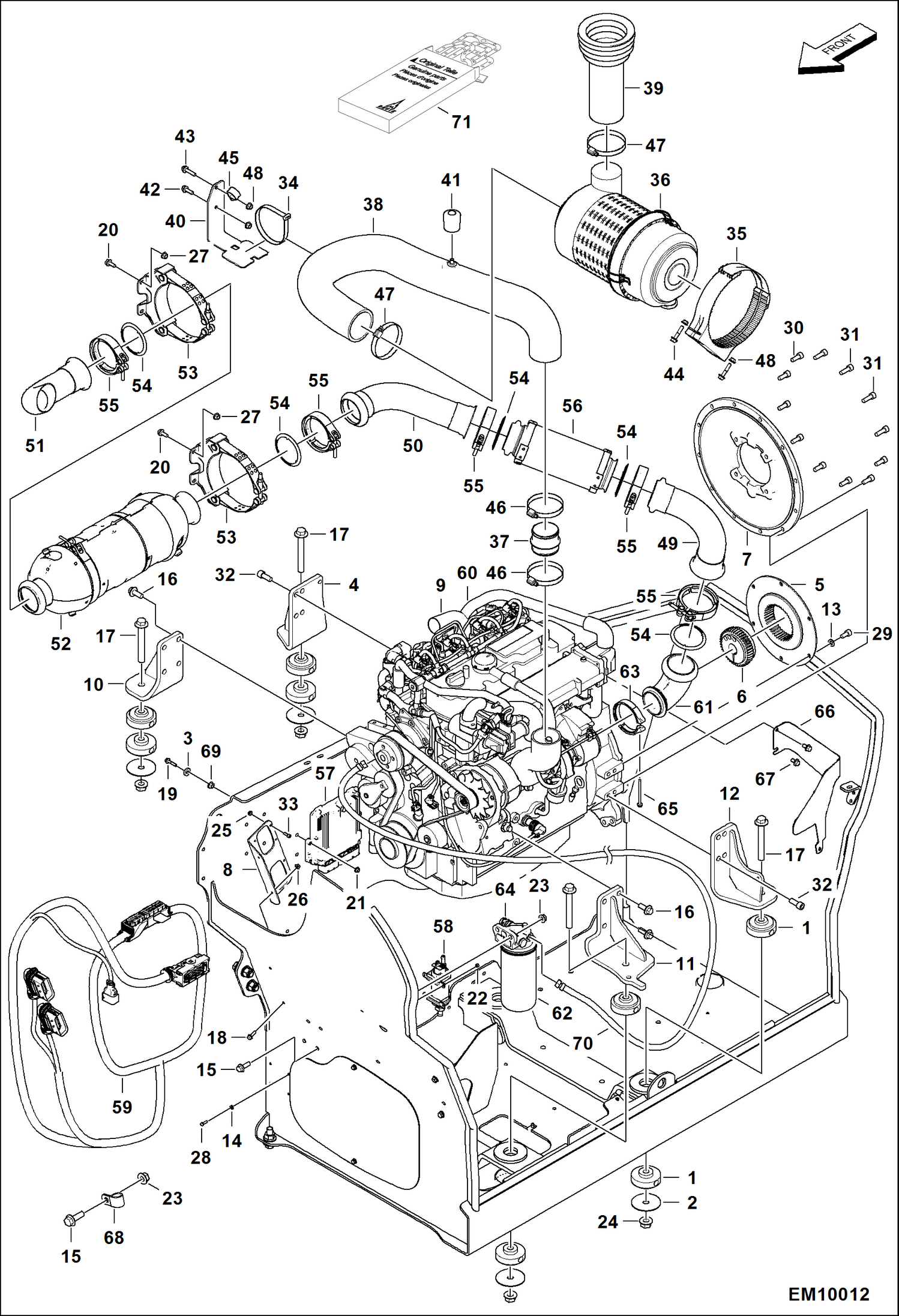

Схема запчастей Bobcat T40140 - ENGINE & ATTACHING PARTS (Engine Mounts & Exhaust Pipe) POWER UNIT

Артикул

Название

Примечание

Количество

1

7162463

SUSPENSION

2

7169889

WASHER

3

1EM60

WASHER Was 7215170 - A

4

7222838

HOLDER, REAR

5

7226052

FLANGE, COUPLING

6

7226053

HUB, COUPLING

7

7226054

COVER, COUPLING

8

7227681

HOLDER, CONNECTORS

9

7227698

ENGINE ASSY W/Ref. 52-64

10

7230376

HOLDER, FRONT

11

7230379

HOLDER, FRONT

12

7231697

HOLDER, REAR

13

18EM1019

WASHER

14

18EM510

WASHER

15

29CM1030

BOLT

16

29CM1230

BOLT

17

29CM16120

SCREW

18

29CM620

SCREW

19

4CM635

BOLT Was 29CM630 - A

20

29CM820

SCREW

21

43DM6

NUT

22

4DM5

NUT

23

51DM10

NUT

24

51DM16

NUT

25

51DM5

NUT Was 43DM5 - A

26

51DM6

NUT

27

51DM8

NUT

28

53CM516

SCREW

29

6GM1020

SCREW

30

6GM1025

SCREW

31

6GM1030

SCREW

32

6GM1230

SCREW

33

6GM516

SCREW

34

7025313

STRAP

35

7166418

HOLDER, AIR FILTER

36

7177188

FILTER ASSY, AIR

36

6910726

FILTER, AIR INNER

36

6910725

FILTER, AIR OUTER

37

7224069

SPACER, AIR HOSE

38

7228405

HOSE, AIR CLEANER

39

7230956

HOSE, AIR WAVE

40

7232720

HOLDER, INLET HOSE

41

7233684

SENSOR RESTRICTION

42

29CM825

BOLT

43

29CM835

BOLT

44

29CM840

SCREW

45

30H57

CLAMP

46

42H52

CLAMP

47

42H56

CLAMP

48

51DM8

NUT

49

7224129

TUBE, EXHAUST

50

7224130

TUBE, EXHAUST

51

7233280

PIPE, EXHAUST

52

7217206

MUFFLER, CATALYTIC

53

7217219

HOLDER, EXHAUST

54

7217471

GASKET, EXHAUST

55

7217473

CLAMP, EXHAUST

56

TUBE, EXHAUST NLA Was 7217474 - A

57

7217631

CONTROLLER

58

7219125

PUMP, FUEL

59

7223769

CABLE, CONNECTING

60

7221320

ENGINE

61

7229541

ELBOW, EXHAUST

62

7230613

FILTER ASSY, FUEL See Illustration FUEL FILTER/ EM10041

63

7230612

CLAMP

64

7219261

SENSOR, OIL PRESSURE

65

7236908

BOLT, CLAMP

66

7236435

COVER, TURBO

67

29CM816

SCREW

68

30H46

CLIP

69

4DM6

NUT

70

5HM20

CLAMP

Выбрано товаров: 72
