Запчасти Bobcat T40140 COOLING SYSTEM POWER UNIT

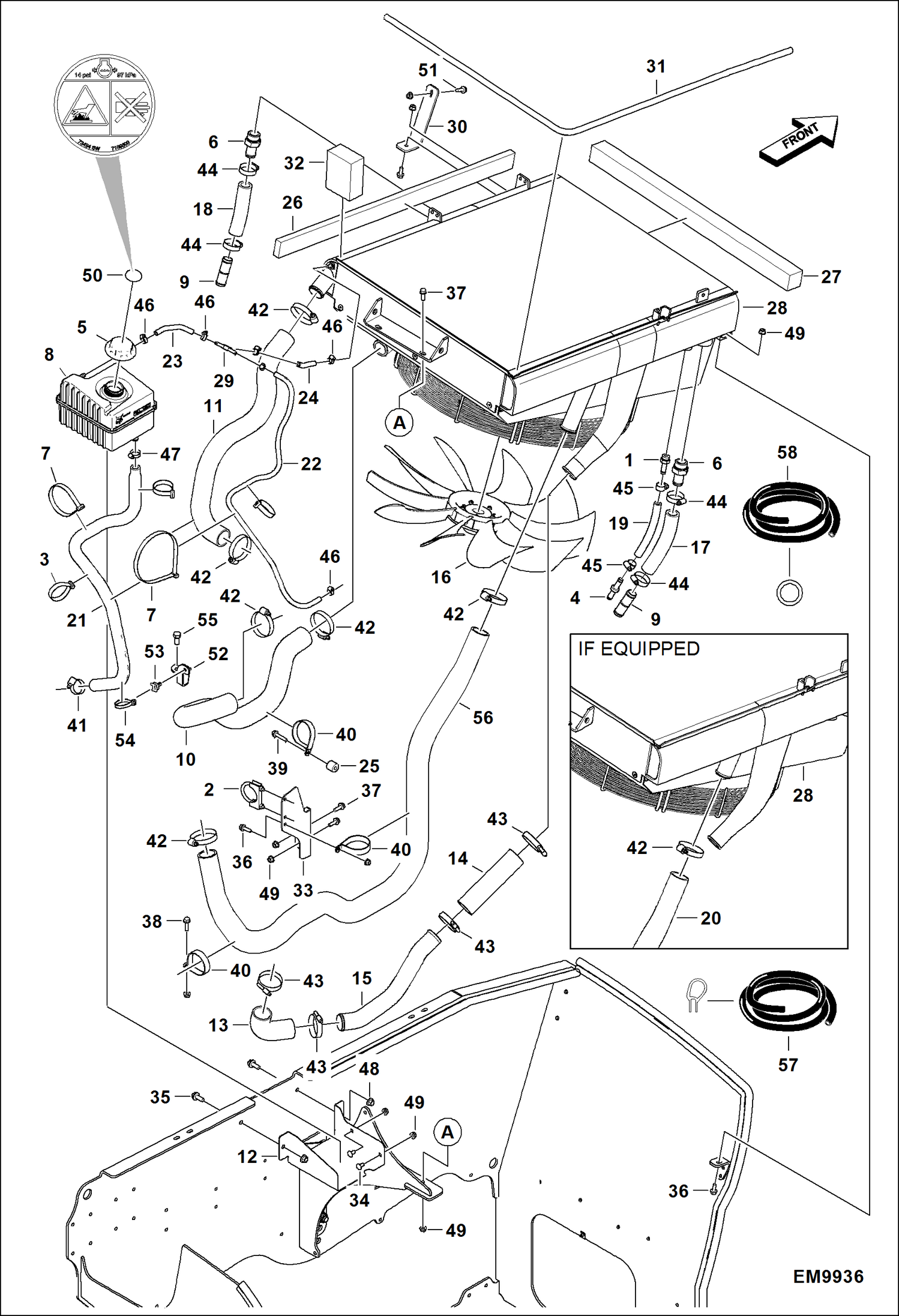

Схема запчастей Bobcat T40140 - COOLING SYSTEM POWER UNIT

Артикул

Название

Примечание

Количество

1

1310706

FITTING HOSE

2

6677363

CLAMP, FULL CIRCLE

3

6678669

STRAP

4

6732023

CONNECTOR

5

6733429

CAP W/Ref. 50

6

6805839

FITTING

7

7025313

STRAP

8

7137747

TANK, EXPANSION

9

7174115

FITTING, BEADED

10

7223465

HOSE, AIR

11

7223466

HOSE, RADIATOR

12

7226448

HOLDER, EXPANSION

13

7227113

ELBOW

14

7227165

HOSE, AIR

15

7227166

TUBE, COOLING

16

7228334

FAN

17

7230541

HOSE, HYD

18

7230542

HOSE, HYD

19

7230543

HOSE, HYD

20

7231150

HOSE, RADIATOR

21

7231254

HOSE

22

HOSE, BREATHER NLA - 1100mm (43.31'') long - Order Ref. 53

23

HOSE, BREATHER NLA - 165mm (6.5'') long - Order Ref. 53

24

HOSE, BREATHER NLA - 82mm (3.23'') long - Order Ref. 53

25

7231518

SPACER

26

7231584

GASKET

27

7235444

GASKET Was 7231585 - A

28

7231587

EXCHANGER See Illustration ENGINE & ATTACHING PARTS/ EM9937

29

7231655

FITTING

30

7231745

HOLDER

31

GASKET NLA - 1540mm (60.62'') long - Order Ref. 52

32

7232497

FOAM, COOLER

33

7233901

BRACKET, HOSE

34

29CM816

SCREW

35

29CM1025

BOLT

36

29CM820

SCREW

37

29CM825

BOLT

38

29CM830

CAPSCREW

39

29CM840

SCREW

40

30H94

COLLAR Was 30H96 - A

41

42H16

CLAMP, HOSE 5

42

42H36

CLAMP 5

43

42HC250

CLAMP

44

42HL175

CLAMP, HOSE

45

42HL88

CLAMP

46

42HS04

CLAMP, HOSE

47

42HS10

CLAMP

48

51DM10

NUT

49

51DM8

NUT

50

7169699

DECAL

51

29CM835

BOLT

52

7196170

GASKET bulk - sold per foot

53

6577822

HOSE bulk - sold per foot

Выбрано товаров: 53
