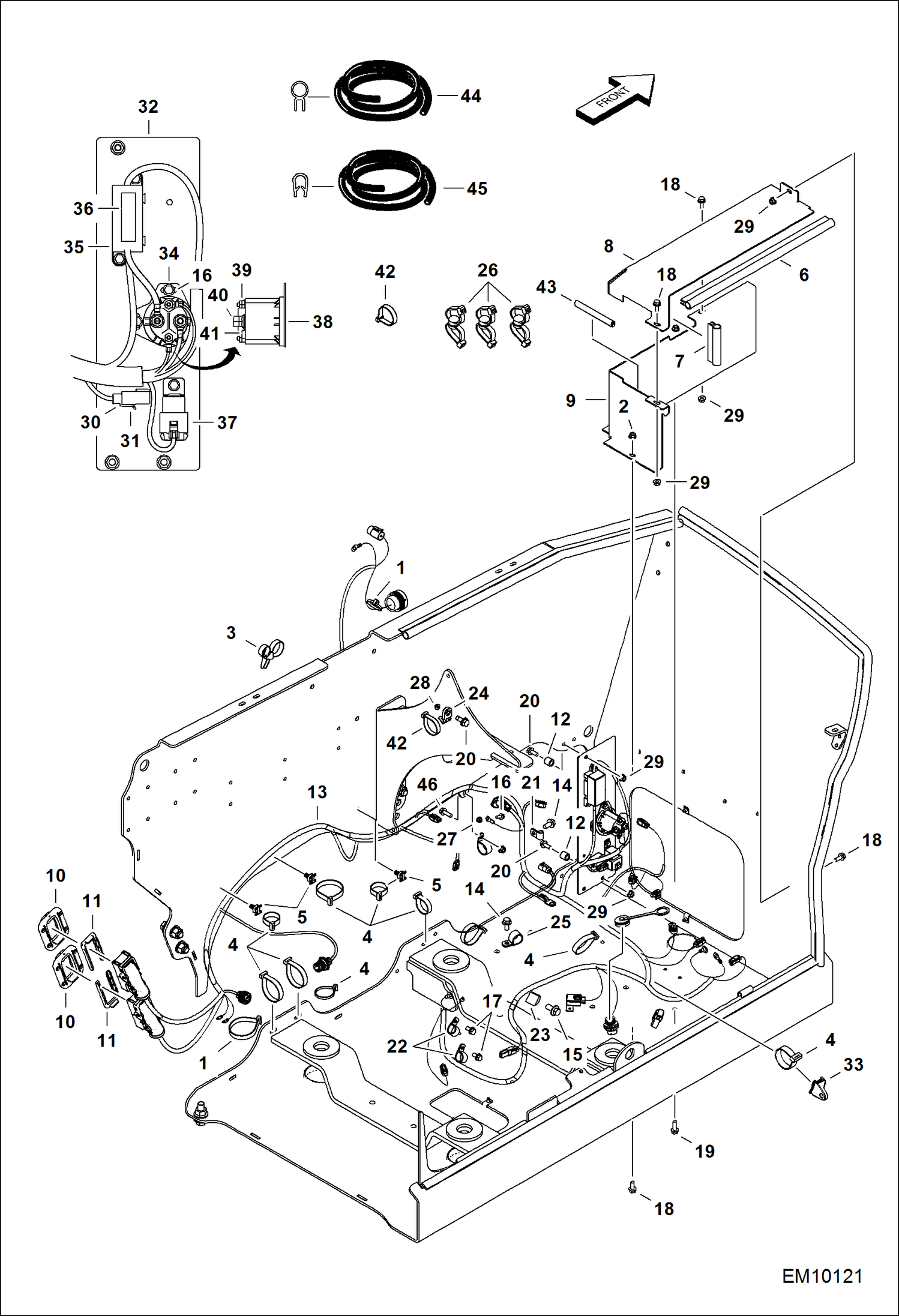

Запчасти Bobcat T40140 ENGINE ELECTRICAL CIRCUITRY (Harness) ELECTRICAL SYSTEM

1

6624289

STRAP, TIE

2

6676169

NUT

3

6678668

STRAP, DUAL TIE

4

6678669

STRAP

5

7015668

MOUNT, STRAP TIE

6

GASKET NLA - 505mm (19.88'') long - Order Ref. 43

7

GASKET NLA - 112mm (4.41'') long - Order Ref. 43

8

7187906

COVER, BATTERY upper

9

7187907

COVER, BATTERY lower

10

7212709

MOUNT

11

7217622

LOCK

12

7223116

SPACER

13

7225572

HARNESS, ENGINE W/Ref. 30-41

14

29CM1020

BOLT

15

29CM1225

BOLT

16

29CM616

BOLT

17

29CM816

SCREW

18

29CM820

SCREW

19

29CM825

BOLT

20

29CM835

BOLT

21

30H23

CLAMP

22

30H45

CLIP

23

30H48

CLIP

24

6684641

MOUNT

25

30H50

CLIP

26

7231699

STRAP, DUAL Was 6686385 - B

27

43DM6

NUT

28

43DM8

NUT

29

51DM8

NUT

30

6657305

HOLDER

31

6702444

FUSE 25A 5 25A

32

7226750

BRACKET, FUSE

33

29CM616

BOLT

34

51DM6

NUT

35

6675154

HOLDER

36

6675155

FUSE, 100A

37

6670312

SWITCH, MAGNETIC

38

6691625

RELAY

39

14D10

NUT

40

61D5

NUT

41

55D5

NUT

42

7025313

STRAP

43

7194632

SEAL bulk - sold per foot
