Запчасти Bobcat T40140 LOCK ASSY MAIN FRAME

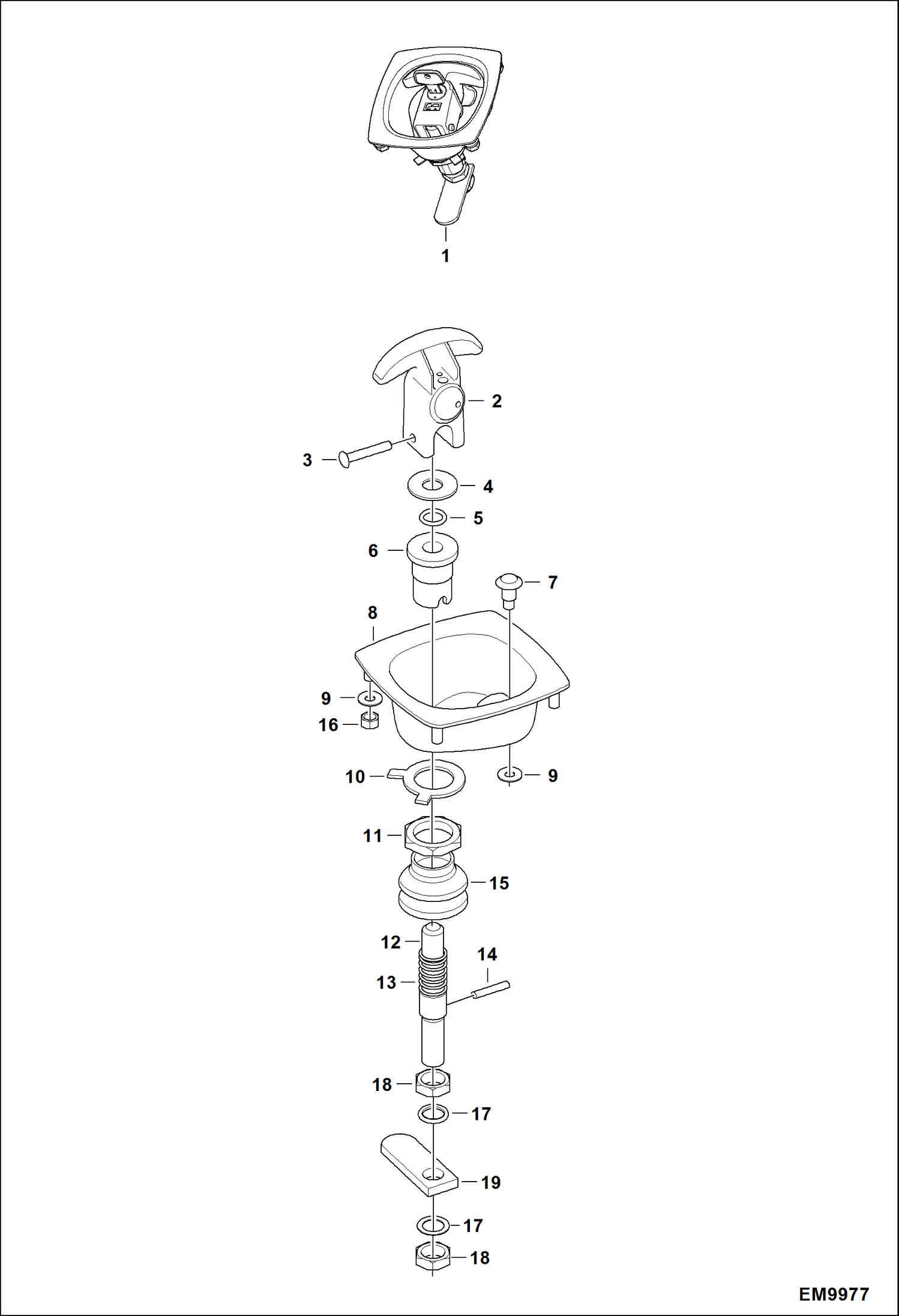

Схема запчастей Bobcat T40140 - LOCK ASSY MAIN FRAME

Артикул

Название

Примечание

Количество

1

7233659

LOCK ASSY Ref. 2-19

1

6925321

KEY

2

HANDLE NLA - Order Ref. 1

3

RIVET NLA - Order Ref. 1

4

WASHER NLA - Order Ref. 1

5

O-RING NLA - Order Ref. 1

6

SPACER NLA - Order Ref. 1

7

PIN NLA - Order Ref. 1

8

CUP NLA - Order Ref. 1

9

1EM60

WASHER

10

WASHER NLA - Order Ref. 1

11

NUT NLA - Order Ref. 1

12

PIN NLA - Order Ref. 1

13

SPRING NLA - Order Ref. 1

14

PIN NLA - Order Ref. 1

15

BELLOW NLA - Order Ref. 1

16

53DM6

NUT

17

WASHER NLA - Order Ref. 1

18

NUT NLA - Order Ref. 1

19

CAM NLA - Order Ref. 1

Выбрано товаров: 20
