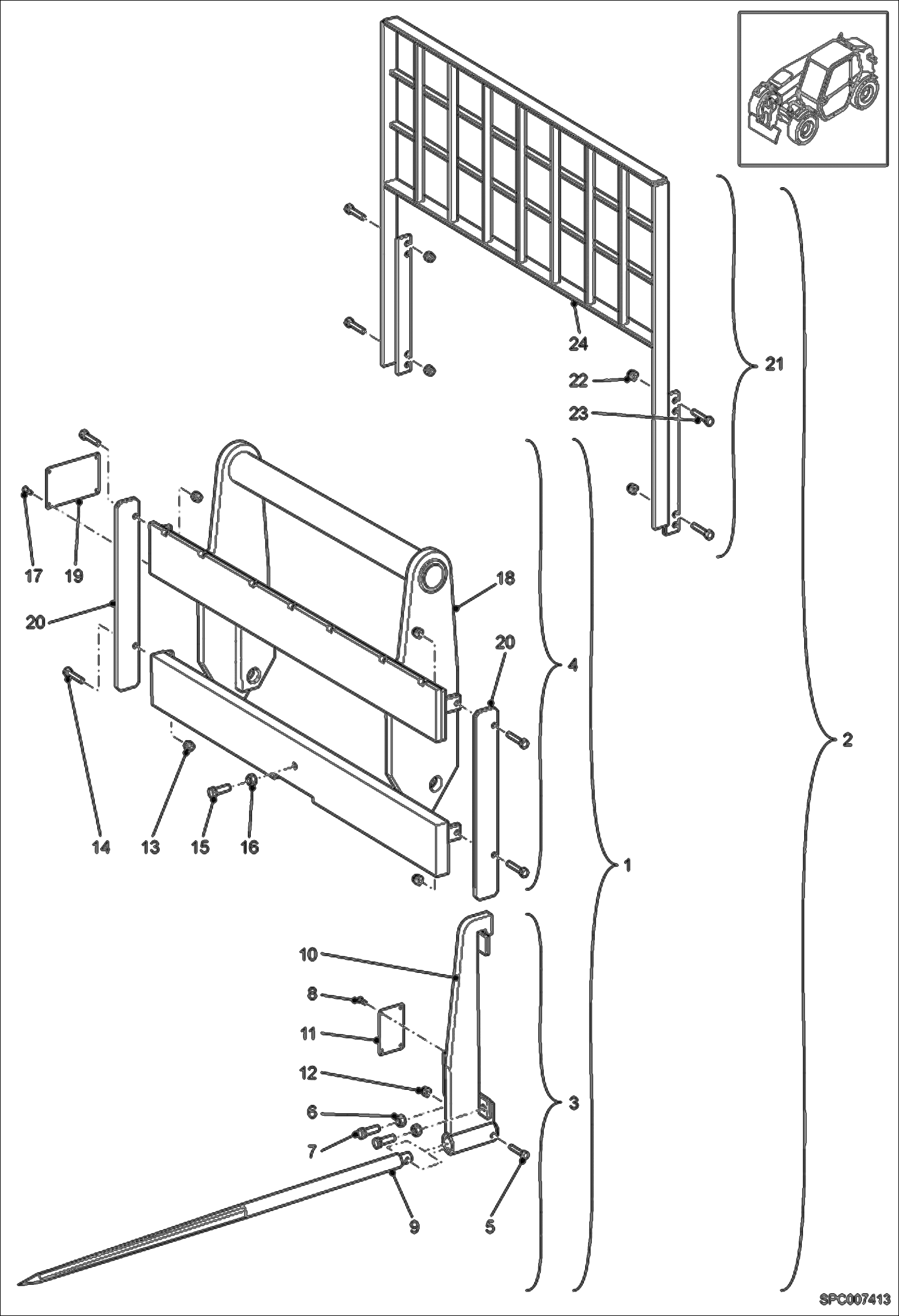

Запчасти Bobcat T3571L BALES PIKES AND PALLET FORK FRAME ACCESSORIES & OPTIONS

1

BALES, PIKES NLA - Order Ref. 3 & 4 - W/Ref. 3-20 Was 76740.0 - D

2

80945.9

Bales pikes assy W/Ref. 3-24

3

76837.4

Round pin W/Ref. 5-12

4

FORKS HOLDER, ASSY NLA - W/Ref. 13-20

5

01522.2

Screw

6

01672.5

Nut

7

10942.1

Screw

8

43824.2

Rivet

9

75182.6

Tooth

10

76742.6

Bracket

11

PLATE, CE NAP Was 98167.0 - D

12

100345-09A

NUT

13

000345-96E

NUT

14

01602.2

Screw

15

01620.4

Screw

16

15323.9

Washer

17

43824.2

Rivet

18

62925.3

FRAME, PALLET FORK HOLDER 4T, 1,2 m wide

19

PLATE, CE NAP Was 98167.0 - D

20

6922316

PLATE

21

80917.8

Splash plate W/Ref. 22-24

22

000345-96E

NUT

23

01613.9

Screw

24

62926.1

Splash plate
