Запчасти Bobcat T3571L AIR CONDITIONING INSTALLATION ACCESSORIES & OPTIONS

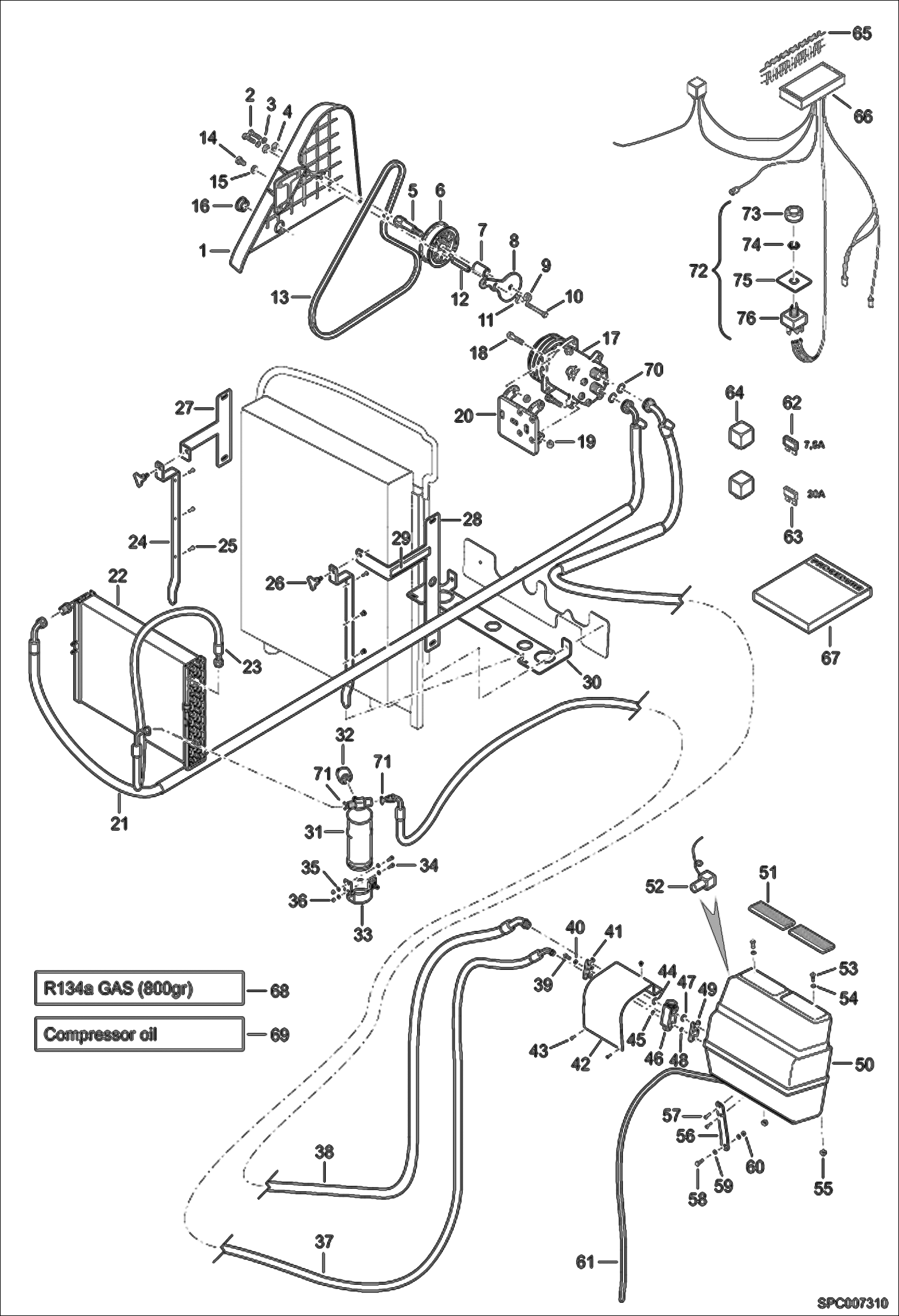

Схема запчастей Bobcat T3571L - AIR CONDITIONING INSTALLATION ACCESSORIES & OPTIONS

Артикул

Название

Примечание

Количество

1

6919502

BELT PROTECTOR

2

01578.4

Screw

3

01697.2

Washer

4

97610.0

Washer

5

6908181

SPINDLE

6

90531.5

Roller

7

6914328

SPACER

8

6919954

PULLEY SUPPORT Was 6908180 - A

9

000345-96E

NUT

10

01522.2

Screw

11

000350-20Q

WASHER

12

100345-09A

NUT

13

90545.5

Alternator Belt

14

01605.5

Screw

15

000350-03W

WASHER

16

74335.1

Plug

17

89644.9

Compressor

18

54009.6

Screw

19

100345-09A

NUT

20

6909391

COMPRESSOR BRACKET

21

89647.2

Hose

22

81439.2

Condenser

23

88844.6

Hose

24

6911207

SUPPORT

25

66679.2

Rivet

26

85171.7

Thumb Screw

27

6911209

SUPPORT

28

6911210

SUPPORT

29

6913148

ADHESIVE SPONGE

30

6911201

SUPPORT

31

89643.1

Dryer

32

89642.3

Switch

33

89641.5

Bracket

34

01478.7

Screw

35

01695.6

Washer

36

100345-05V

NUT

37

89649.8

Hose

38

89648.0

Hose

39

15354.4

Screw

40

13416.3

Washer

41

88826.3

Plate

42

88827.1

Protector

43

6910951

SCREW

44

98071.4

O-ring

45

98068.0

O-ring

46

97358.6

Valve

47

7009978

O-RING Was 98070.6 - A

48

98069.8

O-ring

49

97359.4

Plate

50

96082.3

Evaporator

51

97265.3

Grill

52

97432.9

Thermostat

53

01591.7

Screw

54

01696.4

Washer

55

71921.1

Nut

56

88830.5

Plate

57

66679.2

Rivet

58

01591.7

Screw

59

01696.4

Washer

60

100345-06W

NUT

61

88848.7

Hose

62

57792.4

Fuse 7.5A

63

6625575

FUSE, 20A 20A

64

80224.9

Relay

65

6921416

PROTECTOR

66

96083.1

Wiring

67

AIRCO MANUAL

68

GAS R-134A NLA Was 88030.2 - A

69

OIL, COMPRESSOR NLA Was 88029.4 - A

70

7009978

O-RING Was 98070.6 - A

71

98068.0

O-ring

72

88825.5

Switch W/Ref. 73-76

73

6914433

CLIM BUTTON

74

6925361

NUT

75

6914431

PLATE

76

88825.5

Switch Was 6925362 - A

Выбрано товаров: 76
