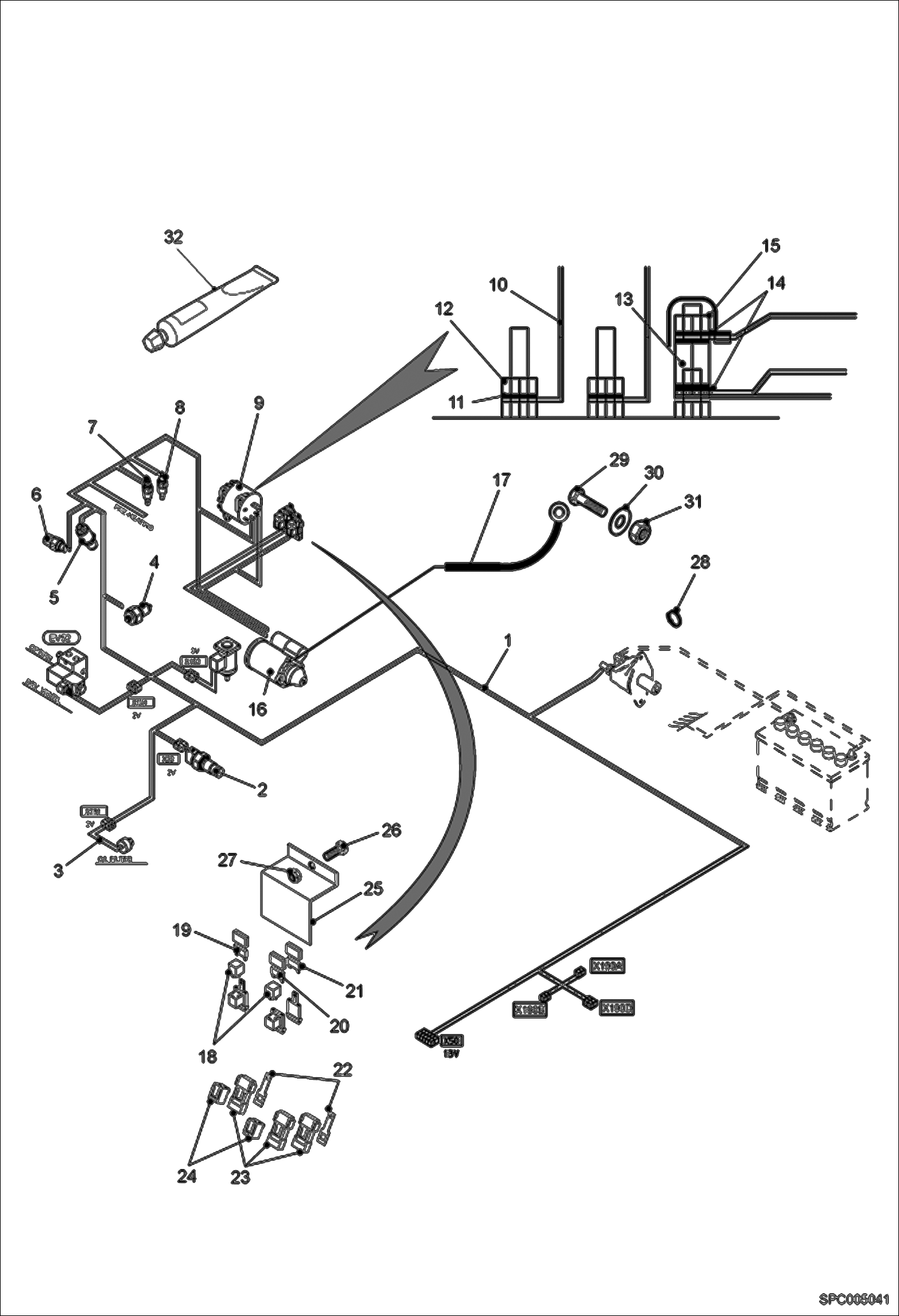

Запчасти Bobcat T3571L ELECTRICAL CIRCUIT ENGINE ELECTRICAL SYSTEM

1

6915845

ENGINE WIRING HARNESS Was 6911724 - B

2

6917185

SENDER, TEMP OIL HYD

3

6912549

FILTER, PLUGGING INDICATOR

4

26278.2

Oil Pressure Switch

5

7022466

SOLENOID 12V Was 97175.4 - A

6

6911895

THERMOSTAT

7

6911911

SENDER

8

6911400

WATER SWITCH TEMPER.

9

6911377

ALTERNATOR ESA 85 AMP (EUROPE)

10

79926.2

Terminal

11

13415.5

Washer

12

4DM5

NUT Was 01665.9 - A

13

96613.5

Spacer

14

13416.3

Washer

15

01666.7

Nut

16

6911913

STARTER MOTOR

17

018472-83R

CABLE

18

79930.4

Relay black

19

6909767

FUSE 70 A 70A

20

79947.8

Fuse 50 Amp 50A

21

79946.0

Fuse 40A

22

79945.2

Support

23

79951.0

Safety support

24

79931.2

Relay support

25

6916979

PROTECTOR Was 78895.0

26

1CM820

BOLT Was 01596.6 - B

27

01681.6

Nut Was 51851.4 - B

28

7214998

STRAP, TIE Was 50917.4 - A

29

01606.3

Screw

30

000350-03W

WASHER

31

100345-09A

NUT

32

6901596

GREASE
