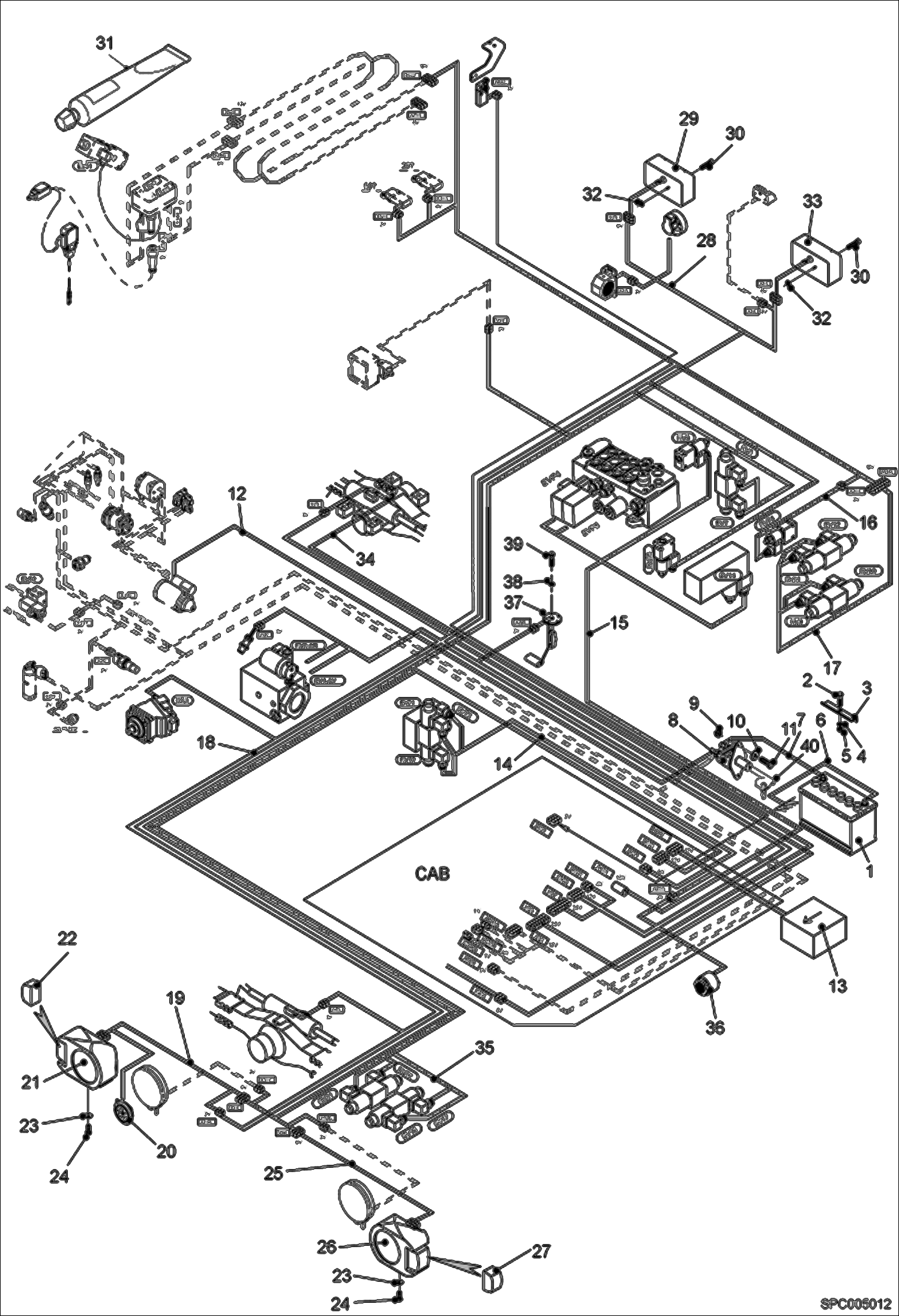

Запчасти Bobcat T3571L ELECTRICAL CIRCUIT CHASSIS ELECTRICAL SYSTEM

1

7223985

BATTERY Was 6914907 - A

2

01598.2

Screw

3

77136.0

Bracket

4

000350-02V

WASHER

5

01681.6

Nut Was 51851.4 - B

6

78869.5

Negative Battery Cable negative

7

79861.1

Positive Battery Cable positive

8

65764.3

Circuit Breaker W/Ref. 40

9

100345-06W

NUT

10

000350-01U

WASHER

11

01591.7

Screw

13

6914946

Inclinometer Was 6911367 - A

14

6910891

WIRE HARNESS

15

6911357

HARNESS , VALVE

16

6913674

HARNESS

17

96589.7

Wire harness

18

6911726

HARNESS , MAIN

19

6917889

HARNESS Was 96587.1

20

100417-11D

HORN

21

79533.6

Front Light Assembly, RH RH - W/Ref. 22

21

6666570

BULB 40W Was 000405-62P - A

21

27362.3

Bulb 4W

22

27089.2

Bulb 21W

22

59758.3

Light, RH

23

01718.6

Washer

24

1CM820

BOLT Was 01596.6 - B

25

79539.3

Front Light Wire Harness, LH LH

26

79534.4

Front Light Assembly, LH LH - W/Ref. 27

26

6666570

BULB 40W Was 000405-62P - A

26

27362.3

Bulb 4W

27

59948.0

Light, LH

27

27089.2

Bulb 21W

28

98087.0

Wire harness

29

7225546

LIGHT, REAR RH Was 82265.0 - A

29

97260.4

Glass

29

27089.2

Bulb 21W

29

6909955

BULB 21/5W

30

100329-01C

SCREW Was 33786.5 - A

31

6901596

GREASE

32

7225547

WASHER Was 6921479 - A

33

7225545

LIGHT, REAR LH Was 82266.8 - A

33

97261.2

Glass

33

27089.2

Bulb 21W

33

6909955

BULB 21/5W

34

6914109

SENSOR, LOAD

35

6910892

Wire harness

36

BUZZER Was 90913.5 - A

37

6933959

FUEL GAUGE Was 6918308 - C

38

13415.5

Washer

39

6918271

SCREW

40

66181.9

CIRCUIT BREAKER KEY
