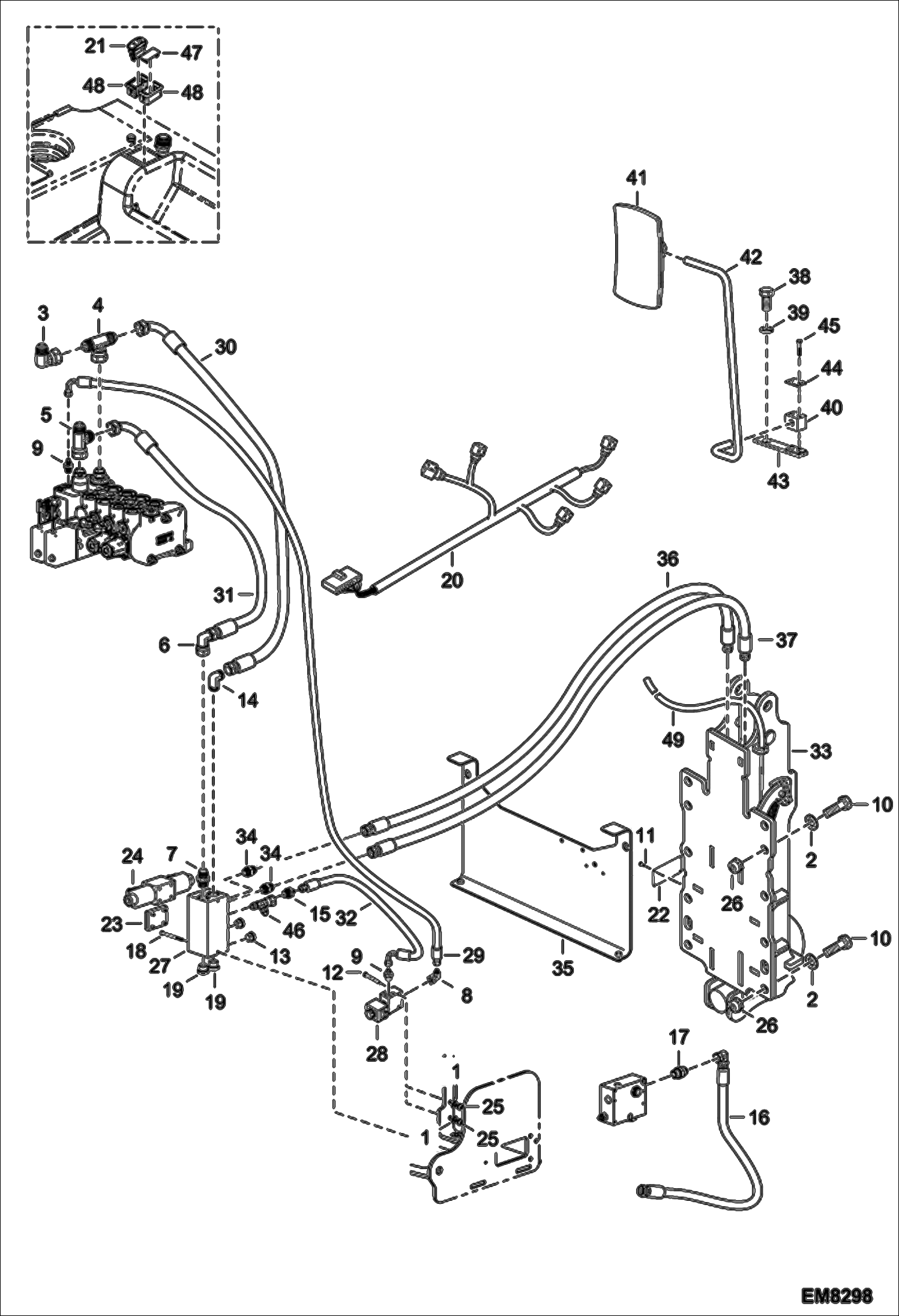

Запчасти Bobcat T3571L REAR HYDRAULIC HOOK INSTALLATION (S/N A8HF15000 & Above, A8H615000 & Above) ACCESSORIES & OPTIONS

1

000350-01U

WASHER

2

000350-08C

WASHER

3

008372-14Q

ELBOW

4

008372-21X

TEE

5

008372-34M

UNION

6

010370-90W

ELBOW PIECE

7

014375-30H

UNION

8

7186826

COUPLER, QUICK FEMALE

9

022375-28V

UNION

10

1CM2060

SCREW Was 39584.8 - A

11

43824.2

Rivet

12

1CM650

SCREW Was 48829.6 - A

13

56029.2

Plug

14

65285.9

Elbow

15

65614.0

Union

16

65715.5

Hose

17

008372-01B

ELBOW PIECE

18

68566.9

Screw

19

78743.2

Drain plug

20

96589.7

Wire harness

21

6927721

SWITCH, HYD HOOK

22

PLATE NAP

23

98353.6

Plate

24

98360.1

Union

25

100345-06W

NUT

26

100345-20M

NUT

27

6911079

HYDRAULIC BLOCK

28

6911845

SOLENOID 2-2

29

6933605

HOSE, HYD

30

6913675

FLEXIBLE

31

6913675

FLEXIBLE

32

6933606

HOSE, HYD

33

6917366

HOOK See Illustration REAR HYDRAULIC HOOK/ EM5349

34

6919773

UNION

35

6922478

REAR HOOD

36

6925927

HOSE

37

6925927

HOSE

38

01620.4

Screw

39

15323.9

Washer

40

7179623

SLEEVE Was 61358.8 - A

41

63860.1

Mirror

42

79300.0

Pipe

43

84648.5

Plate

44

100228-57K

COVER

45

100338-23F

SCREW

46

69485.1

T- union

47

7178513

CAP, SOCKET

48

7178511

SOCKET, END

49

7009791

CABLE PULL
