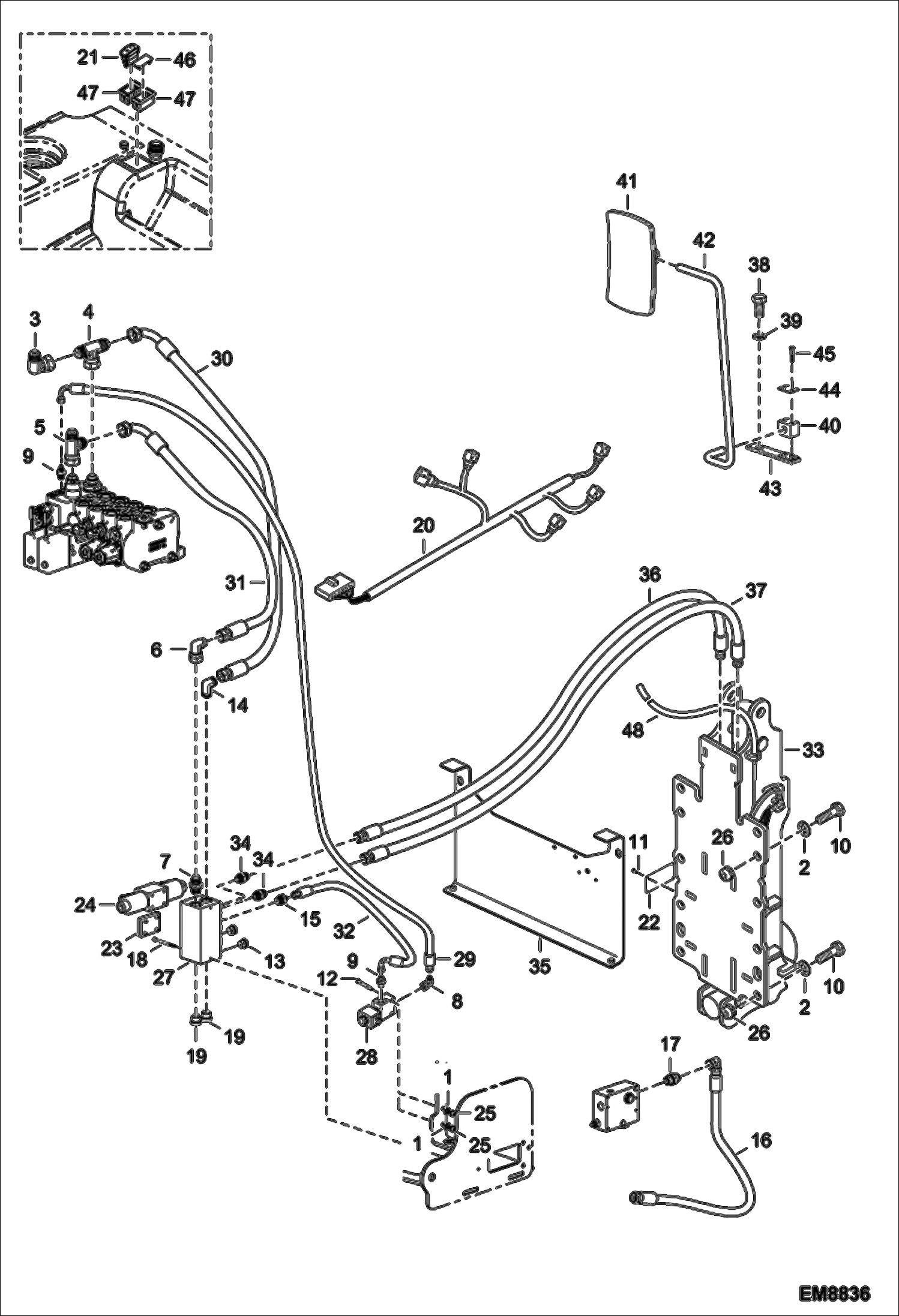

Запчасти Bobcat T3571L REAR HYDRAULIC HOOK INSTALLATION (S/N A8HF11001 - 14999, A8H611001 - 14999) ACCESSORIES & OPTIONS

1

000350-01U

WASHER

2

000350-08C

WASHER

3

008372-14Q

ELBOW

4

008372-21X

TEE

5

008372-34M

UNION

6

010370-90W

ELBOW PIECE

7

014375-30H

UNION

8

7186826

COUPLER, QUICK FEMALE Was 95993.2 - A

9

022375-28V

UNION

10

1CM2060

SCREW Was 39584.8 - A

11

43824.2

Rivet

12

1CM650

SCREW Was 48829.6 - A

13

56029.2

Plug

14

65285.9

Elbow

15

65614.0

Union

16

65715.5

Hose

17

008372-01B

ELBOW PIECE

18

68566.9

Screw

19

78743.2

Drain plug

20

96589.7

Wire harness

21

96598.8

Switch (proportional)

21

6927721

SWITCH, HYD HOOK

22

PLATE NAP

23

98353.6

Plate

24

98360.1

Union

25

100345-06W

NUT

26

100345-20M

NUT

27

6911079

HYDRAULIC BLOCK

28

6911845

SOLENOID 2-2

29

6912226

FLEXIBLE

30

6913675

FLEXIBLE

31

6913675

FLEXIBLE

32

6916079

HOSE

33

6917366

HOOK Was 82425.0

34

6919773

UNION Was 100375-38S

35

6922478

REAR HOOD Was 6919717

36

6925927

HOSE

37

6925927

HOSE

38

01620.4

Screw Was 96467.6

39

15323.9

Washer

40

7179623

SLEEVE Was 61358.8 - A

41

63860.1

Mirror

42

79300.0

Pipe

43

84648.5

Plate

44

100228-57K

COVER

45

100338-23F

SCREW

46

7178513

CAP, SOCKET

47

7178511

SOCKET, END

48

7009791

CABLE PULL
