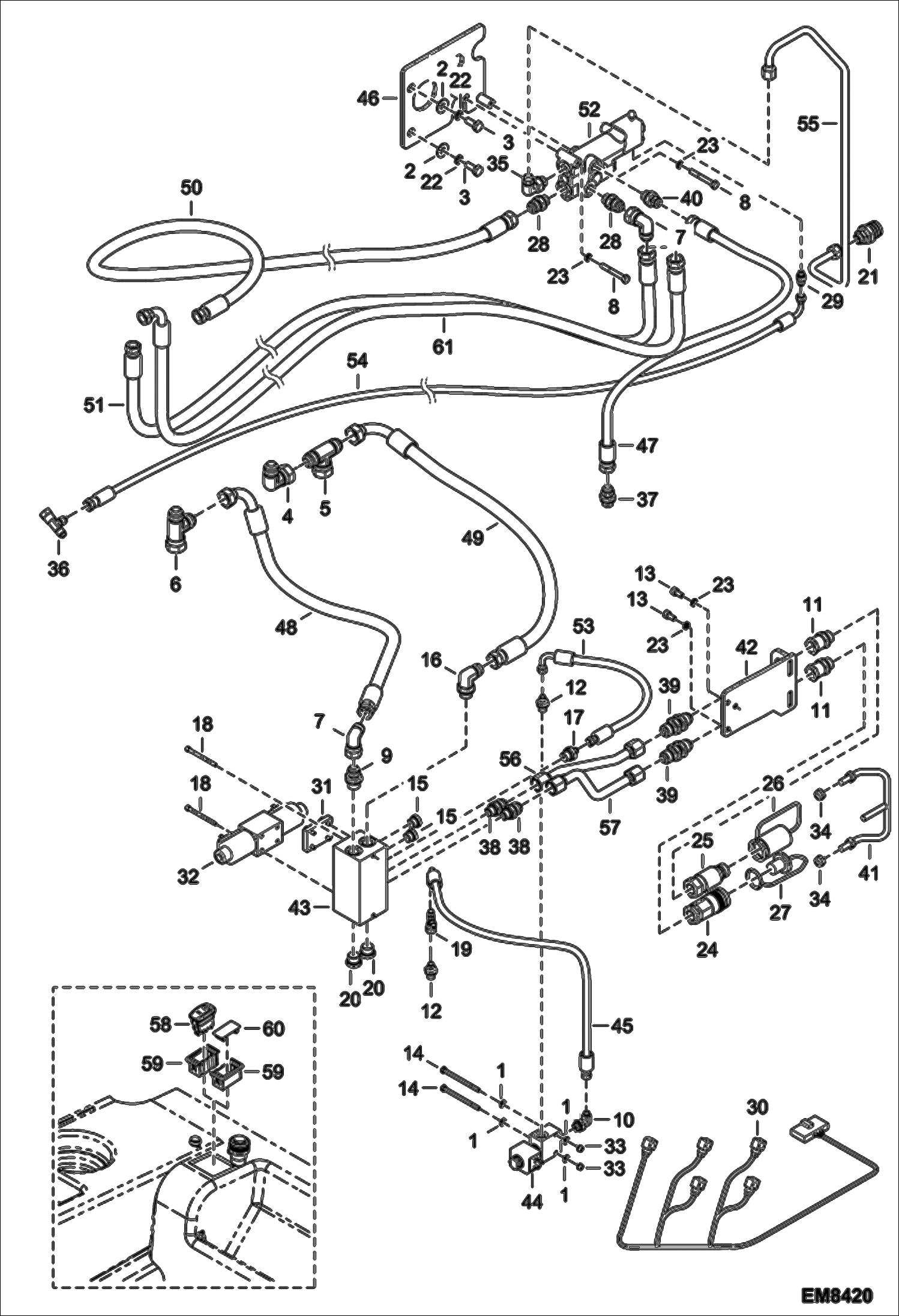

Запчасти Bobcat T3571L REAR AUXILIARY HYDRAULICS & TRAILER BRAKE (S/N A8HF11001 - 14999, A8H611001 - 14999) ACCESSORIES & OPTIONS

1

000350-01U

WASHER

2

000350-21R

WASHER

3

01605.5

Screw

4

008372-14Q

ELBOW

5

008372-21X

TEE

6

008372-34M

UNION

7

010370-90W

ELBOW PIECE

8

10947.0

Screw

9

014375-30H

UNION

10

7186826

COUPLER, QUICK FEMALE Was 95993.2 - A

11

7225156

FITTING, HYD Was 022375-06W - A

12

022375-28V

UNION

13

6GM816

SCREW Was 29649.1 - A

14

1CM650

SCREW Was 48829.6 - A

15

56029.2

Plug

16

65285.9

Elbow

17

65614.0

Union

18

68566.9

Screw

19

69485.1

T- union

20

78743.2

Drain plug

21

79170.7

Coupling

22

7225260

WASHER Was 89516.9 - A

23

89519.3

Washer

24

7186826

COUPLER, QUICK FEMALE Was 95993.2 - A

25

7225159

COUPLER, HYD Was 95994.0 - A

26

7225160

CAP, COUPLER Was 96513.7 - A

27

7225161

CAP, COUPLER Was 96514.5 - A

28

96568.1

Union

29

96580.6

Union

30

96589.7

Wire harness

31

98353.6

Plate

32

98360.1

Union

33

100345-06W

NUT

34

100345-09A

NUT

35

7228465

FITTING, HYD ELBOW Was 100370-06P - A

36

100372-06G

UNION

37

100375-38S

UNION

38

100375-39T

UNION 7/8 JIC 3/8 BSP

39

100375-52H

UNION

40

100375-56M

UNION

41

6910517

PROTECTOR

42

6910523

SUPPORT

43

6911079

HYDRAULIC BLOCK

44

6911845

SOLENOID 2-2

45

6912226

FLEXIBLE

46

6913021

Support

47

6913650

Hose

48

6913675

FLEXIBLE

49

6913675

FLEXIBLE

50

6913684

Hose

51

6913684

Hose

52

6915262

VALVE

53

6916079

HOSE

54

6916961

HOSE

55

6917437

Tube

56

6922003

HYDRAULIC TUBE

57

6922004

HYDRAULIC TUBE

58

96599.6

Rear Option Switch

58

6927725

SWITCH, REAR HYD

59

7178511

SOCKET, END

60

65784.1

Blank Plug

60

7178513

CAP, SOCKET

61

6917394

HOSE
