Запчасти Bobcat T3571L END BOOM ASSY MAIN FRAME

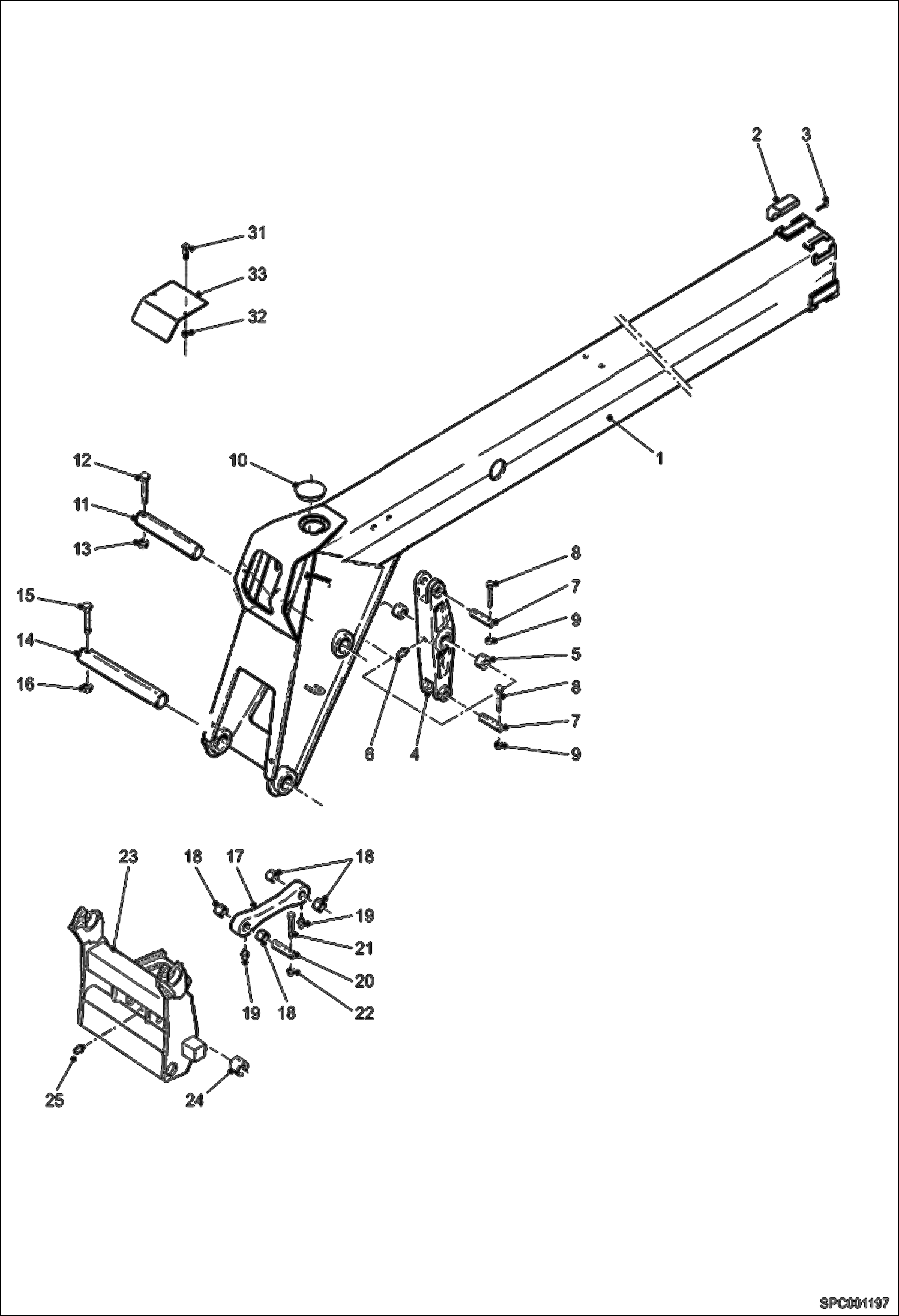

Схема запчастей Bobcat T3571L - END BOOM ASSY MAIN FRAME

Артикул

Название

Примечание

Количество

1

6935639

END BOOM ASSY Was 6921153 - B

2

88403.1

Wear Pad

3

6GM1040

SCREW Was 88540.0 - A

4

6919094

LINK, ARM DIPPER welded version - W/Ref. 4-5 - Optional Was 6913192 - B

4

6919094

LINK, ARM DIPPER welded version - W/Ref. 4-5 - Optional Was 79308.3

5

7213359

BEARING, SWING Was 77380.4 - A

6

01775.6

Grease Nipple

7

77411.7

Locating Pin

8

7CM10100

SCREW HEX Was 65397.2 - A

9

100345-09A

NUT

10

79137.6

Plug

11

77422.4

Locating Pin

12

82459.9

Screw

13

100345-09A

NUT

14

7214176

PIN Was 77421.6 - A

15

82459.9

Screw

16

100345-09A

NUT

17

84632.9

Connecting Arm (cast iron) moulded - W/Ref. 18 - Optional

17

6915025

CONNECTING ARM welded - W/Ref. 18 - Optional

18

72347.8

Bushing

19

01775.6

Grease Nipple

20

77411.7

Locating Pin

21

7CM10100

SCREW HEX Was 65397.2 - A

22

100345-09A

NUT

23

80631.5

Carriage Was 88457.7

24

7213359

BEARING, SWING Was 77380.4 - A

25

01775.6

Grease Nipple

31

4CM825

BOLT Was 01597.4 - B

32

01681.6

Nut Was 51851.4 - B

33

85466.1

Cover Plate

Выбрано товаров: 30
