Запчасти Bobcat T3571L FLYWHEEL AND DRIVE PULLEY POWER UNIT

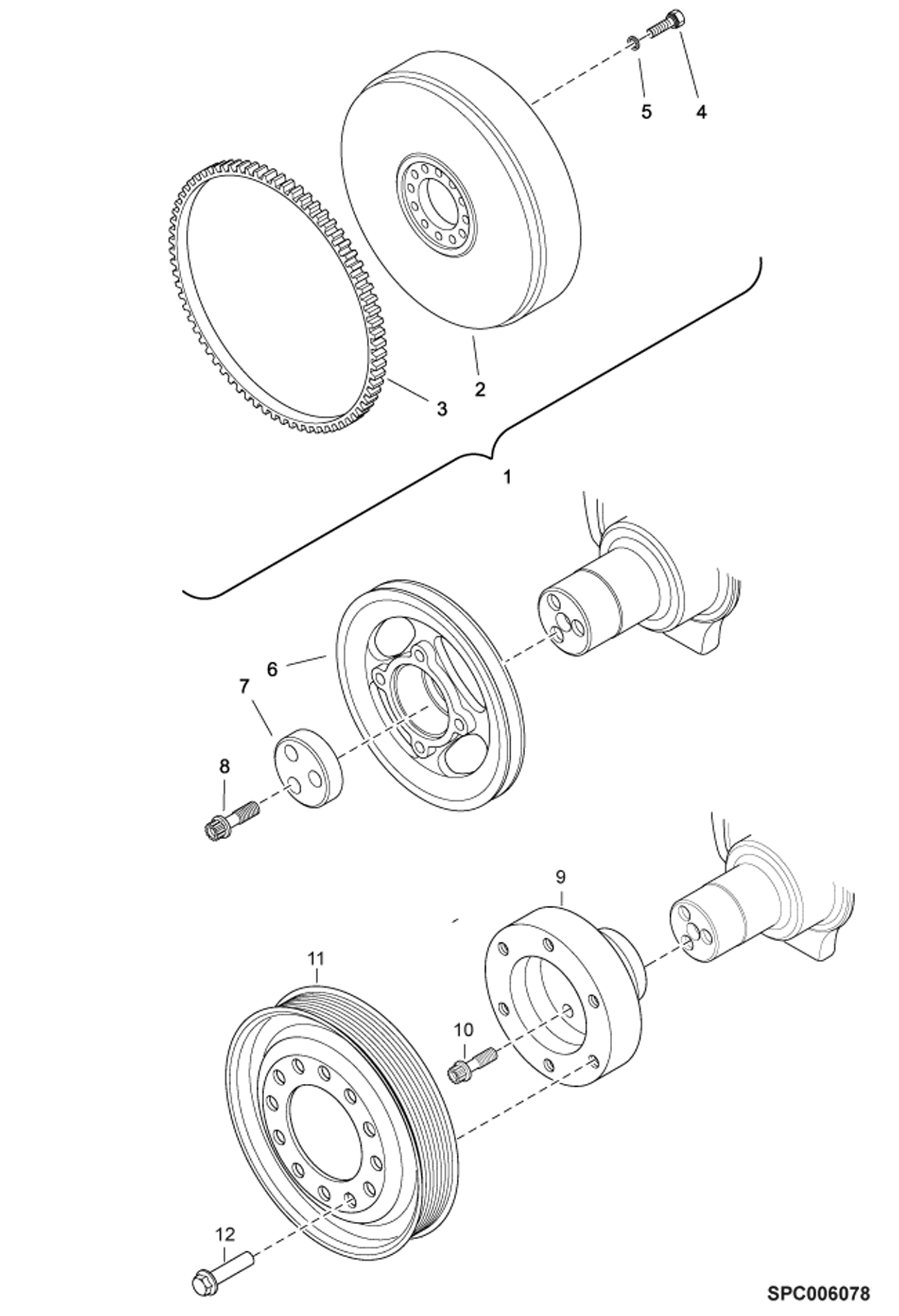

Схема запчастей Bobcat T3571L - FLYWHEEL AND DRIVE PULLEY POWER UNIT

Артикул

Название

Примечание

Количество

1

7022459

FLYWHEEL, ASSY W/Ref. 2-3 Was 81038.2 - A

2

FLYWHEEL NAP - Order Ref. 1

3

6515771

RING GEAR Was 55698.5 - A

4

6911851

SCREW

5

7022444

WASHER Was 71307.3 - A

6

75254.3

Pulley for engine S/N U0560074T and below

7

81037.4

Washer for engine S/N U0560074T and below

8

81036.6

Screw for engine S/N U0560074T and below

9

7022497

ADAPTOR for engine S/N U0560075T and above

10

7022498

BOLT for engine S/N U0560075T and above

11

7023987

PULLEY, CRANKSHAFT for engine S/N U0560075T and above

12

93301.0

SCREW for engine S/N U0560075T and above Was 7022464 - A

Выбрано товаров: 12
