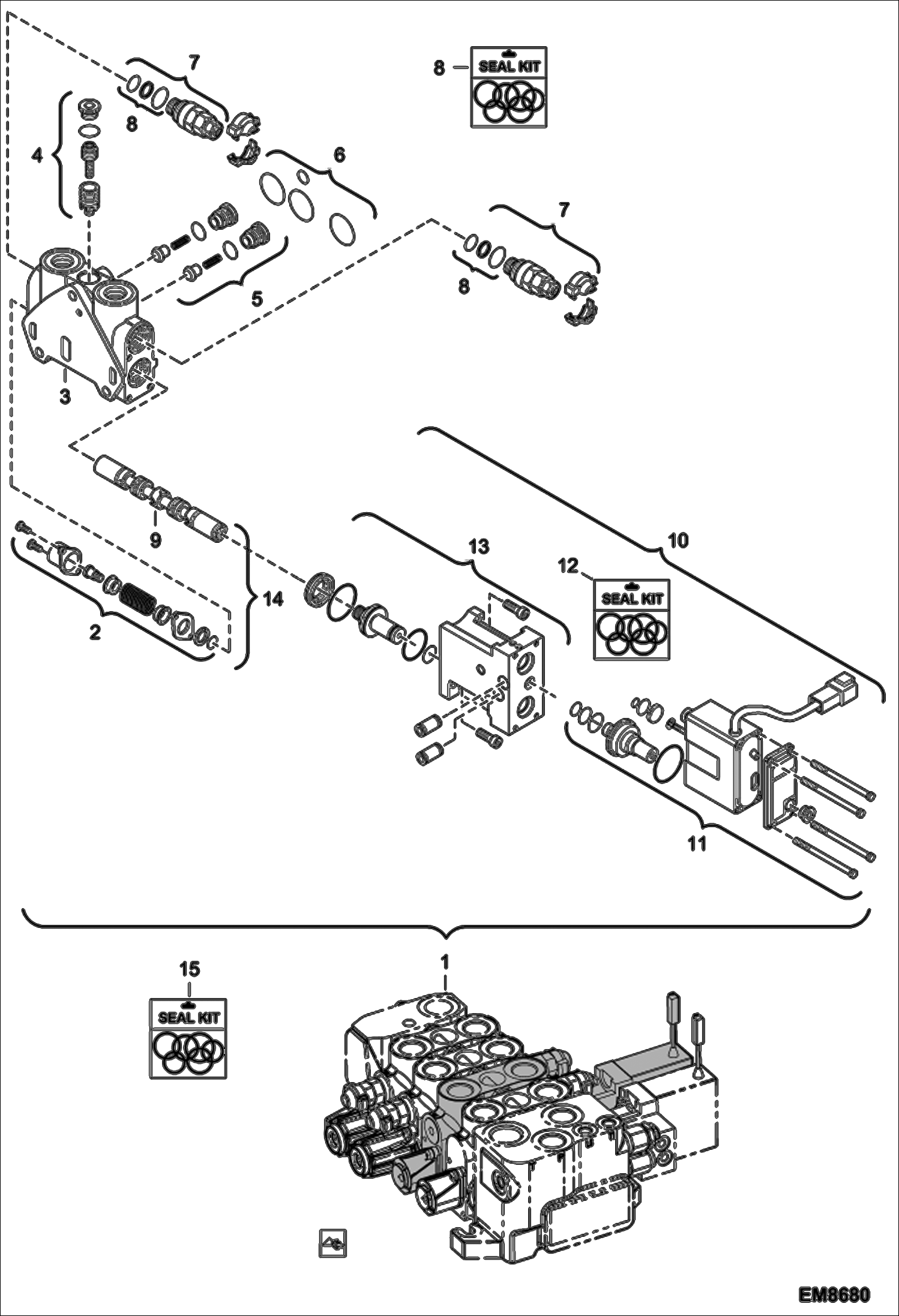

Запчасти Bobcat T3571L HYDRAULIC CONTROL VALVE (Telescope Section) (Vendor Partnumber 08 402 020) HYDRAULIC SYSTEM

1

SECTION, TELESCOPE See Illustration HYDRAULIC CONTROL VALVE/ EM8681 NAP - Vendor partnumber 08 402 020 - Ref. 2-13 Was 6910745 - A

2

6910714

SPOOL RETURN

3

VALVE NAP - Order Ref. 1

4

97302.4

Pressure compensator kit

5

97303.2

No return valve kit

6

97295.0

Set of seals

7

6685249

VALVE,RELIEF W/Ref. 8 Was 54090.6 - B,D

8

6910713

SEAL KIT

9

SPOOL, VALVE NAP - Order Ref. 14

10

7011973

ACTUATOR ELECTROHYDRAULIC W/Ref. 11-13 - Also order Ref. 15 (# 7011974; Kit, Spool) Was 6912126 - C

11

6910715

VALVE, TELESCOPIC

12

6910717

SEAL KIT

13

BLOCK, SERVO NAP- Order Ref. 10

14

7011974

SPOOL W/Ref 2 & 9 - Also order Ref. 10 (# 7011973; Servo, Electrohydraulic)

15

7012483

SEAL KIT
