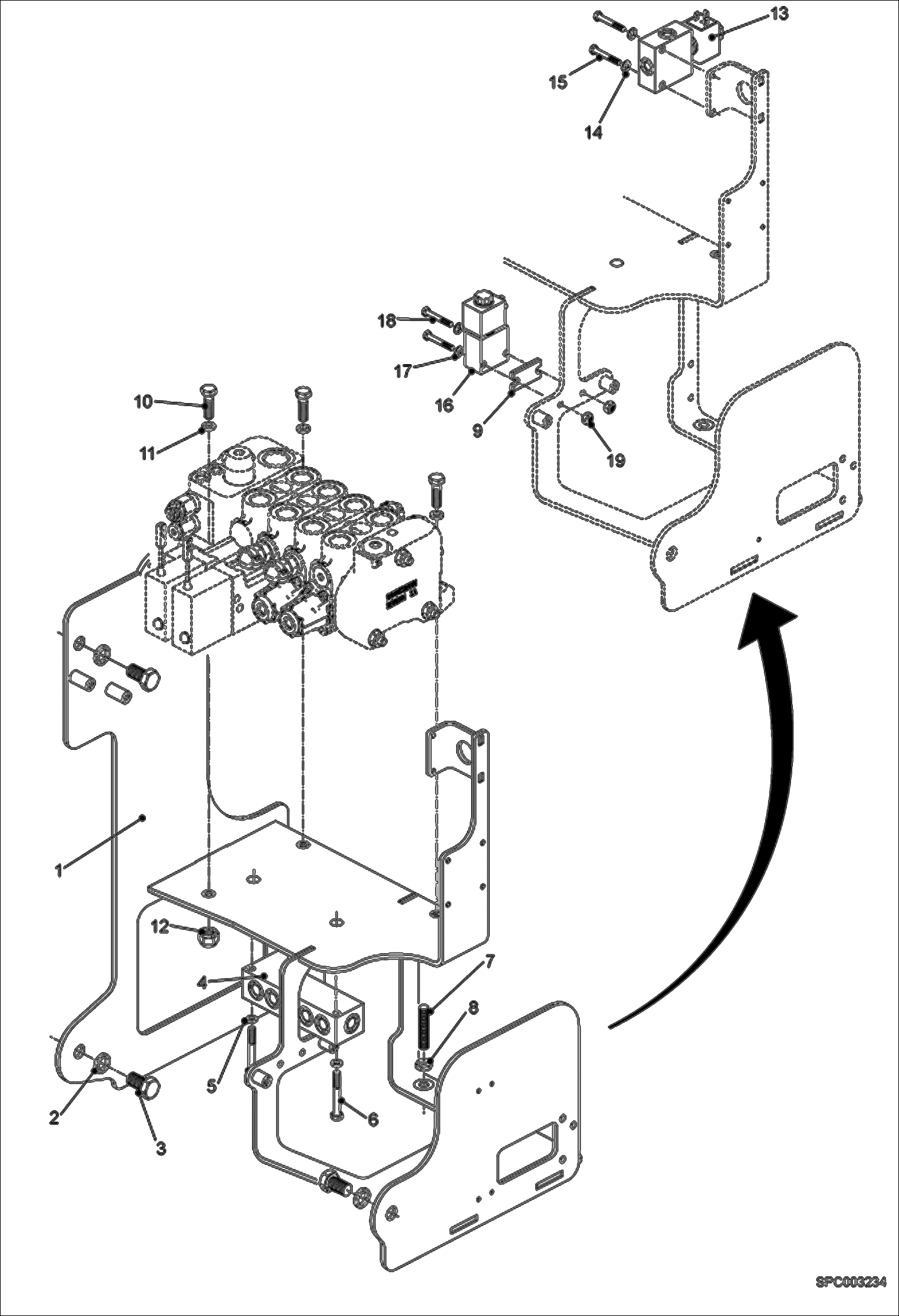

Запчасти Bobcat T3571L HYDRAULIC CONTROL VALVE FIXATION (S/N A8HF11001 - 14999, A8H611001 - 14999) HYDRAULIC SYSTEM

1

6915837

SUPPORT

2

89518.5

Washer

3

1CM1630

BOLT Was 10882.9 - A

4

6917692

HYDRAULIC BLOK

5

89519.3

Washer

6

10947.0

Screw

7

88946.9

Screw

8

01683.2

Nut

9

6912483

VALVE SPACER

10

1CM1040

BOLT Was 01608.9 - B

11

000350-21R

WASHER

12

100345-09A

NUT

13

6910208

VALVE 3/2 CE12V

14

94574.1

Washer

15

000326-25M

SCREW

16

6911845

SOLENOID 2-2

17

000350-01U

WASHER

18

1CM650

SCREW Was 48829.6 - A

19

100345-06W

NUT
