Запчасти Bobcat T3571L CAB HYDRAULIC INSTALLATION (W/O Accumulator) HYDRAULIC SYSTEM

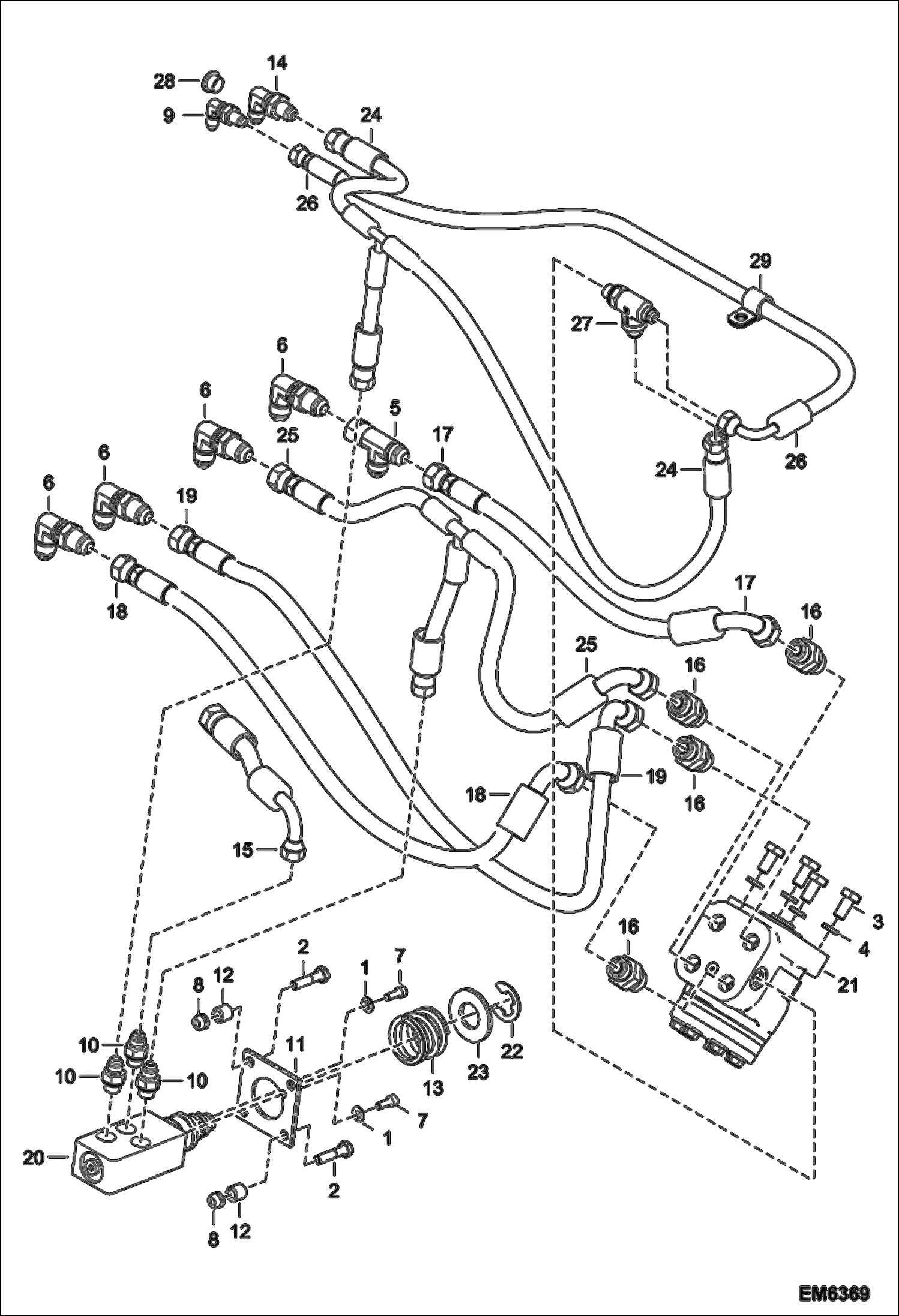

Схема запчастей Bobcat T3571L - CAB HYDRAULIC INSTALLATION (W/O Accumulator) HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

000350-01U

WASHER

2

01578.4

Screw

3

01604.8

Screw

4

01720.2

Washer

5

008372-02C

UNION

6

010370-87T

ELBOW PIECE

7

15354.4

Screw

8

01681.6

Nut Was 51851.4 - A

9

67196.6

Elbow

10

90289.0

Union

11

96054.2

Spacer

12

96061.7

Spacer

13

96656.4

Spring

14

100370-40B

ELBOW PIECE

15

6908595

HOSE

15

6934792

HOSE HYDRAULIC ASSY

16

6909839

FITTING 13/16 ORFS 1/2 BSPP

17

6915574

HOSE

18

6915575

HOSE

19

6915576

HOSE

20

6916227

REDUCER

20

6934976

BREAK PEDAL

21

6916334

STEERING BOX

22

6916595

RING

23

6917139

WASHER

24

6923958

HOSE

25

6923959

T-UNION

26

6923972

HOSE

27

6924039

TEE CHECK VALVE ASSEMBLY

28

6924503

PLUG

29

30H34

CLAMP

Выбрано товаров: 31
