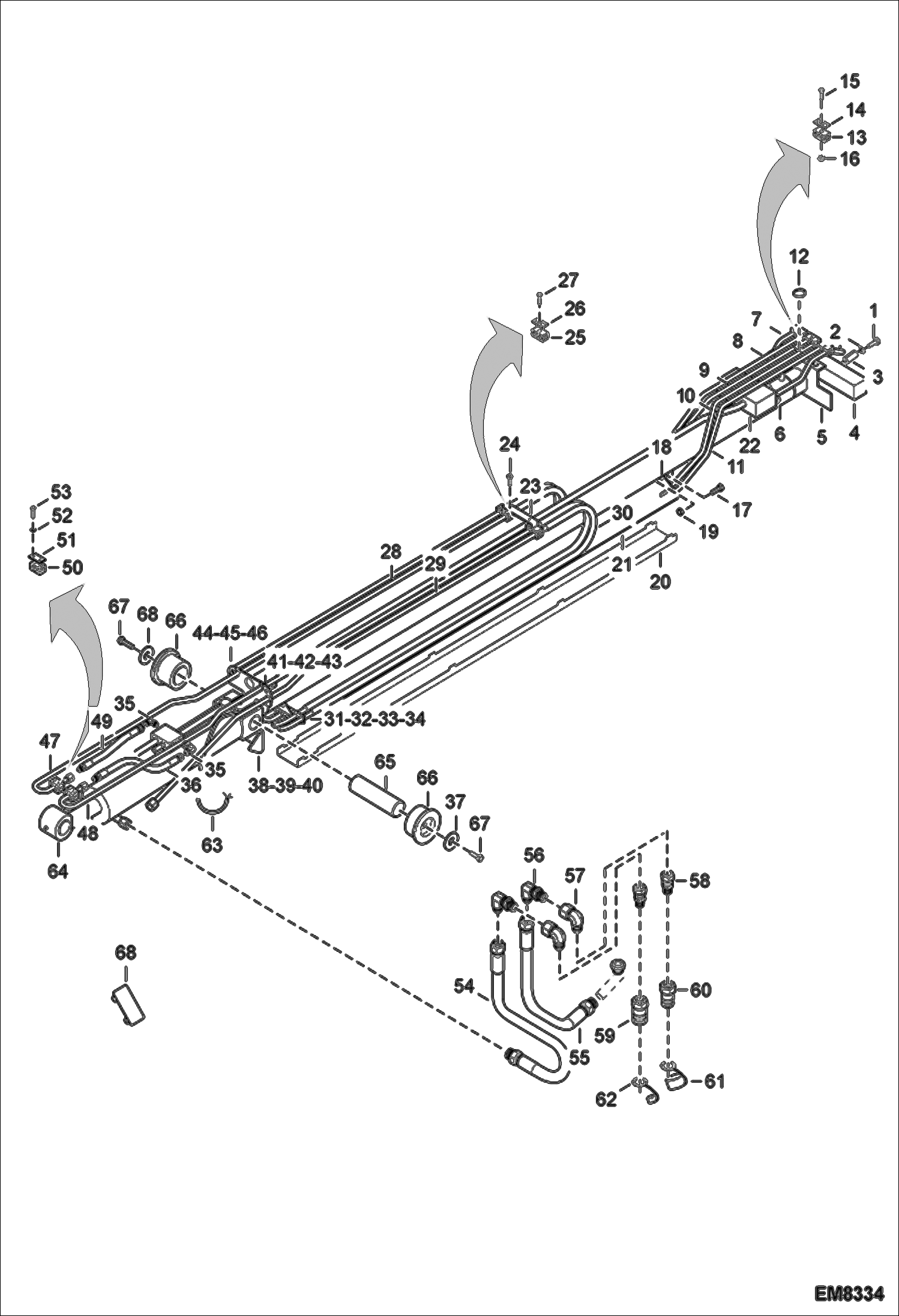

Запчасти Bobcat T3571L BOOM HYDRAULIC INSTALLATION HYDRAULIC SYSTEM

1

77492.7

Screw

2

89518.5

Washer

3

100357-03X

PIN

4

77798.7

Support

5

88523.8

Support

6

014375-30H

UNION

7

77792.0

Hydraulic pipe

8

77386.1

Tube

9

77387.9

Tube

10

77388.7

Tube

11

77389.5

Tube

12

6624289

STRAP, TIE

13

55932.8

Clamp

14

54215.9

Plate

15

01508.1

Screw

16

01681.6

Nut Was 51851.4 - B

17

01604.8

Screw

18

77791.2

Spacer

19

100345-09A

NUT

20

77396.0

Support

21

77652.6

Panel

22

CYLINDER ASSY, TELESCOPE See Illustration TELESCOPE CYLINDER/ SPC003058 NLA Was 6913007 - A

22

CYLINDER ASSY, TELESCOPE See Illustration TELESCOPE CYLINDER/ SPC003263 NLA Was 6924515 - A

22

6927069

TELESCOPE CYLINDER See Illustration TELESCOPE CYLINDER/ EM8430

23

89390.9

Bracket

24

1CM816

BOLT Was 01595.8 - A

25

55932.8

Clamp

26

54215.9

Plate

27

01578.4

Screw

28

77777.1

Hose

29

77778.9

Hose

30

77397.8

Hose

31

77655.9

Pin

32

77402.6

Support

33

01604.8

Screw

34

100345-09A

NUT

35

65285.9

Elbow

36

94414.0

Hose

37

6923051

WASHER

38

77794.6

Support

39

7225260

WASHER Was 89516.9 - A

40

01604.8

Screw

41

77784.7

Support

42

7225260

WASHER Was 89516.9 - A

43

01604.8

Screw

44

77394.5

Bracket

45

32090.3

Screw

46

100345-09A

NUT

47

90180.1

Tube

48

90179.3

Tube

49

80407.0

Hose

50

7179623

SLEEVE Was 61358.8 - A

51

61357.0

Welding plate

52

01717.8

Washer

53

001338-08T

SCREW

54

76367.2

Hose

55

77398.6

Hose

56

010370-57L

ELBOW UNION

57

010370-90W

ELBOW PIECE

58

7225156

FITTING, HYD Was 022375-06W - A

59

7186826

COUPLER, QUICK FEMALE Was 95993.2 - A

60

7225159

COUPLER, HYD Was 95994.0 - A

61

7225160

CAP, COUPLER Was 96513.7 - A

62

7225161

CAP, COUPLER Was 96514.5 - A

63

6916536

WIRE Was 96474.2 - A

64

CYLINDER, TILT See Illustration TILT CYLINDER/ SPC003174 NLA Was 6917920 - A

64

6926430

HYDRAULIC CYLINDER See Illustration TILT CYLINDER/ EM7435

65

SPINDLE NAP - 219 mm (8.62'') long Was 6923053 - C

65

SPINDLE NLA Was 6926838 - A

66

PLUG NAP - used W/Ref. 65 (NAP/6923053) spindle Was 6923052 - C

66

PLUG NLA Was 6926830 - A

67

84630.3

Screw

68

7178513

CAP, SOCKET
