Запчасти Bobcat T3571L PEDALS INSTALLATION MAIN FRAME

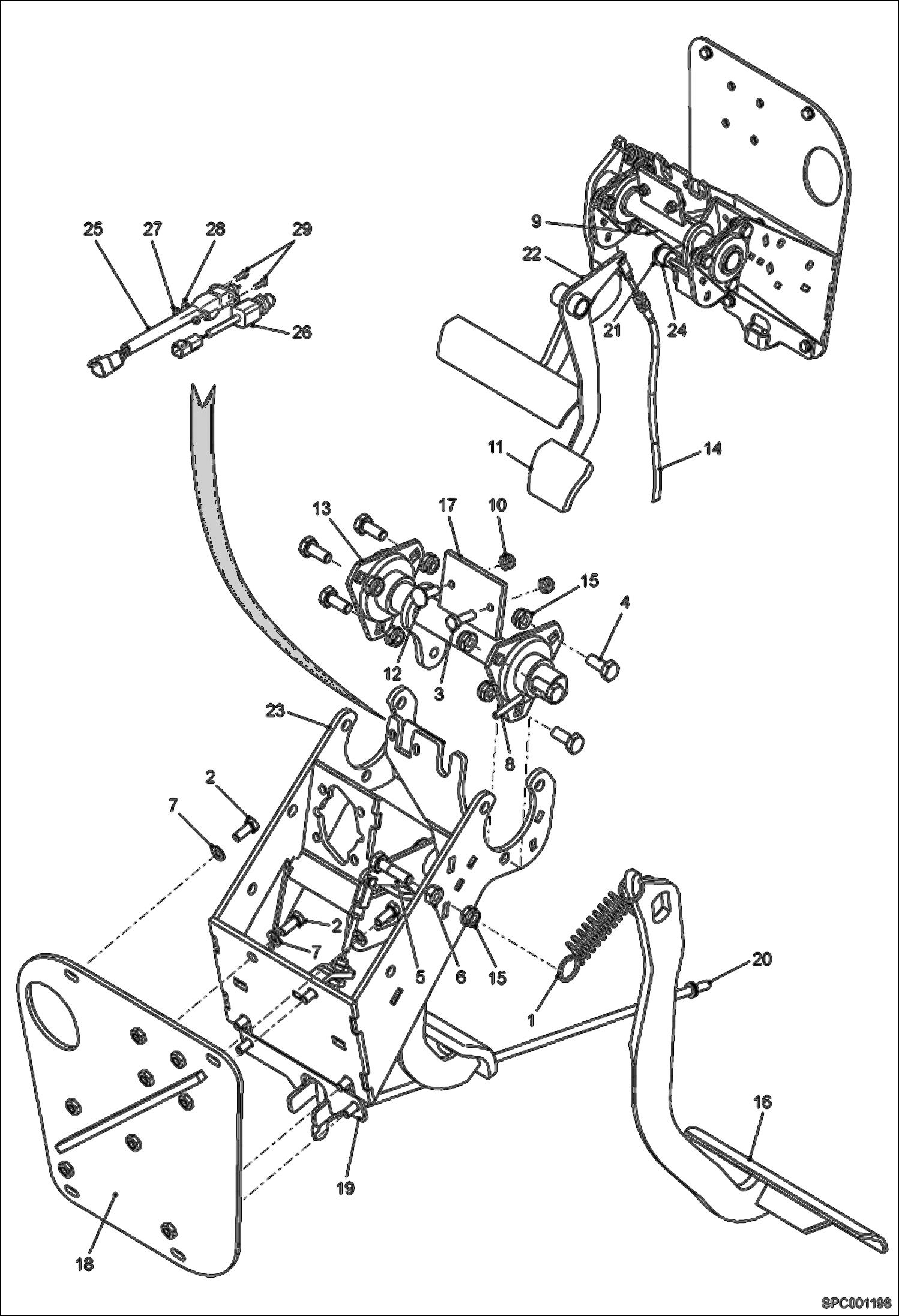

Схема запчастей Bobcat T3571L - PEDALS INSTALLATION MAIN FRAME

Артикул

Название

Примечание

Количество

1

01124.7

Spring

2

1CM820

BOLT Was 01596.6 - A

3

4CM825

BOLT Was 01597.4 - A

4

01605.5

Screw

5

1CM1040

BOLT Was 01608.9 - A

6

01669.1

Nut

7

01697.2

Washer

8

01739.2

Pin

9

01754.1

Pin

10

01681.6

Nut Was 51851.4 - A

11

59893.8

Pedal pad

12

62185.4

Screw

13

77919.9

Bracket

14

98240.5

Throttle Cable

14

6934801

CABLE THROTTLE

15

100345-09A

NUT

16

6908478

PEDAL , BRAKE Was 6917795 - A

17

6908479

PEDAL SHAFT

18

6909977

BRACKET

19

6910649

PEDAL STOP

20

6914781

RUBBER MOUNTING

21

6917140

WASHER

22

6917796

PEDAL

23

6924734

PEDAL SUPPORT Was 6917799 - A

24

6917802

BRACKET

25

SENSOR , INCHING NLA - Order 6934897 - Was 6909383 - A

26

6918227

SWITCH DETECTOR

27

100345-05V

NUT

28

6910952

WASHER JZC5

29

01478.7

Screw

Выбрано товаров: 30
