Запчасти Bobcat T3571L HEATING/VENTILATION (S/N A8HF12433 - 12999, A8H612053 - 12999) MAIN FRAME

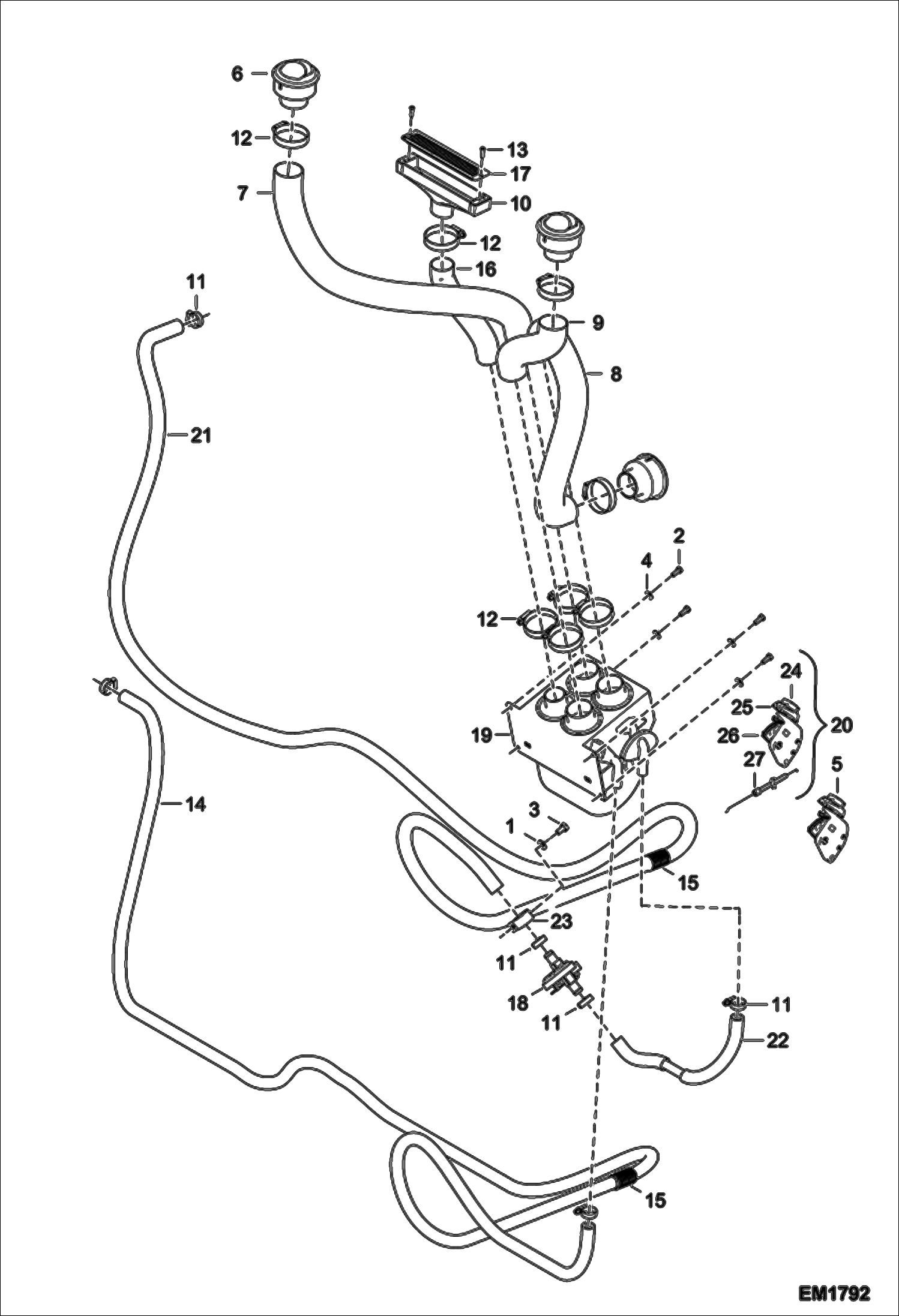

Схема запчастей Bobcat T3571L - HEATING/VENTILATION (S/N A8HF12433 - 12999, A8H612053 - 12999) MAIN FRAME

Артикул

Название

Примечание

Количество

1

000350-02V

WASHER

2

01590.9

Screw

3

1CM816

BOLT Was 01595.8 - A

4

01717.8

Washer

5

96608.5

Fan Speed Switch

6

97099.6

Directional Vent

7

97204.2

Pipe

8

97204.2

Pipe

9

97206.7

Pipe

10

7217216

LOUVER Was 97208.3 - A

11

100369-39Q

COLLAR

12

42HS30

CLAMP, HOSE Was 100369-80K - A

13

7235000

SCREW Was 6911846 - A

14

6913936

HOSE

15

6914082

HOT AIR

16

HOSE, HEATING NAP - Order 0,25 m of 6910699 Was 6915465 - D

17

7217218

LOUVER Was 6924354 - A

18

6927038

VALVE

19

7217346

HEATER See Illustration HEATING/VENTILATION FAN/ EM8370 Was 6927039 - A

20

6927040

CONTROLLER, HEATING Ref. 24-27

21

6927057

HOSE, HEATING

22

6927056

HOSE, HEATING

23

30H49

CLAMP

24

7012297

CONTROLLER

25

7012298

CAP

26

7012299

CONTROL BLOCK

27

7012300

CABLE

Выбрано товаров: 27
