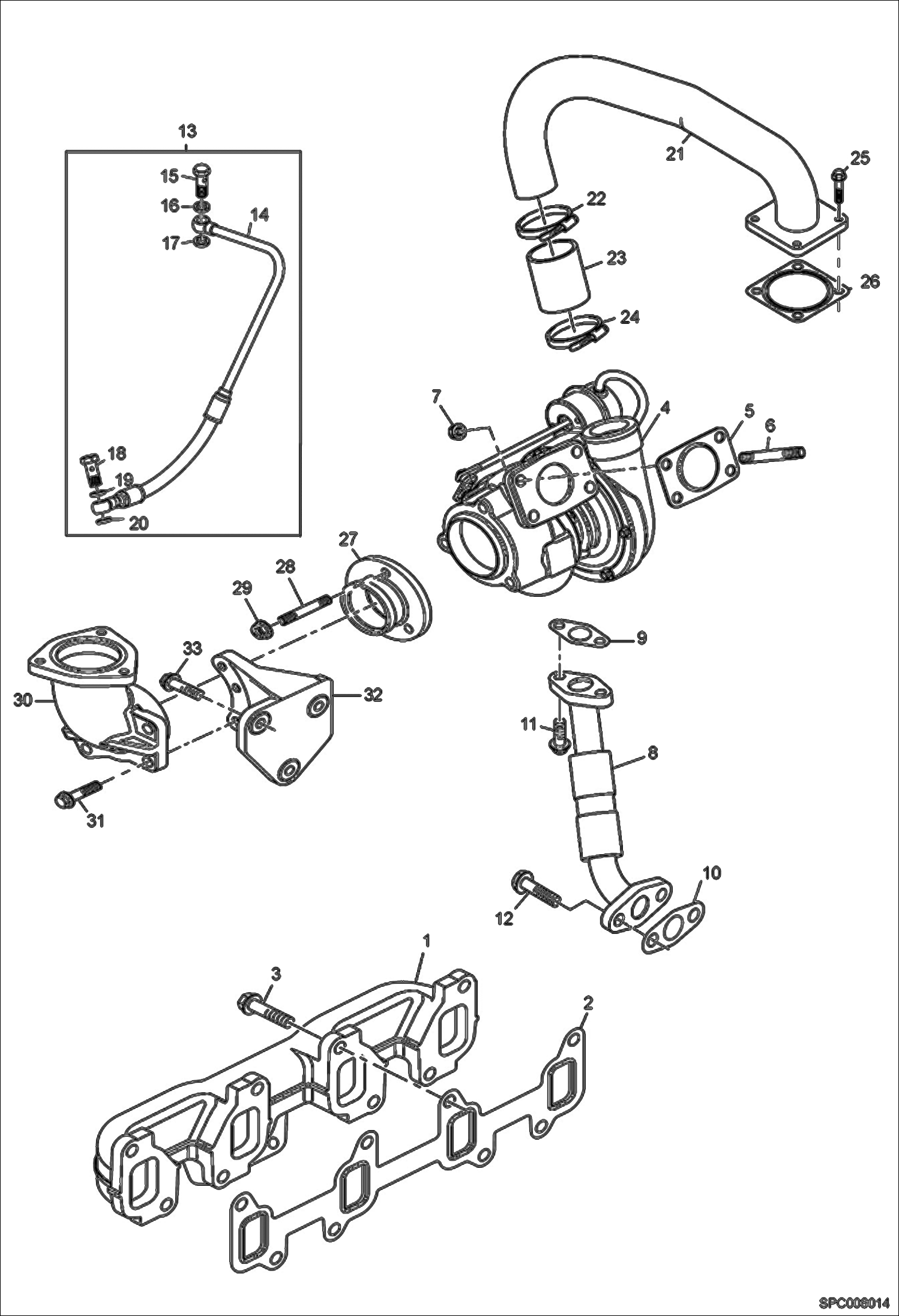

Запчасти Bobcat T3571L TURBOCHARGER POWER UNIT

1

7022470

MANIFOLD Was 6911993 - A

2

6911973

EXHAUST MANIFOLD JOINT

3

7022465

SCREW Was 93408.3 - A

4

6911909

TURBOCHARGER

4

6911909REM

TURBOCHARGER, PERKINS 1104C-44T

5

6671635

GASKET Was 6911978 - A

6

6911867

STUD

7

6668569

NUT Was 7022455 - A

8

6911957

TURBO DRAIN PIPE

9

6911979

SEAL

10

6911980

SEAL

11

93321.8

Screw

12

6668212

SCREW Was 7022440 - A

13

6912008

TURBO FEED PIPE W/Ref. 14-20

14

PIPE Order Ref. 13

15

6911935

BANJO BOLT

16

6911862

WASHER

17

6911862

WASHER

18

6911935

BANJO BOLT

19

6911862

WASHER

20

6911862

WASHER

21

6911955

AIR PIPE

22

6911889

HOSE CLIP

23

6911949

HOSE

24

6911889

HOSE CLIP

25

6668258

SCREW Was 7022449 - A

26

6911981

SEAL

27

6911948

ADAPTOR

28

6911867

STUD

29

6668569

NUT Was 7022455 - A

30

6911992

EXHAUST ELBOW

31

71346.1

Screw

32

6924333

BRACKET Was 6911998 - B

33

71286.9

Screw
