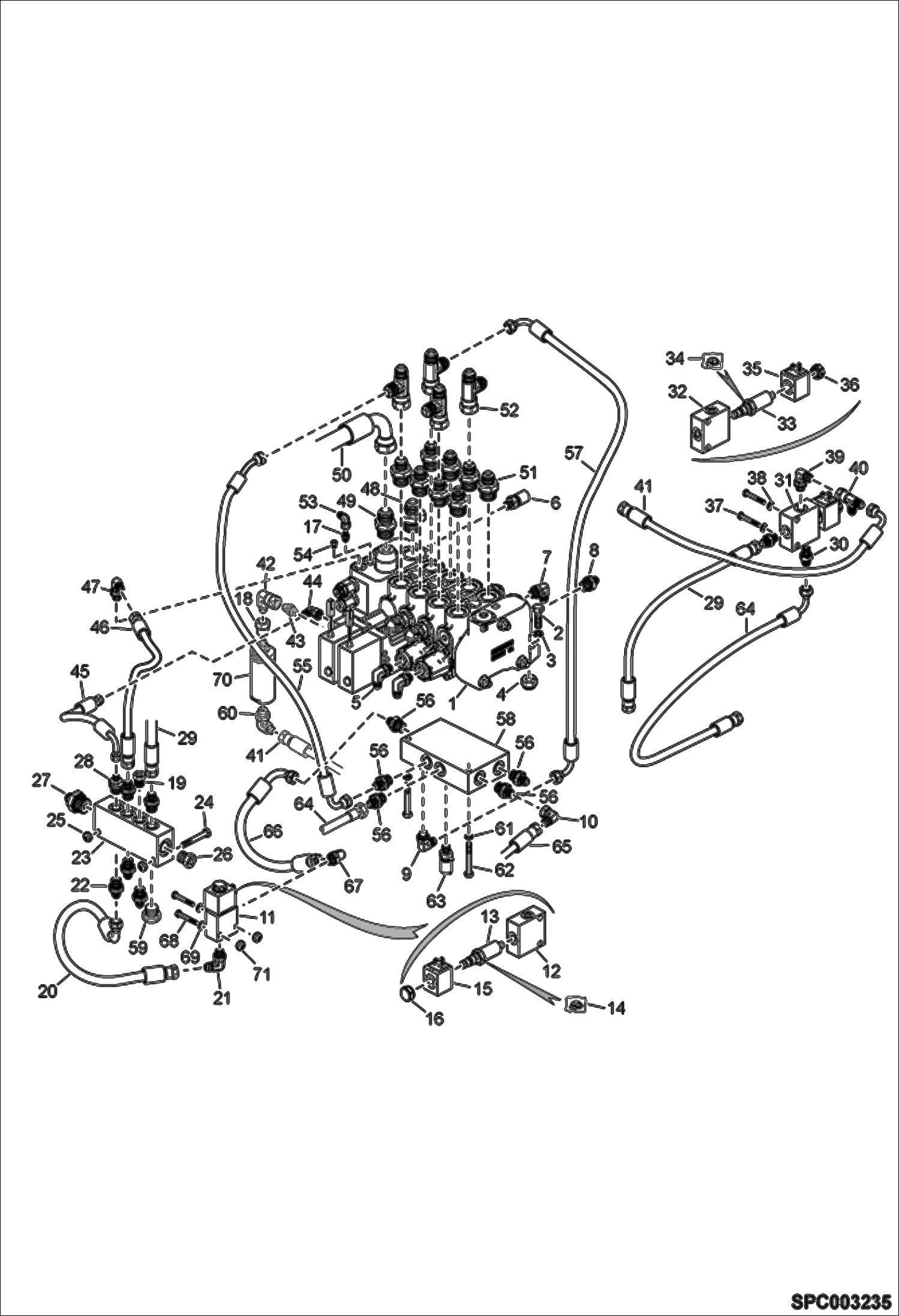

Запчасти Bobcat T3571L HYDRAULIC CONTROL VALVE INSTALLATION HYDRAULIC SYSTEM

1

CONTROL VALVE ASSY See Illustration HYDRAULIC CONTROL VALVE/ EM8675 NAP Was 6912484 - A

2

1CM1040

BOLT Was 01608.9 - B

3

000350-21R

WASHER

4

100345-09A

NUT

5

100370-18C

ELBOW PIECE

6

54367.8

PORT, PRESSURE TEST

7

100370-18C

ELBOW PIECE

8

022375-31Z

UNION

9

6918652

ELBOW UNION

10

100370-29P

ELBOW PIECE

11

6911845

SOLENOID 2-2 W/Ref. 12-16

12

BLOCK NLA - Order Ref. 11

13

6912531

VALVE

14

6912547

SET OF SEALS

15

6912528

COIL

16

6912529

NUT

17

022375-28V

UNION

18

022375-30X

UNION

19

56029.2

Plug

20

85283.0

Hose

21

100370-18C

ELBOW PIECE

22

77013.1

Adapter

23

6910822

MANIFOLD , RETURN

24

10947.0

Screw

25

01681.6

Nut Was 51851.4 - B

26

69187.3

Plug

27

100375-59Q

UNION 3/4 JIC 3/4 BSP

28

65614.0

Union

29

6911817

HOSE, HYD

30

022375-31Z

UNION

31

6910208

VALVE 3/2 CE12V

32

BLOCK NLA - Order Ref. 31

33

6912527

VALVE

34

KIT, SEALS NLA - Order Ref. 31

35

6912528

COIL

36

6912529

NUT

37

000326-25M

SCREW

38

94574.1

Washer

39

100370-18C

ELBOW PIECE

40

100372-06G

UNION

41

6913655

HOSE

42

100370-29P

ELBOW PIECE

43

82181.9

Union

44

85955.3

Elbow

45

6913658

HOSE

46

6911817

HOSE, HYD

47

100370-18C

ELBOW PIECE

48

68609.7

Union

49

100375-40U

UNION

50

6910390

HOSE

51

014375-02C

UNION 7/8 JIC 3/4 BSPP

52

008372-28F

UNION

53

72294.2

Elbow union

54

56028.4

Plug

55

6913559

HOSE

56

77013.1

Adapter

57

6918017

HOSE

58

6917692

HYDRAULIC BLOK Was 6910660 - A

59

56029.2

Plug

60

100370-18C

ELBOW PIECE

61

89519.3

Washer

62

01508.1

Screw Was 10947.0 - B

63

54367.8

PORT, PRESSURE TEST

64

6913655

HOSE

65

6913656

HOSE

66

6914033

HOSE

67

100370-18C

ELBOW PIECE

68

1CM650

SCREW Was 48829.6 - A

69

000350-01U

WASHER

70

6919913

OIL FILTER

71

100345-06W

NUT
