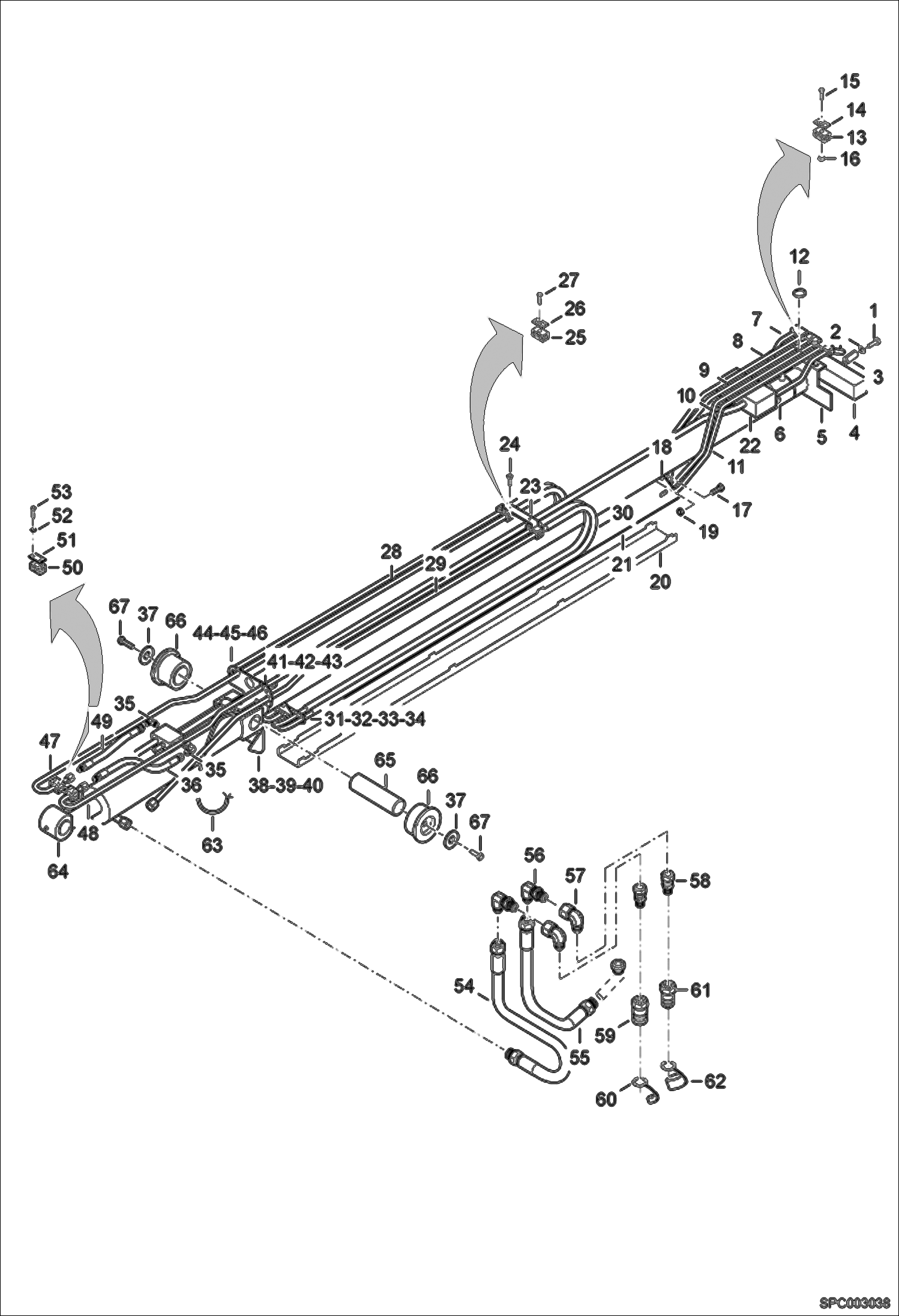

Запчасти Bobcat T3571L BOOM HYDRAULIC INSTALLATION HYDRAULIC SYSTEM

1

77492.7

Screw

2

89518.5

Washer

3

100357-03X

PIN

4

77798.7

Support

5

88523.8

Support

6

014375-30H

UNION

7

77792.0

Hydraulic pipe

8

77386.1

Tube

9

77387.9

Tube

10

77388.7

Tube

11

77389.5

Tube

12

6624289

STRAP, TIE

13

55932.8

Clamp

14

54215.9

Plate

15

01508.1

Screw

16

01681.6

Nut Was 51851.4 - B

17

01604.8

Screw

18

77791.2

Spacer

19

100345-09A

NUT

20

77396.0

Support

21

77652.6

Panel

22

CYLINDER ASSY, TELESCOPE See Illustration TELESCOPE CYLINDER/ SPC003057 NLA Was 6912582 - A

22

CYLINDER ASSY, TELESCOPE See Illustration TELESCOPE CYLINDER/ SPC003058 NLA Was 6913007 - A

22

CYLINDER ASSY, TELESCOPE See Illustration TELESCOPE CYLINDER/ SPC003263 NLA Was 6924515 - A

22

6927069

TELESCOPE CYLINDER See Illustration TELESCOPE CYLINDER/ EM8430

23

89390.9

Bracket

24

1CM816

BOLT Was 01595.8 - A

25

55932.8

Clamp

26

54215.9

Plate

27

01578.4

Screw

28

77777.1

Hose

29

77778.9

Hose

30

77397.8

Hose

31

77655.9

Pin

32

77402.6

Support

33

01604.8

Screw

34

100345-09A

NUT

35

65285.9

Elbow for tilt cylinder 6917920

35

014375-30H

UNION for tilt cylinder 6926430

36

94414.0

Hose for tilt cylinder 6917920

36

6925869

HOSE for tilt cylinder 6926430

37

6923051

WASHER

38

77794.6

Support

39

7225260

WASHER Was 89516.9 - A

40

01604.8

Screw

41

77784.7

Support

42

7225260

WASHER Was 89516.9 - A

43

01604.8

Screw

44

77394.5

Bracket

45

32090.3

Screw

46

100345-09A

NUT

47

90180.1

Tube

48

90179.3

Tube

49

80407.0

Hose for tilt cylinder 6917920

49

6925870

HOSE for tilt cylinder 6926430

50

7179623

SLEEVE Was 61358.8 - A

51

61357.0

Welding plate

52

01717.8

Washer

53

001338-08T

SCREW

54

76367.2

Hose

55

77398.6

Hose

56

010370-57L

ELBOW UNION

57

010370-90W

ELBOW PIECE

58

7225156

FITTING, HYD Was 022375-06W - A

59

7186826

COUPLER, QUICK FEMALE Was 95993.2 - A

60

7225161

CAP, COUPLER Was 96514.5 - A

61

7225159

COUPLER, HYD Was 95994.0 - A

62

7225160

CAP, COUPLER Was 96513.7 - A

63

6916536

WIRE Was 96474.2 - A

64

CYLINDER, TILT See Illustration TILT CYLINDER/ SPC003059 NLA Was 90788.1 - A

64

CYLINDER, TILT See Illustration TILT CYLINDER/ SPC003174 NLA Was 6917920 - A

64

6926430

HYDRAULIC CYLINDER See Illustration TILT CYLINDER/ EM7435

65

84627.9

Pivot pin

66

84626.1

Plug

67

84630.3

Screw
