Запчасти Bobcat T3571L REAR HYDRAULIC FUNCTION ACCESSORIES & OPTIONS

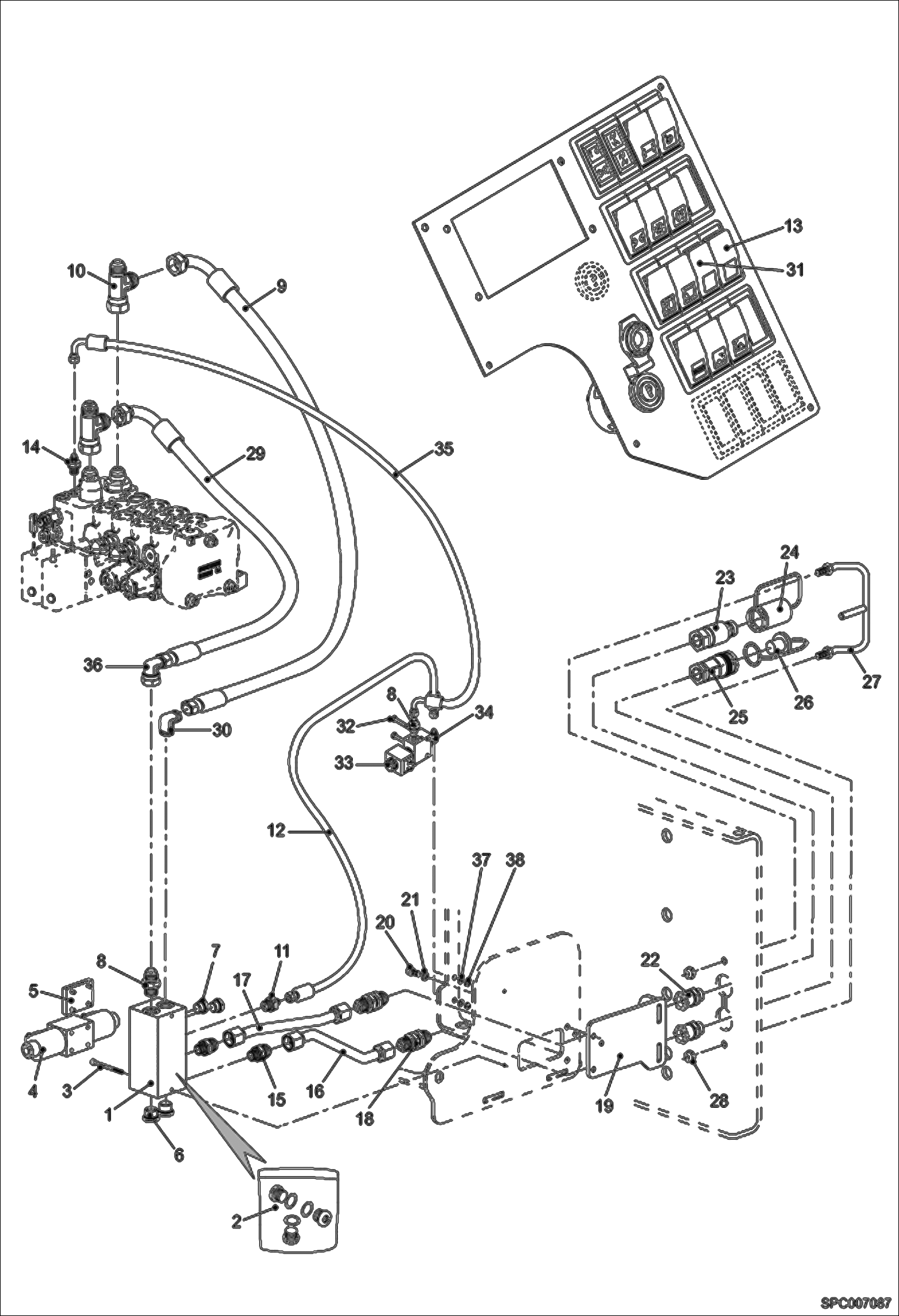

Схема запчастей Bobcat T3571L - REAR HYDRAULIC FUNCTION ACCESSORIES & OPTIONS

Артикул

Название

Примечание

Количество

1

6911079

HYDRAULIC BLOCK

2

6912535

SET OF PLUG

3

68566.9

Screw

4

98360.1

Union

5

98353.6

Plate

6

78743.2

Drain plug

7

56029.2

Plug

8

014375-30H

UNION

9

6913675

FLEXIBLE

10

008372-34M

UNION

11

65614.0

Union

12

65285.9

Elbow

13

65784.1

Blank Plug

14

022375-28V

UNION

15

100375-39T

UNION 7/8 JIC 3/8 BSP

16

6910512

HYDRAULIC PIPE

17

6910513

HYDRAULIC PIPE

18

100375-52H

UNION

19

6910523

SUPPORT

20

6GM816

SCREW Was 29649.1 - A

21

89519.3

Washer

22

7225156

FITTING, HYD Was 022375-06W - A

23

7225159

COUPLER, HYD Was 95994.0 - A

24

7225160

CAP, COUPLER Was 96513.7 - A

25

7186826

COUPLER, QUICK FEMALE Was 95993.2 - A

26

7225161

CAP, COUPLER Was 96514.5 - A

27

6910517

PROTECTOR

28

100345-09A

NUT

29

6913675

FLEXIBLE

30

010370-90W

ELBOW PIECE

31

96599.6

Rear Option Switch

32

1CM650

SCREW Was 48829.6 - A

33

6911845

SOLENOID 2-2

34

7186826

COUPLER, QUICK FEMALE Was 95993.2 - A

35

6912226

FLEXIBLE

36

010370-90W

ELBOW PIECE

37

000350-01U

WASHER

38

000345-06W

Nut

Выбрано товаров: 38
