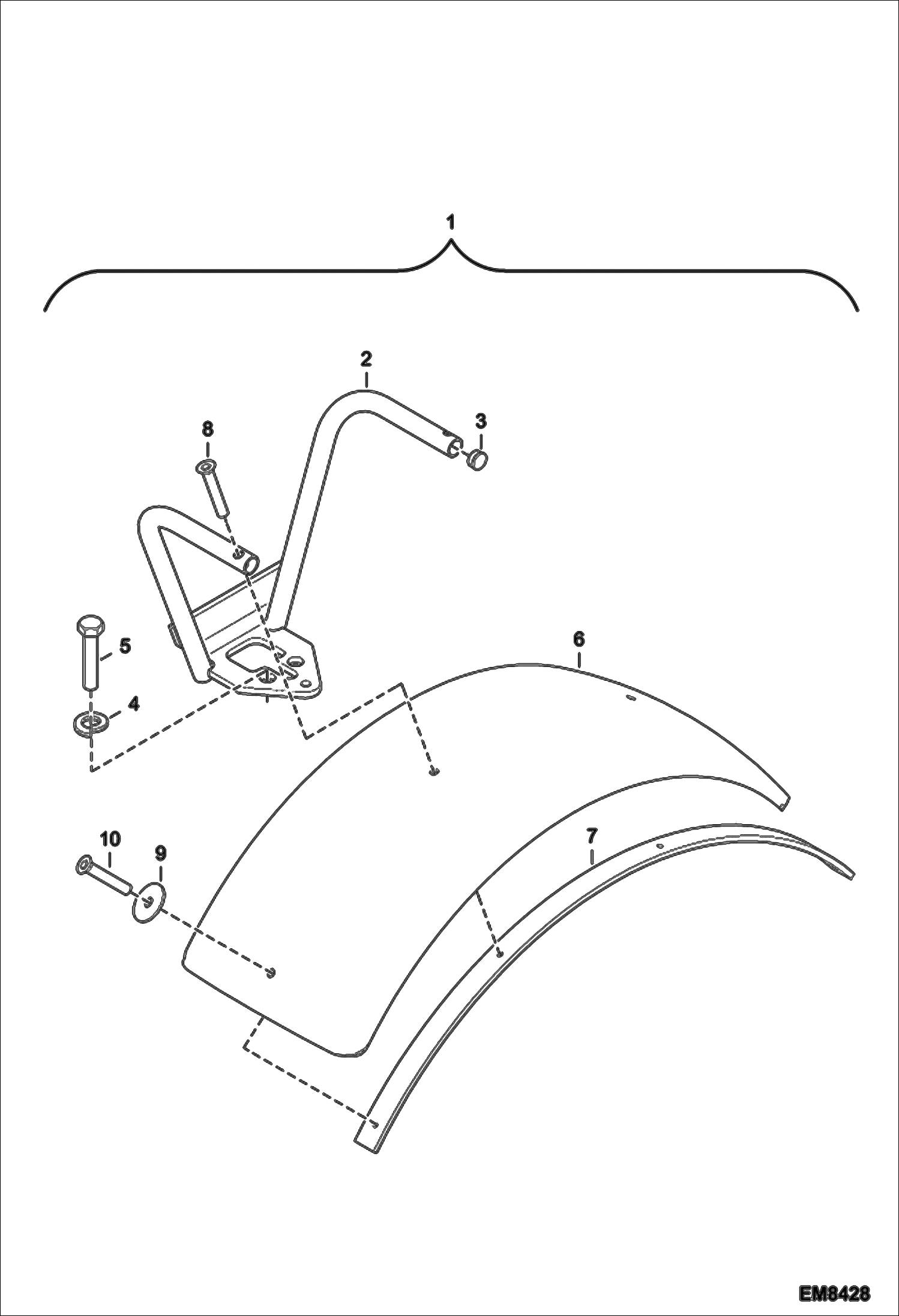

Запчасти Bobcat T3571L MUDGUARD 20 ACCESSORIES & OPTIONS

1

MUDGUARD 20'' NAP - Order components - W/Ref. 2-10 Was 7001791 - D

2

6913008

MUDGUARD SUPPORT

3

7236335

CAP Was 79297.8 - A

4

89332.1

Washer

5

76029.8

Screw

6

78568.3

Mudguard

7

6908094

REINFORCEMENT PLATE Was 79292.9 - A

8

7236337

SCREW Was 79293.7 - A

9

001350-04T

WASHER

10

79294.5

Screw
