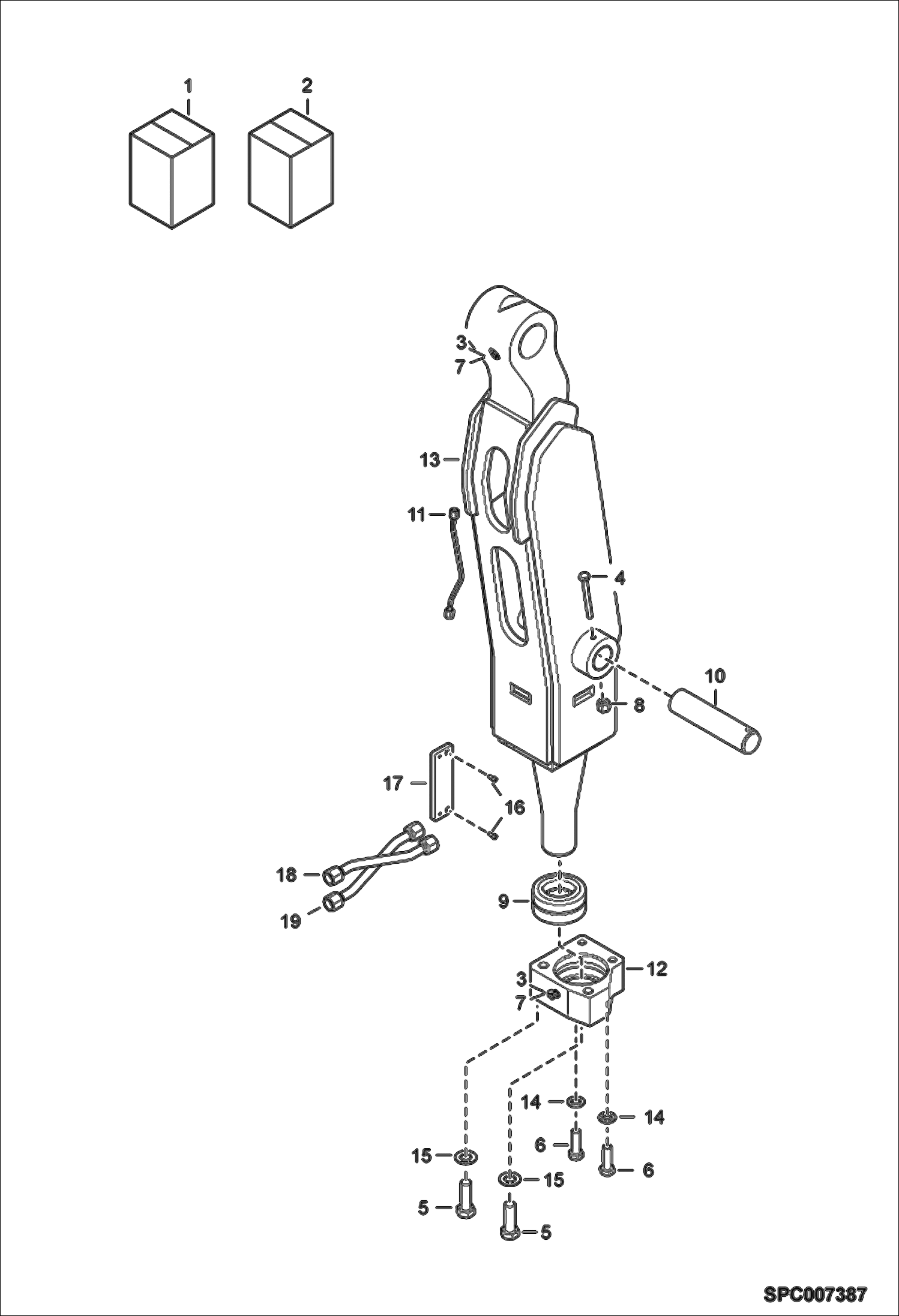

Запчасти Bobcat T3571L HD BRACE KIT ACCESSORIES & OPTIONS

1

6922122

KIT CRADLE CARRARO WITH OPTION AR W/ Rear option - W/Ref. 3-19

2

6922123

KIT CRADLE CARRARO WITHOUT OPTION AR W/O rear option - W/O Rear option - W/Ref. 3-15

3

01775.6

Grease Nipple

4

7CM10100

SCREW HEX Was 65397.2 - A

5

84992.7

SCREW

6

84997.6

Screw

7

98581.2

Cap

8

100345-09A

NUT

9

6977789

KNEE JOINT

10

6919005

PIN

11

6921480

HYDRAULIC PIPE

12

6977787

SUPPORT

13

6977795

CRADLE (CARRARO AXLE) NSS

14

000350-06A

WASHER

15

000350-08C

WASHER

16

6918271

SCREW W/ Rear option

17

6977791

PLATE W/ Rear option

18

6977792

PIPE W/ Rear option

19

6977793

PIPE W/ Rear option
