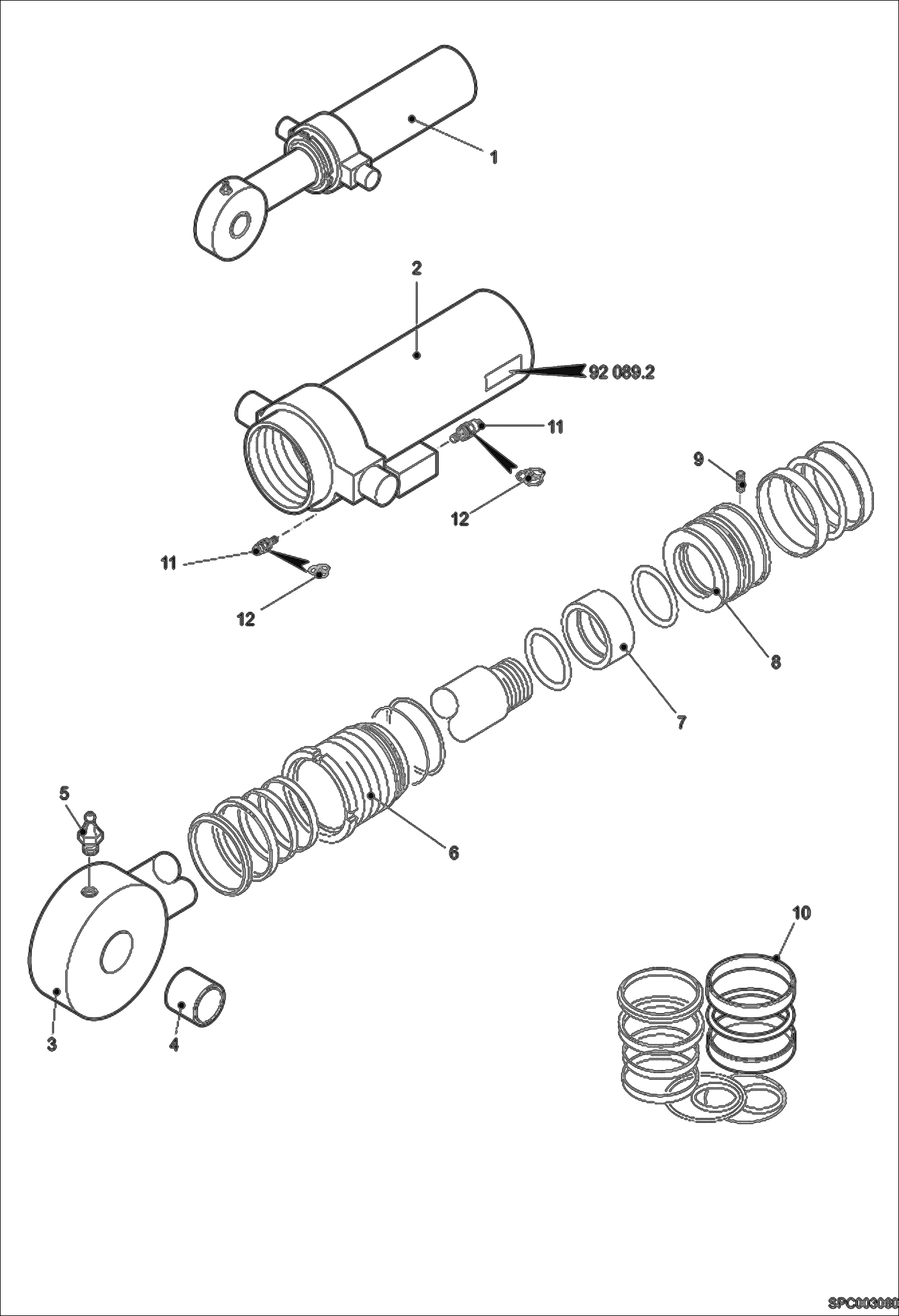

Запчасти Bobcat T3571 FRAME LEVEL CYLINDER HYDRAULIC SYSTEM

1

92089.2

Frame Level Cylinder Assembly W/Ref. 2-12

2

93982.7

Cylinder Barrel

3

93983.5

Rod

4

75181.8

Bushing

5

93683.1

Grease nipple

6

93984.3

Head

7

93986.8

Spacer

8

93985.0

Piston

9

93682.3

Screw

10

93981.9

Seal Kit

11

100377-32D

VALVE

12

100496-04H

SEAL KIT
