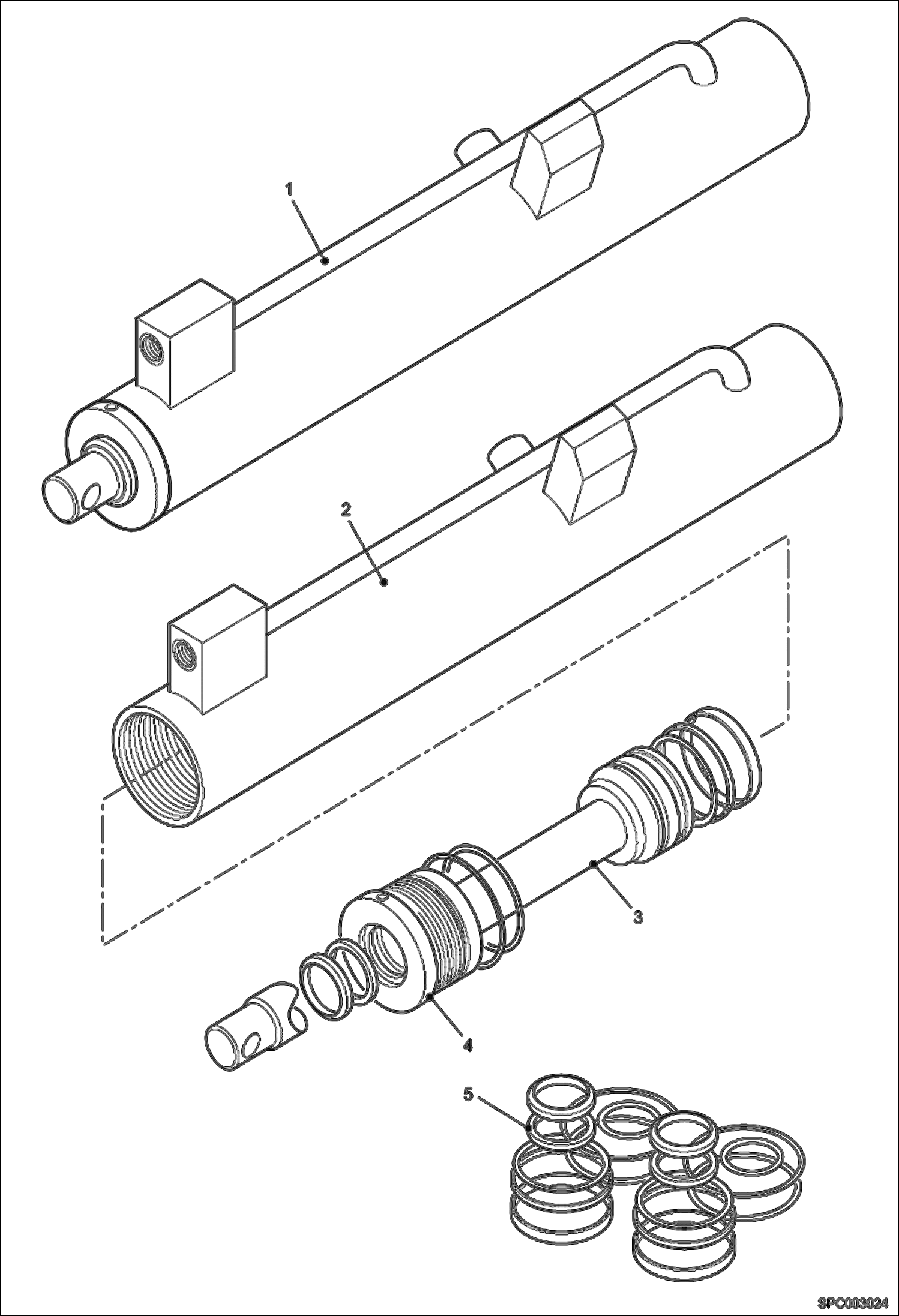

Запчасти Bobcat T3571 QUICK ATTACH CYLINDER (Vendor Partnumber 92420.9) HYDRAULIC SYSTEM

1

CYLINDER, QUICK ATTACH See Illustration QUICK ATTACH CYLINDER/ SPC003178 NAP - Ref. 2-5 - Vendor Partnumber 92420.9

2

CYLINDER BODY NAP - Order Ref. 1

3

92645.1

Spindle

4

66392.2

Nut

5

66362.5

Seal kit
