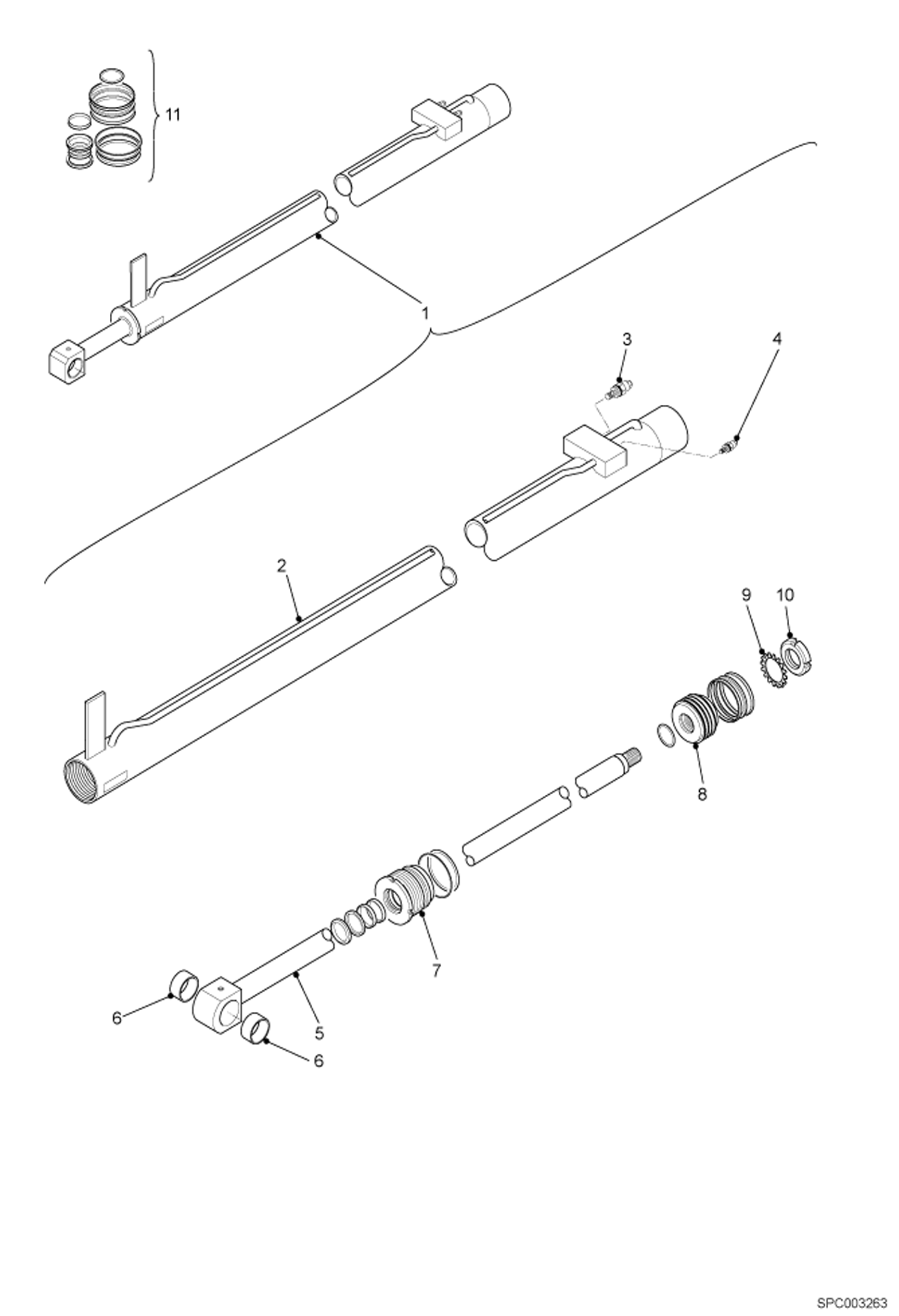

Запчасти Bobcat T3571 TELESCOPE CYLINDER (Vendor Partnumber 6924515) HYDRAULIC SYSTEM

1

CYLINDER ASSY, TELESCOPE See Illustration TELESCOPE CYLINDER/ EM8430 NAP - Ref. 2-10 - Order 6927069 Was 6924515 - A

2

6909951

RAM CYLINDER

3

6924520

VALVE Was 7003343 - A

4

7009743

VALVE Was 7003342 - A

5

93972.8

Piston Rod Was 7003339 - A

6

7003344

BEARING BUSH

7

6909952

RAM HEAD

8

6909954

PISTON

9

7003341

WASHER

10

7003340

NUT

11

6909947

SET OF SEALS
