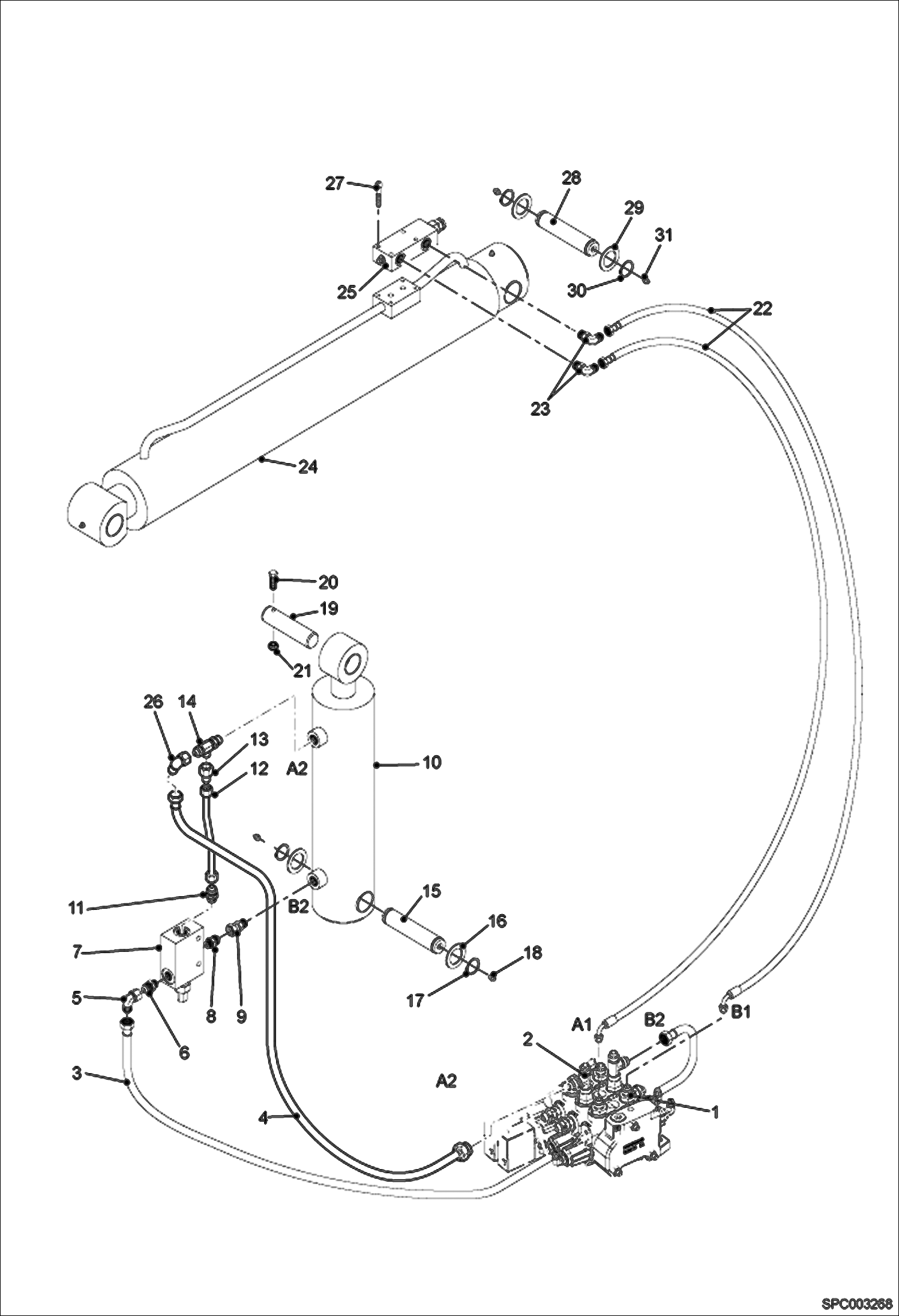

Запчасти Bobcat T3571 LIFT & COMPENSATION CYLINDER INSTALLATION HYDRAULIC SYSTEM

1

014375-02C

UNION 7/8 JIC 3/4 BSPP

2

008372-28F

UNION

3

83933.2

Hose

4

6909253

HOSE TJ 7/8 12,7 TJ45 7/8 L1070

5

010370-90W

ELBOW PIECE

6

100375-39T

UNION 7/8 JIC 3/8 BSP

7

7168745

VALVE, SELF LEVELLING Was 98235.5 - C

8

100375-39T

UNION 7/8 JIC 3/8 BSP

9

7225156

FITTING, HYD Was 022375-06W - A

10

90798.0

Compensation cyl assy

11

65614.0

Union

12

98275.1

Hydraulic Pipe

13

65641.3

Adapter

14

100372-08J

T PIECE

15

6910300

ROD

16

009456-02D

WASHER

17

5JM50

CIRCLIPS Was 31825.3 - B

18

01775.6

Grease Nipple

19

77425.7

Locating Pin

20

7CM10100

SCREW HEX Was 65397.2 - A

21

100345-09A

NUT

22

96788.5

Hose Assembly

23

65285.9

Elbow

24

90774.1

Lift Cylinder Assembly

25

6918850

VALVE, SAFETY See Illustration SAFETY VALVE/ EM6303 Was 6909363

26

65658.7

EQUERRE

27

88299.3

Screw

28

6910301

ROD

29

009456-02D

WASHER

30

5JM50

CIRCLIPS Was 31825.3 - B

31

01775.6

Grease Nipple
