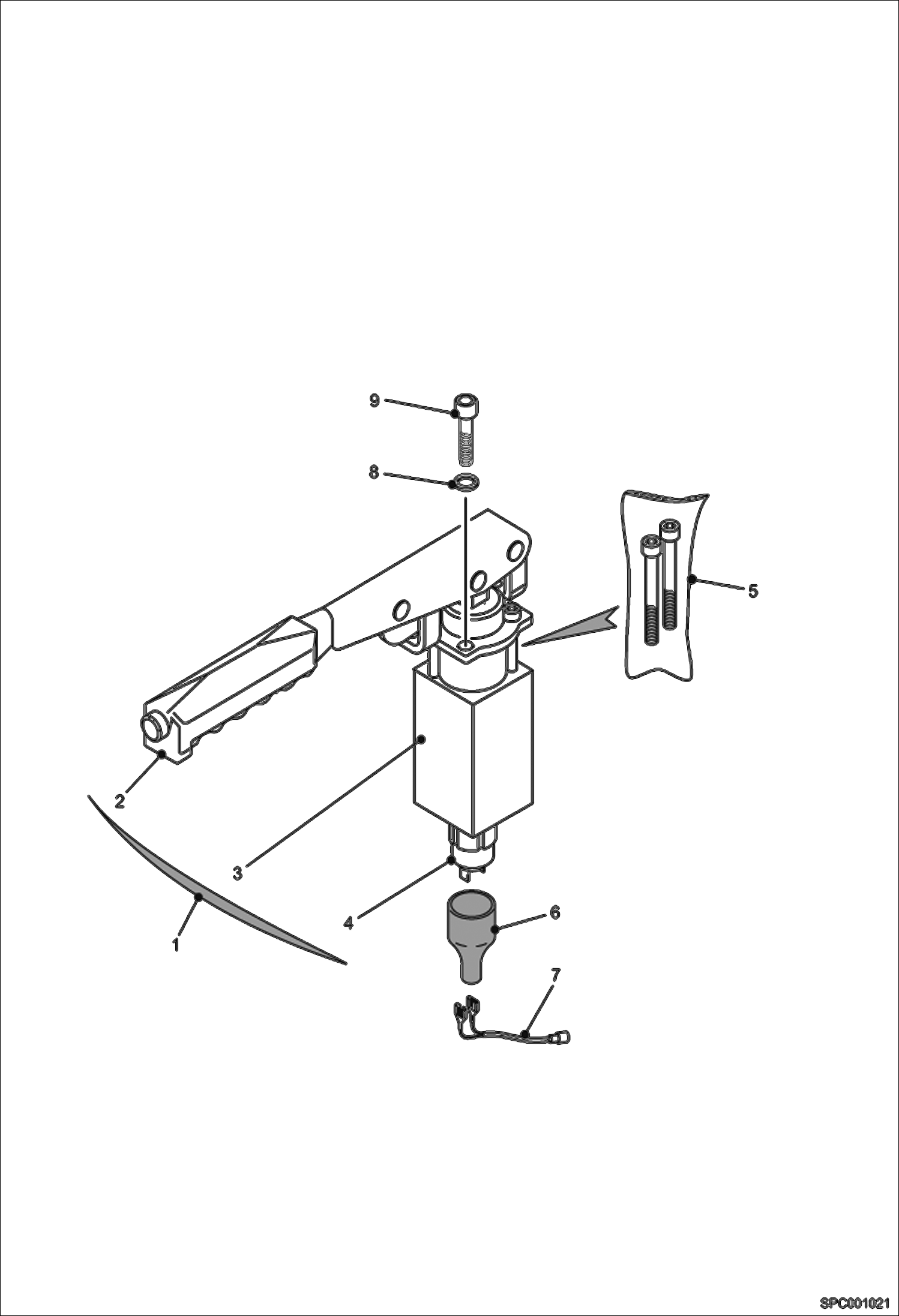

Запчасти Bobcat T3571 PARKING BRAKE LEVER (S/N 362811001 - 11135, 362911001 - 11015) MAIN FRAME

1

LEVER ASSY NAP - Order Ref. 2-4 Was 6909330

2

93233.5

Lever and grip

3

LEVER BODY NAP Was 93232.7

4

93115.4

Pressure Switch

5

93227.7

Screw

6

6910557

DEUTSCH CONNECTOR W/Ref. 6-7

7

CONNECTION NSS

8

13416.3

Washer

9

10167.5

Screw
