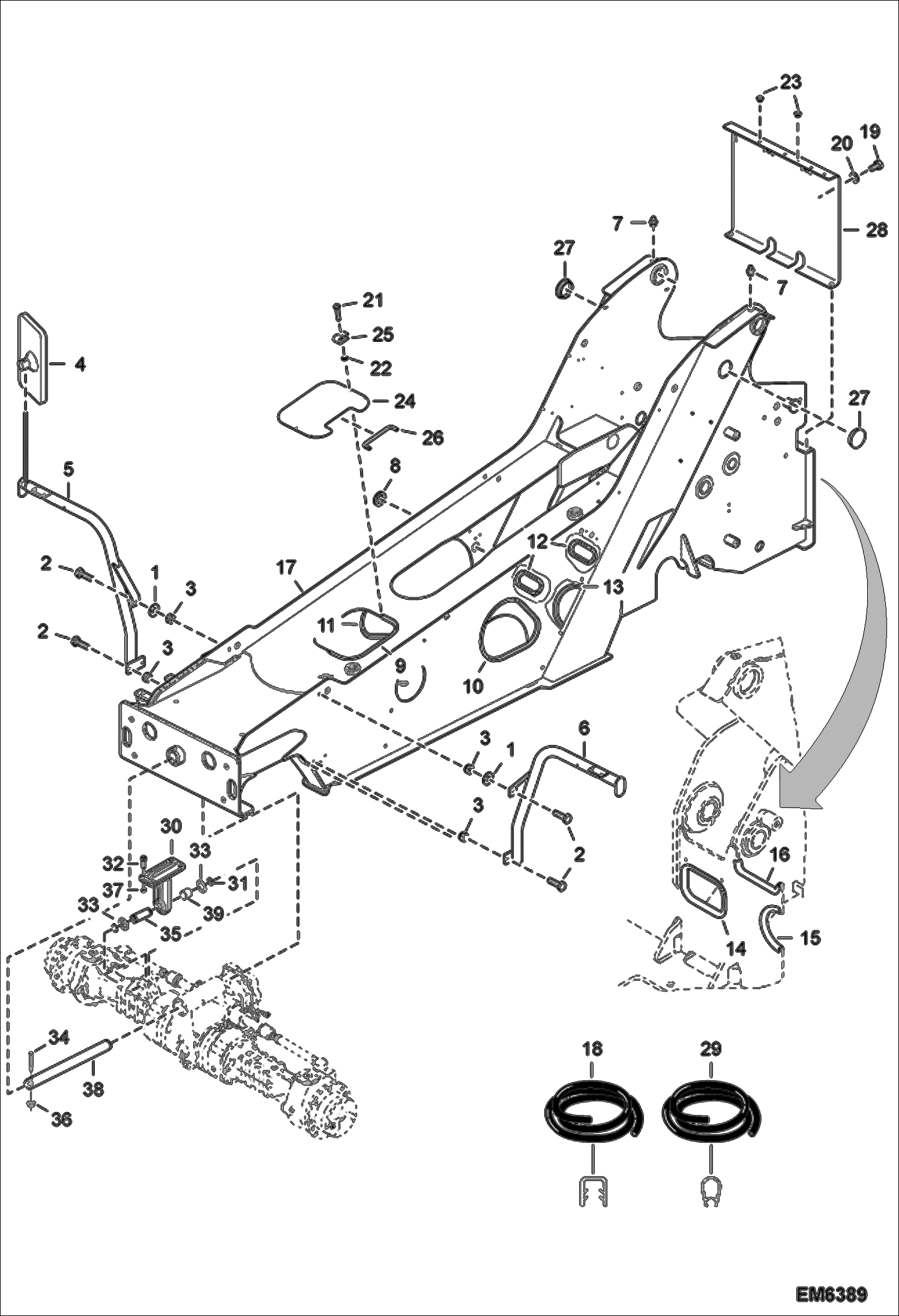

Запчасти Bobcat T3571 FRAME (S/N A8HF13000 & Above, A8H613000 & Above) MAIN FRAME

1

000350-21R

WASHER

2

01607.1

Screw

3

100345-09A

NUT

4

100432-51C

MIRROR, SIDE REAR

5

6934741-B

LIGHT SUPPORT, RH Was 6928166 - B

6

6934740-B

LIGHT SUPPORT, LH Was 6928167 - B

7

01775.6

Grease Nipple

8

79288.7

Rubber mounting

9

TRIM, EDGE NAP - 500 mm (19.69'') long - Order Ref. 18

10

TRIM, EDGE NAP - 400 mm (15.75'') long - Order Ref. 18

11

TRIM, EDGE NAP - 610 mm (24.02'') long - Order Ref. 18

12

TRIM, EDGE NAP - 365 mm (14.37'') long - Order Ref. 18

13

TRIM, EDGE NAP - 310 mm (12.21'') long - Order Ref. 18

14

TRIM, EDGE NAP - 445 mm (17.52'') long - Order Ref. 18

15

TRIM, EDGE NAP - 190 mm (7.49'') long - Order Ref. 18

16

TRIM, EDGE NAP - 190 mm (7.49'') long - Order Ref. 18

17

6921135

FRAME

18

6910276

BEAD L610 bulk - sold per foot

19

01604.8

Screw

20

01719.4

Washer

21

010338-02X

SCREW

22

13415.5

Washer

23

57702.3

Plug

24

79123.6

Plate

25

79124.4

Nut

26

TRIM, EDGE NAP - 340 mm (13.39'') long - Order Ref. 29

27

6909712

HYDRAULIC OPERATION

28

6932570

REAR COVER

29

79129.3

Seal bulk - sold per foot

30

6915401

CONNECTING ROD W/Ref. 39

31

06734.8

Retaining Ring

32

53925.4

Screw

33

58880.6

Washer

34

7CM10100

SCREW HEX Was 65397.2 - A

35

67166.9

Spindle

36

100345-09A

NUT

37

100345-16H

NUT

38

6909147

SPINDLE

39

77192.3

Bush
