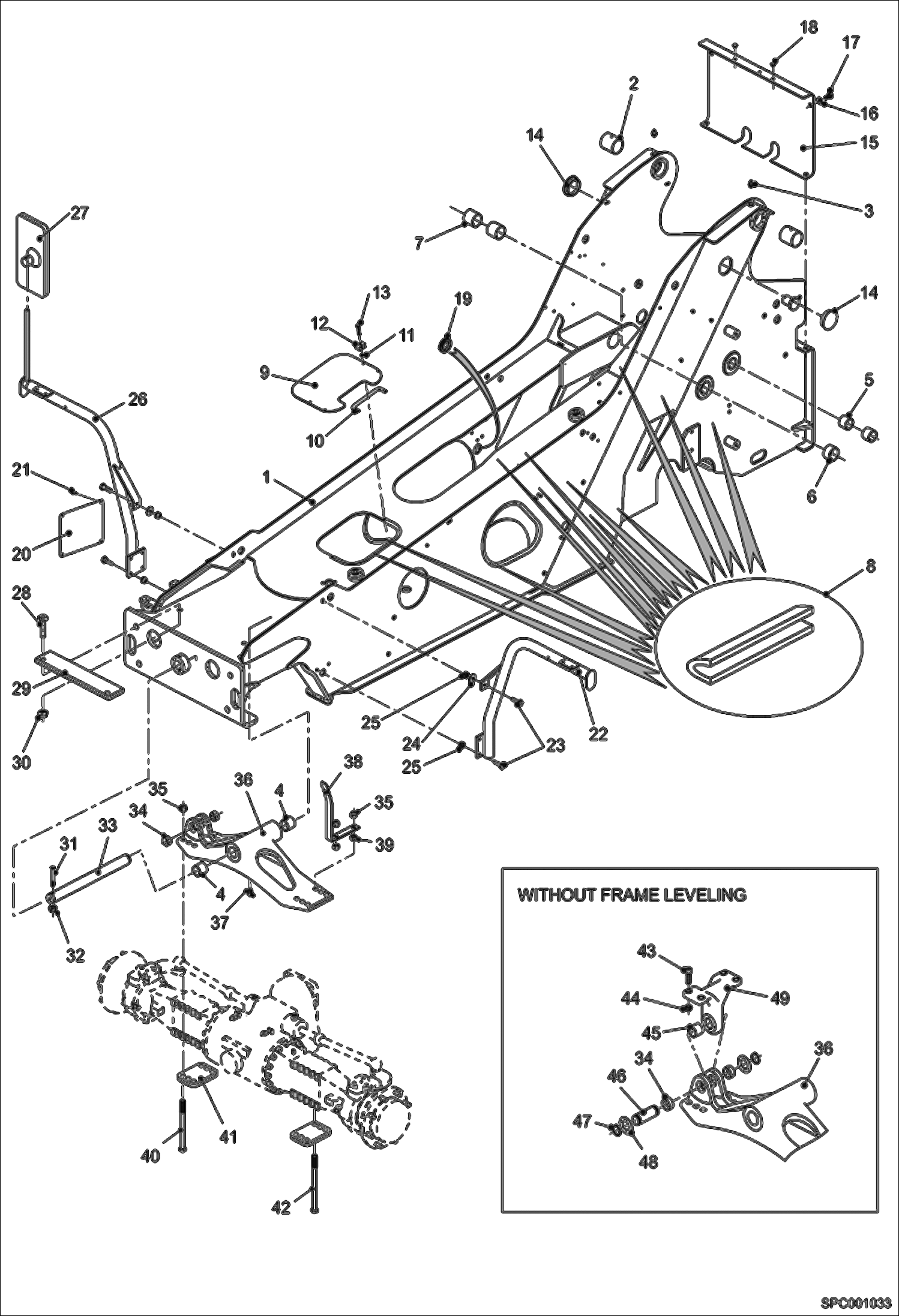

Запчасти Bobcat T3571 FRAME MAIN FRAME

1

6915048

FRAME Was 6914714 - A

2

7213359

BEARING, SWING Was 77380.4 - A

3

01775.6

Grease Nipple

4

70811.5

Bush

5

6909439

BUSHING

6

7213158

LINK, BEARING Optional Was 77261.6 - A

7

70811.5

Bush

8

80919.4

Seal

9

79123.6

Plate

10

79129.3

Seal

11

13415.5

Washer

12

79124.4

Nut

13

010338-02X

SCREW

14

6909712

HYDRAULIC OPERATION

15

6908248

COVER

16

01719.4

Washer

17

01604.8

Screw

18

57702.3

Plug

19

79288.7

Rubber mounting

20

PLATE, SERIAL NO. NAP

21

43824.2

Rivet

22

92088.4

Bracket, LH

23

01607.1

Screw

24

000350-21R

WASHER

25

100345-09A

NUT

26

92085.0

Support

27

100432-51C

MIRROR, SIDE REAR Was 6922760 - A

28

1CM1040

BOLT Was 01608.9 - B

29

6913019

ARM ABUTMENT

30

100345-09A

NUT

31

7CM10100

SCREW HEX Was 65397.2 - A

32

100345-09A

NUT

33

6909147

SPINDLE

34

32974.8

Bush

35

100345-20M

NUT

36

6911386

SUPPORT

37

01782.2

Grease nipple

38

6913529

INDICATOR

39

01674.1

Nut

40

92099.1

Screw

41

101241-25J

AXLE FIX PLATE

42

48500.3

Screw

42

92099.1

Screw

43

53925.4

Screw

44

100345-16H

NUT

45

77192.3

Bush

46

67166.9

Spindle

47

06734.8

Retaining Ring

48

58880.6

Washer

49

6913153

CONNECTING ROD
