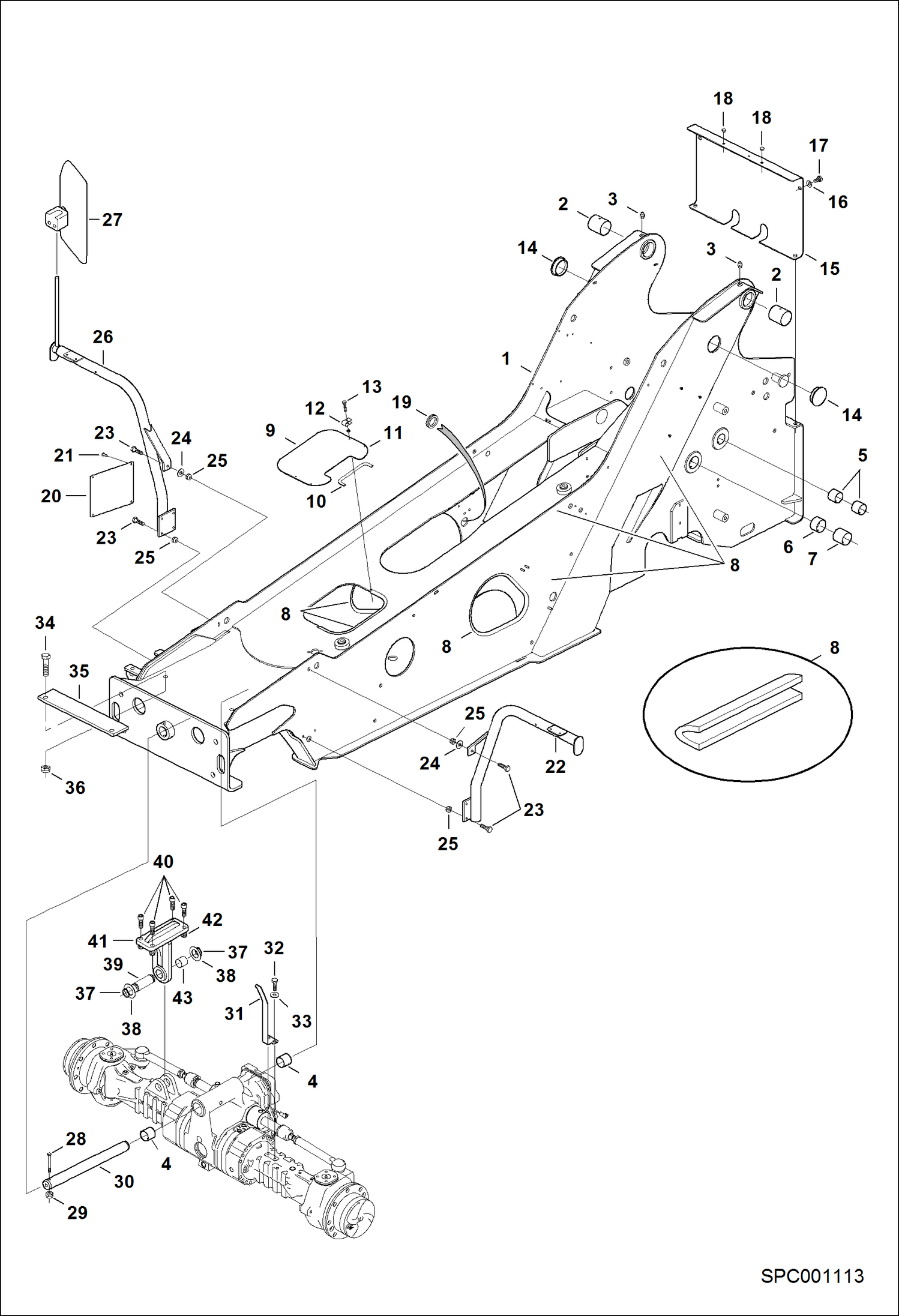

Запчасти Bobcat T3571 FRAME MAIN FRAME

1

6918216

FRAME Was 6917763 - A

2

7213359

BEARING, SWING Was 77380.4 - A

3

01775.6

Grease Nipple

4

70811.5

Bush

5

6909439

BUSHING

6

7213158

LINK, BEARING Was 77261.6 - A

7

70811.5

Bush

8

80919.4

Seal

9

79123.6

Plate

10

79129.3

Seal

11

13415.5

Washer

12

79124.4

Nut

13

010338-02X

SCREW

14

6909712

HYDRAULIC OPERATION

15

6908248

COVER

16

01719.4

Washer

17

01604.8

Screw

18

57702.3

Plug

19

79288.7

Rubber mounting

20

PLATE, SERIAL NO. NAP

21

6916450

RIVET

22

6915265

L.H. LIGHT SUPPORT

23

01607.1

Screw

24

000350-21R

WASHER

25

100345-09A

NUT

26

6915264

R.H. LIGHT SUPPORT

27

100432-51C

MIRROR, SIDE REAR Was 6922760 - A

28

7CM10100

SCREW HEX Was 65397.2 - A

29

100345-09A

NUT

30

6909147

SPINDLE

31

6915406

INDICATOR

32

01610.5

Screw

33

89517.7

Washer

34

1CM1040

BOLT Was 01608.9 - B

35

6913019

ARM ABUTMENT

36

100345-09A

NUT

37

06734.8

Retaining Ring

38

58880.6

Washer

39

67166.9

Spindle

40

53925.4

Screw

41

6915401

CONNECTING ROD W/Ref. 43

42

100345-16H

NUT

43

77192.3

Bush
