Запчасти Bobcat T35120SL HOUSING - FRONT AXLE DRIVE SYSTEM

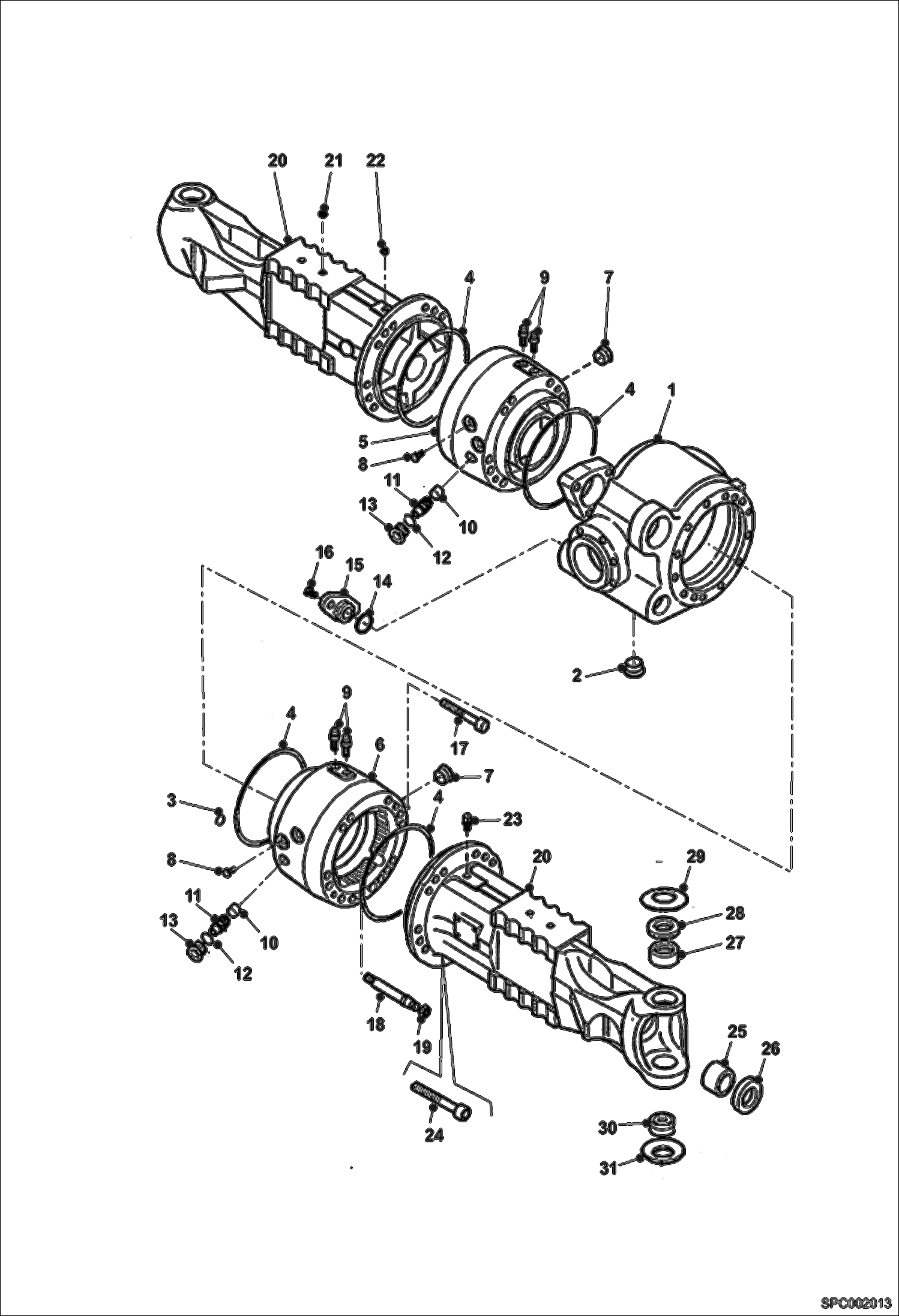

Схема запчастей Bobcat T35120SL - HOUSING - FRONT AXLE DRIVE SYSTEM

Артикул

Название

Примечание

Количество

1

89955.9

Housing

2

100374-32C

PLUG

3

93084.2

O-ring

4

75710.4

O-ring

5

89905.4

Support

6

89916.1

Support

7

100374-32C

PLUG

8

64842.8

Plug

9

63238.0

Breather

10

89917.9

PIN, CDS SLEEVE

11

89908.8

Valve

12

89915.3

O-ring

13

89913.8

Bushing

14

75709.6

O-ring

15

75708.8

Cover Plate

16

4CM825

BOLT Was 01597.4 - B

17

75716.1

Screw

18

89914.6

Stud

19

89912.0

Nut

20

98661.2

Housing

21

92608.9

Plug

22

75838.3

Grease Nipple Was 100458-02A

23

100505-24H

BREATHER

24

75715.3

Screw

25

100288-63N

BUSHING

26

98660.4

Bushing

27

101288-35D

BUSHING

28

6912908

BUSH

29

66011.8

Washer

30

100400-19P

BUSHING

31

66010.0

Washer

Выбрано товаров: 31
