Запчасти Bobcat T35120SL REAR AUXILIARY HYDRAULICS (S/N A8GV13000 - 14999, A8GJ13000 - 14999) ACCESSORIES & OPTIONS

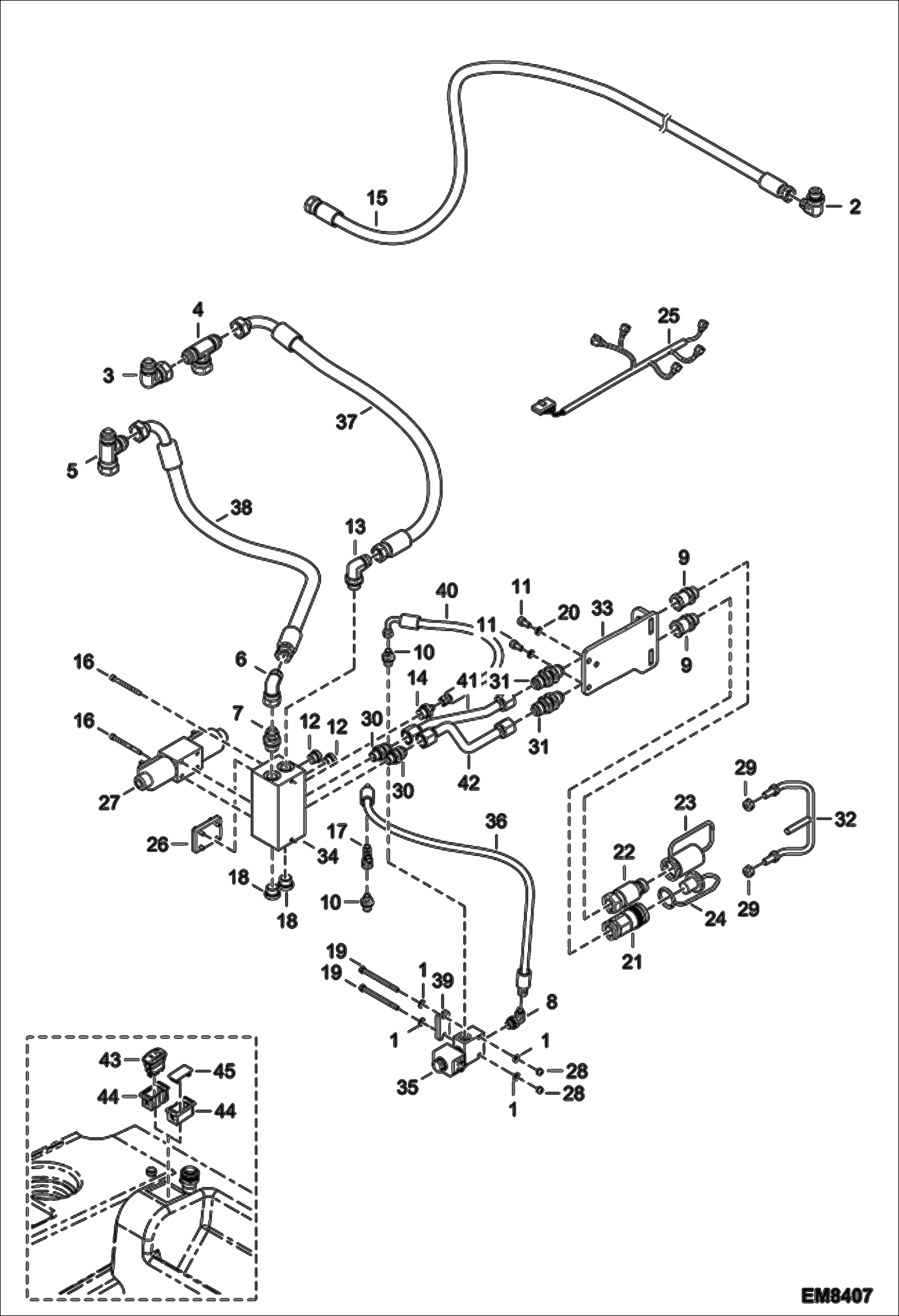

Схема запчастей Bobcat T35120SL - REAR AUXILIARY HYDRAULICS (S/N A8GV13000 - 14999, A8GJ13000 - 14999) ACCESSORIES & OPTIONS

Артикул

Название

Примечание

Количество

1

000350-01U

WASHER

2

008372-01B

ELBOW PIECE

3

008372-14Q

ELBOW

4

008372-21X

TEE

5

008372-34M

UNION

6

010370-90W

ELBOW PIECE

7

014375-30H

UNION

8

7186826

COUPLER, QUICK FEMALE Was 95993.2 - A

9

7225156

FITTING, HYD Was 022375-06W - A

10

022375-28V

UNION

11

6GM816

SCREW Was 29649.1 - A

12

56029.2

Plug

13

65285.9

Elbow

14

65614.0

Union

15

65715.5

Hose

16

68566.9

Screw

17

69485.1

T- union

18

78743.2

Drain plug

19

80643.0

Screw

20

7225260

WASHER Was 89516.9 - A

21

7186826

COUPLER, QUICK FEMALE Was 95993.2 - A

22

7225159

COUPLER, HYD Was 95994.0 - A

23

7225160

CAP, COUPLER Was 96513.7 - A

24

7225161

CAP, COUPLER Was 96514.5 - A

25

96589.7

Wire harness

26

98353.6

Plate

27

98360.1

Union

28

100345-06W

NUT

29

100345-09A

NUT

30

100375-39T

UNION 7/8 JIC 3/8 BSP

31

100375-52H

UNION

32

6910517

PROTECTOR

33

6910523

SUPPORT

34

6911079

HYDRAULIC BLOCK

35

6911845

SOLENOID 2-2

36

6912226

FLEXIBLE

37

6913675

FLEXIBLE

38

6913675

FLEXIBLE

39

6915305

SPACER

40

6916079

HOSE

41

6922003

HYDRAULIC TUBE

42

6922004

HYDRAULIC TUBE

43

6927725

SWITCH, REAR HYD

44

7178511

SOCKET, END

45

7178513

CAP, SOCKET

Выбрано товаров: 45
