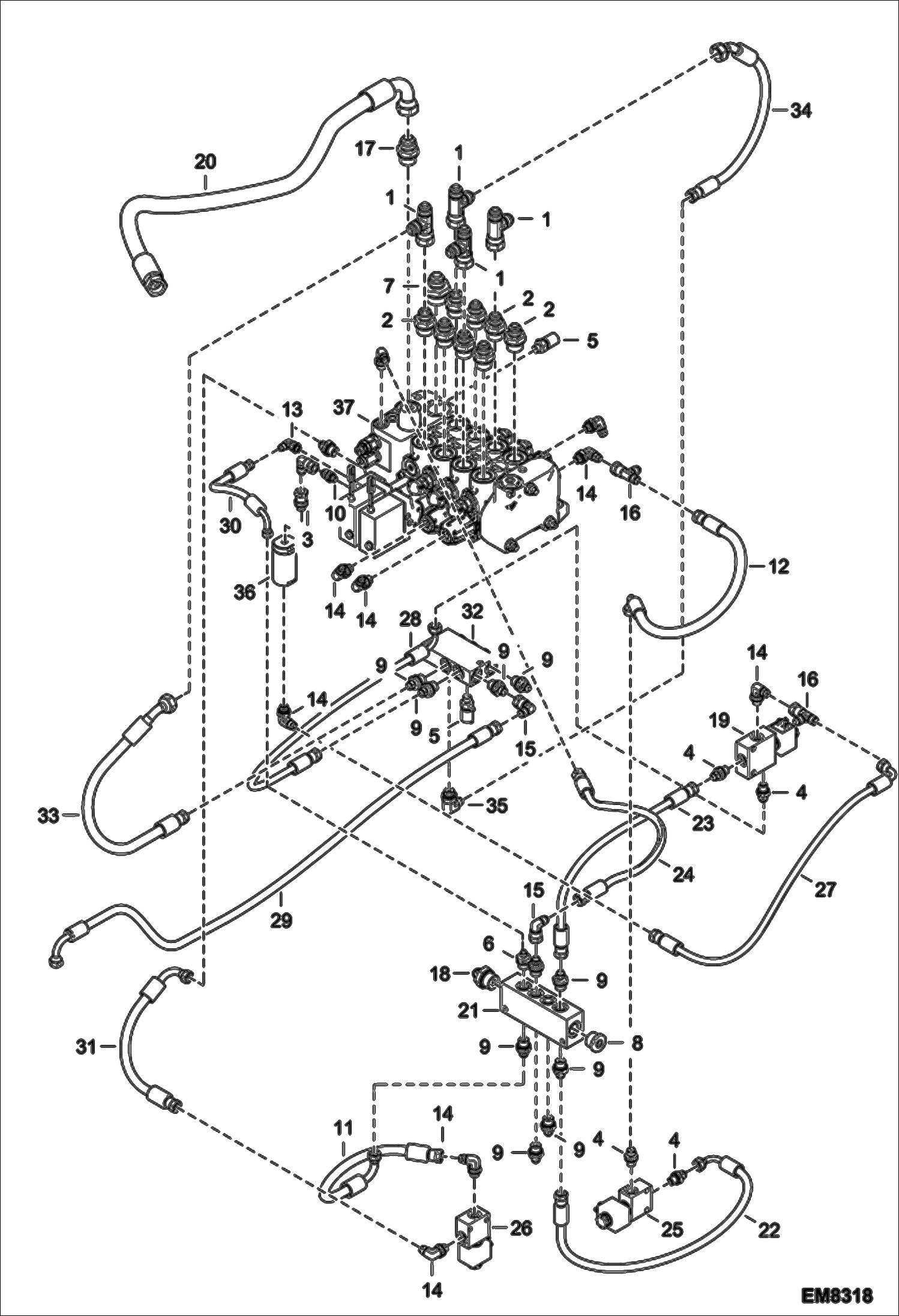

Запчасти Bobcat T35120SL HYDRAULIC CONTROL VALVE INSTALLATION (S/N A8GJ15000 & Above, A8GV15000 & Above) HYDRAULIC SYSTEM

1

008372-28F

UNION

2

014375-02C

UNION 7/8 JIC 3/4 BSPP

3

022375-30X

UNION

4

022375-31Z

UNION

5

54367.8

PORT, PRESSURE TEST

6

65614.0

Union

7

68609.7

Union

8

69187.3

Plug

9

77013.1

Adapter

10

82181.9

Union

11

85283.0

Hose

12

85283.0

Hose

13

85955.3

Elbow

14

100370-18C

ELBOW PIECE

15

100370-29P

ELBOW PIECE

16

100372-06G

UNION

17

100375-40U

UNION

18

100375-59Q

UNION 3/4 JIC 3/4 BSP

19

6910208

VALVE 3/2 CE12V

20

6910390

HOSE

21

6910822

MANIFOLD , RETURN

22

6911143

HOSE

23

6911817

HOSE, HYD

24

6911817

HOSE, HYD

25

6911845

SOLENOID 2-2

26

6911845

SOLENOID 2-2

27

6913655

HOSE

28

6913655

HOSE

29

6913656

HOSE

30

6913658

HOSE

31

6914033

HOSE

32

6917692

HYDRAULIC BLOK

33

6918017

HOSE

34

6918017

HOSE

35

6918652

ELBOW UNION

36

6919913

OIL FILTER

37

6927618

MAIN VALVE See Illustration HYDRAULIC CONTROL VALVE/ EM8677
