Запчасти Bobcat T35120SL AIR CONDITIONING (Cab Side) (S/N A8GJ13000 & Above, A8GV13000 & Above) MAIN FRAME

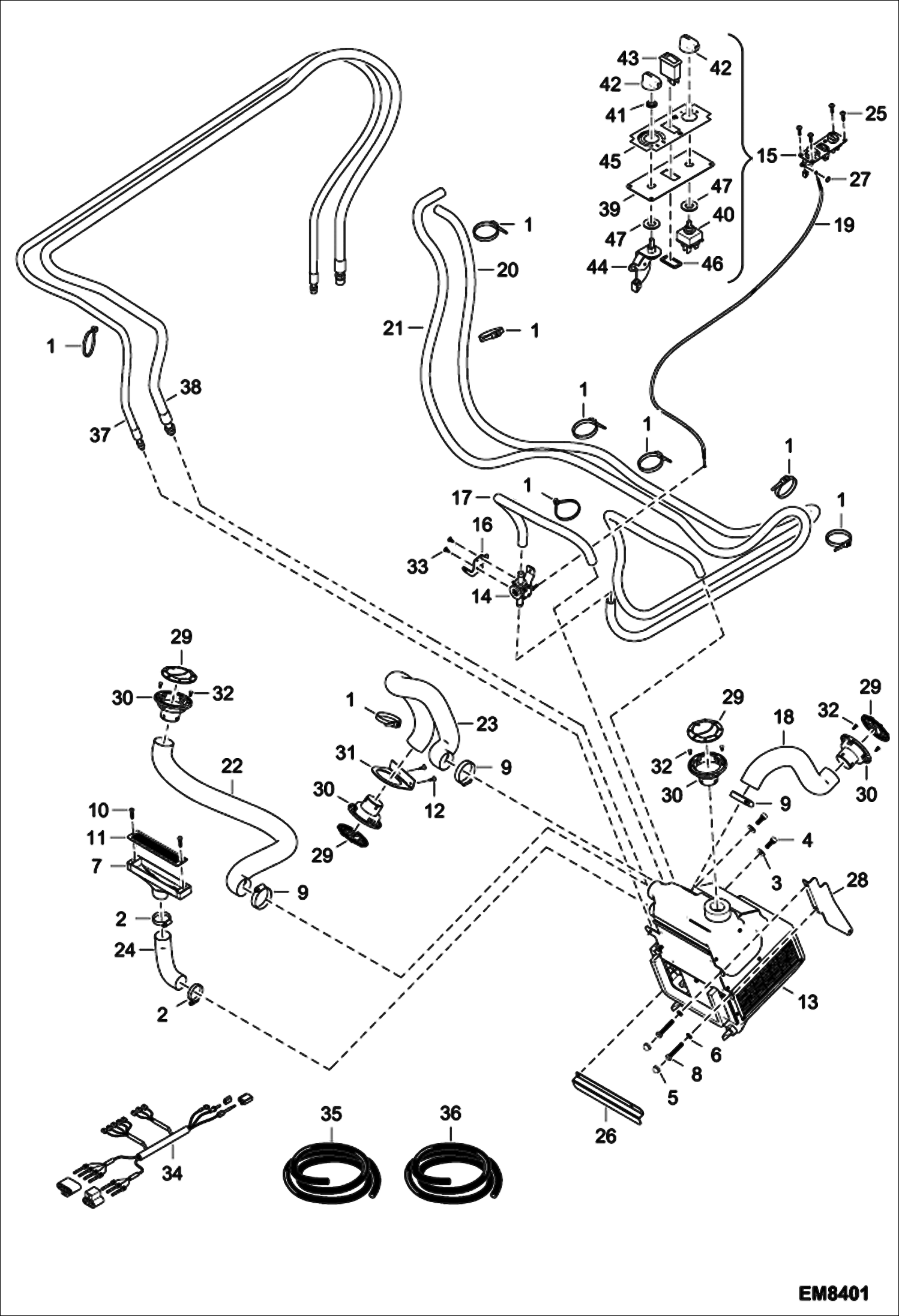

Схема запчастей Bobcat T35120SL - AIR CONDITIONING (Cab Side) (S/N A8GJ13000 & Above, A8GV13000 & Above) MAIN FRAME

Артикул

Название

Примечание

Количество

1

6624289

STRAP, TIE

2

42HS20

CLAMP, HOSE Was 01280.7 - A

3

01717.8

Washer

4

15354.4

Screw

5

63332.1

Cap

6

94574.1

Washer

7

7217216

LOUVER Was 97208.3 - A

8

100338-23F

SCREW

9

42HS30

CLAMP, HOSE Was 100369-80K - A

10

7235000

SCREW Was 6911846 - A

11

7217218

LOUVER Was 6924354 - A

12

7228975

SCREW Was 6925206 - A

13

6927581

HVAC BLOC See Illustration AIR CONDITIONING/ EM8419

14

7217229

HEATER CONTROL VALVE Was 7010686 - A

15

7217230

PANEL, CONTROL Ref. 39-47 Was 6927705 - A

16

6927707

BRACKET HEATER

16

6935035

SUPPORT HEATER VALVE CA CONTROL Was 6927707 - A

17

HOSE NAP - Order 0,67 m of 6910694 Was 6927708 - D

18

HOSE, HYD NAP- 500 mm (19.69'') long - Order Ref. 36

19

7217231

CABLE Was 6927819 - A

20

6927912

HOSE

21

6927923

HOSE

22

HOSE, HYD NAP- 900 mm (35.44'') long - Order Ref. 36

23

HOSE, HYD NAP- 900 mm (35.44'') long - Order Ref. 36

24

HOSE, HYD NAP- 250 mm (9.85'') long - Order Ref. 37

25

6927943

SCREW

26

6927945

CAP

27

7229422

WASHER Was 6928216 - A

28

6932248

BRACKET

29

7217217

LOUVER Was 6932754 - A

30

7217215

LOUVER Was 6932755 - A

31

6932910

SUPPORT, LOUVER

31

6935361

SUPPORT LOUVER INF

32

57G606

SCREW

33

58G806

SCREW

34

6932825

HARNESS, HVAC CABIN

35

7231136

HOSE AIR D50 PVC /METER bulk - sold per foot - Was 6927756 - A

36

7231137

HOSE AIR D40 PVC /METER bulk - sold per foot - Was 6927757 - A

37

6927645

HOSE

37

7009976

O-RING

38

6927647

HOSE

38

7009978

O-RING

39

7015437

CONTROL PLATE

40

6675176

SWITCH

41

7015436

JAM NUT

42

6675177

KNOB

43

7169112

SWITCH, ROCKER A/C Was 6719176 - A

44

6676622

CONTROL

45

7015438

OVERPLAY

46

7015439

PANEL GASKET

47

7010693

WASHER
