Запчасти Bobcat T35120SL SEAT & SUSPENSION (#6932751) (S/N A8GJ13000 & Above, A8GV13000 & Above) MAIN FRAME

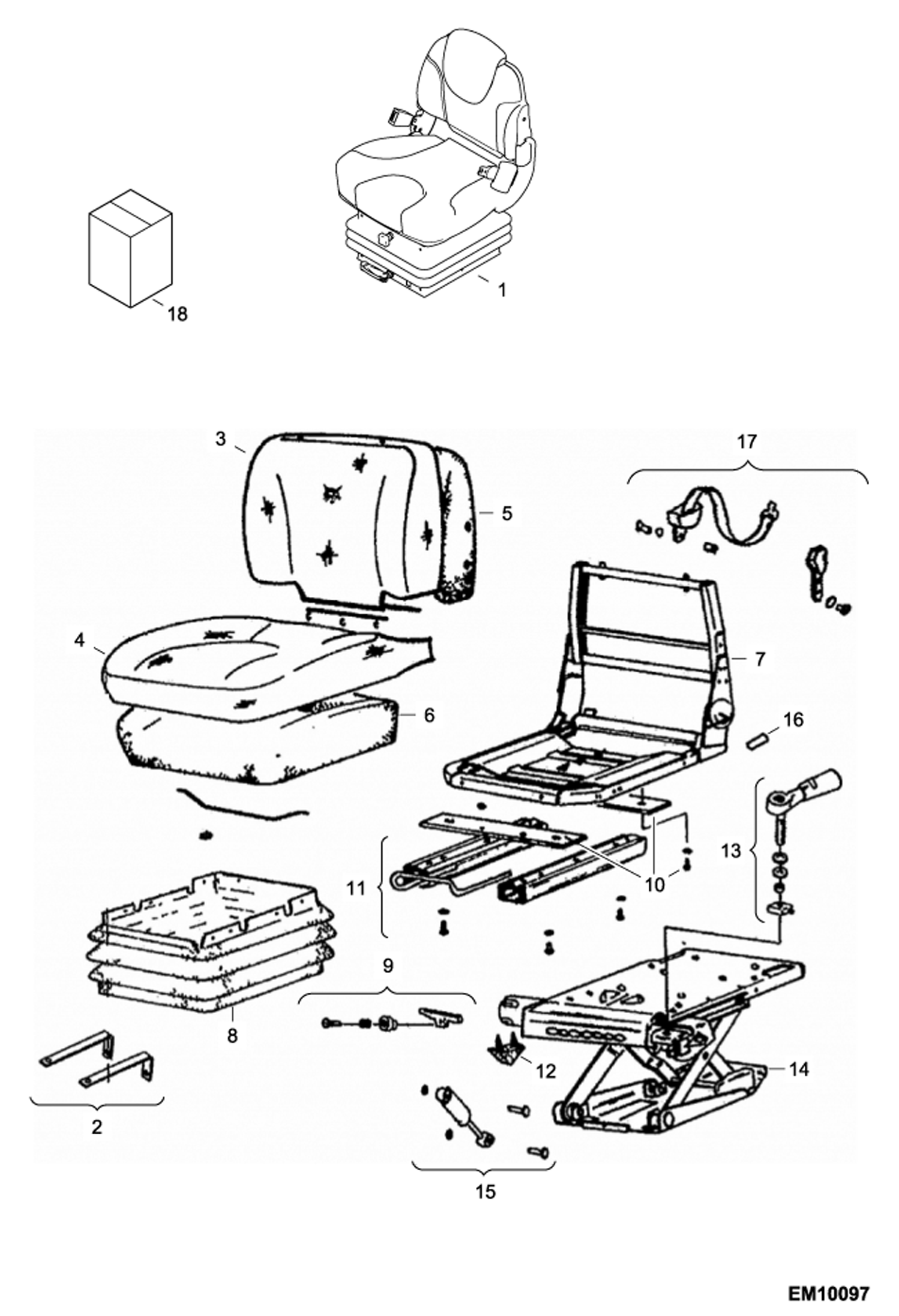

Схема запчастей Bobcat T35120SL - SEAT & SUSPENSION (#6932751) (S/N A8GJ13000 & Above, A8GV13000 & Above) MAIN FRAME

Артикул

Название

Примечание

Количество

1

SEAT ASSY See Illustration SEAT & SUSPENSION/ EM10095 NAP - Order #7181512 or #7218933 - Ref. 2-18 Was 6932751 - A

2

7021079

STRAP, SUSPENSION

3

7021064

COVER, BACK

4

7021065

COVER, SEAT

5

7021066

FOAM, BACK

6

7021067

FOAM, SEAT

7

7021068

FRAME, SEAT

8

7021069

COVER, SUSPENSION

9

7021070

ADJUSTER, WEIGHT

10

7021071

STRAP, CROSS

11

7021072

ADJUSTEMENT, FORW & AFT

12

7021073

BUMPSTOP

13

7021074

ADJUSTER, HEIGHT

14

7021075

SUSPENSION

15

7021076

DAMPER

16

7021077

KNOB

17

7021078

SEATBELT

18

7021063

KIT, UPPER ASSY

Выбрано товаров: 18
