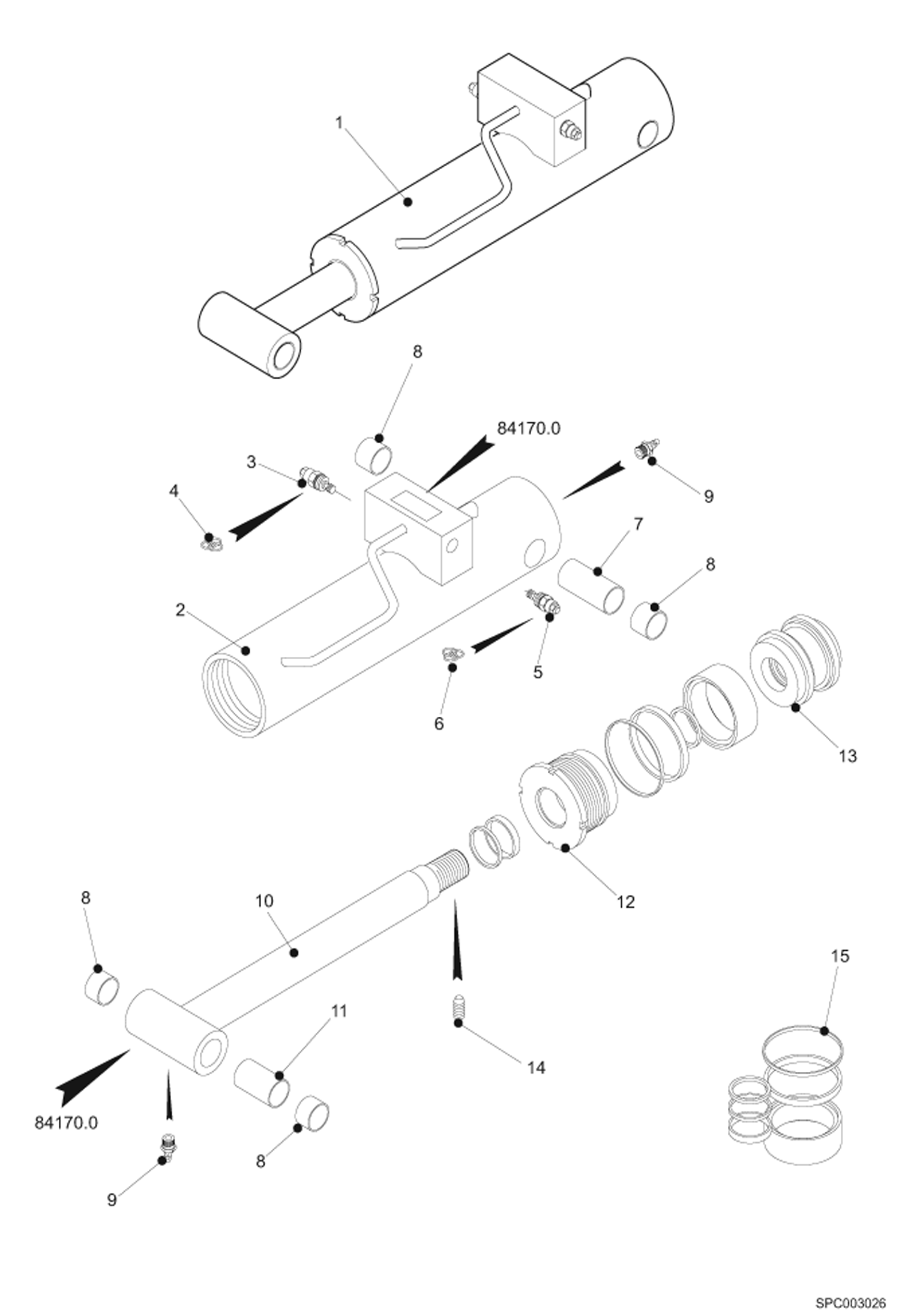

Запчасти Bobcat T35120SL STABILIZER CYLINDER (Vendor Partnumber 84170.0) HYDRAULIC SYSTEM

1

CYLINDER ASSY See Illustration STABILIZER CYLINDER/ SPC003027 NAP - W/Ref. 2-15 - Vendor Partnumber 84170.0

2

6912074

RAM CYLINDER Was 97034.3 - A

3

100377-32D

VALVE

4

100496-04H

SEAL KIT

5

81205.7

Valve

6

100496-04H

SEAL KIT Use W/Ref. 5 (81205.7 lock valve)

7

97035.0

Spacer

8

75168.5

Bush

9

81573.8

Grease nipple

10

93994.2

Rod

11

97036.8

Spacer

12

81473.1

Cylinder head

13

7030198

PISTON Was 97033.5 - A

14

75633-8

SCREW

15

7030201

KIT, SEAL Was 66419.3 - B
